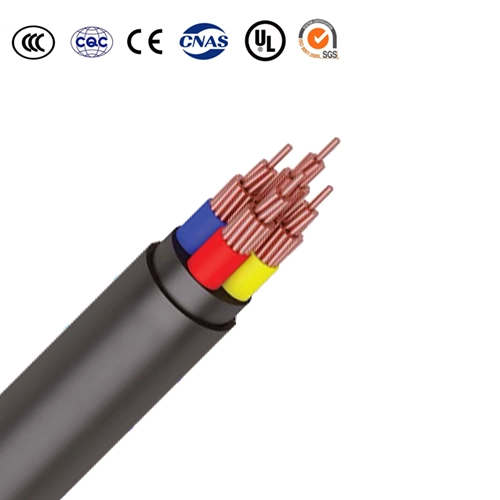

IEC-BSStandardXLPEInsulatedLVPowerCable2

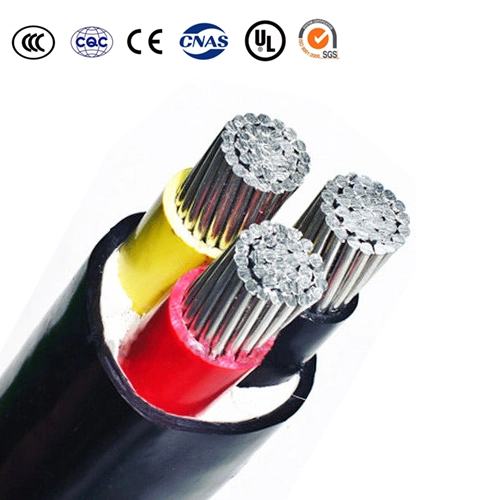

IEC-BSStandardXLPEInsulatedLVPowerCable3

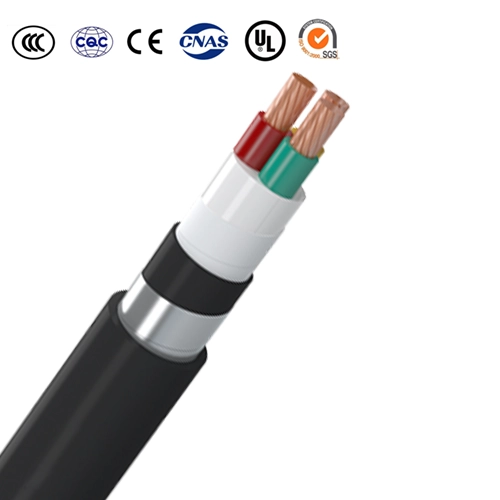

XLPE Insulation Unarmoured Power Cable

600/1000V XLPE Insulation Unarmoured Power Cables are used for power supply in low voltage installation systems,

Suitable for installation indoors and outdoors, in cable ducts, underground, in power stations and switchyards, local energy distribution, industrial plants, without risk of mechanical damage

Application

XLPE Insulation Unarmoured Power Cables are used for power supply in low voltage installation systems, they are suitable for installation indoors and outdoors, in cable ducts, underground, in power stations and switchyards, local energy distribution, industrial plants, without risk of mechanical damage.

Specifications

Outer sheath
The outer sheath shall be extruded PVC type ST1/ST2, polyethylene type ST3/ST7, halogen-free compound ST8, polychloroprene, chlorosulphonated polyethylene or similar polymers conforming to IEC 60502-1, type SE1 is also available on request.

Fire resistance of cable sheath
The cables are available with a special flame retardant PVC outer sheath to comply with the flame retardant test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, and halogen-free materials to comply with IEC60754-1/2 and IEC 60684-2.

Parameter

600/1000V XLPE Insulation Unarmoured Power Cable Single core(unarmoured)

Single core(unarmoured)
Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
1×1.5	1.4	0.7	1.4	5.6
1×2.5	1.8	0.7	1.4	6
1×4	2.3	0.7	1.4	6.5
1×6	2.8	0.7	1.4	7
1×10	3.6	0.7	1.4	7.8
1×16	4.5	0.7	1.4	8.7
1×25	5.6	0.9	1.4	10.2
1×35	6.7	0.9	1.4	11.3
1×50	8	1	1.4	12.8
1×70	9.4	1.1	1.4	14.4
1×95	11	1.1	1.5	16.1
1×120	12.4	1.2	1.5	17.8
1×150	13.8	1.4	1.6	19.8
1×185	15.3	1.6	1.6	21.8
1×240	17.5	1.7	1.7	24.4
1×300	19.5	1.8	1.8	26.7
1×400	22.6	2	1.9	30.5
1×500	25.2	2.2	2	33.7
1×630	28.3	2.4	2.2	37.4
1×800	31.9	2.6	2.3	41.7
1×1000	35.7	2.8	2.4	46.2

600/1000V XLPE Insulation Unarmoured Power Cable Two cores(unarmoured)

Two cores(unarmoured)
Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
2×1.5	1.4	0.7	1.8	9.2
2×2.5	1.8	0.7	1.8	10
2×4	2.3	0.7	1.8	11
2×6	2.8	0.7	1.8	12
2×10	3.6	0.7	1.8	13.6
2×16	4.5	0.7	1.8	15.4
2×25	5.6	0.9	1.8	18.4
2×35	6.7	0.9	1.8	20.6
2×50	8	1	1.8	23.6
2×70	9.4	1.1	1.8	26.8
2×95	11	1.1	1.9	30.2
2×120	12.4	1.2	2	33.7
2×150	13.8	1.4	2.2	37.5
2×185	15.3	1.6	2.3	41.6
2×240	17.5	1.7	2.5	46.7
2×300	19.5	1.8	2.6	51.4
2×400	22.6	2	2.9	58.9

600/1000V XLPE Insulation Unarmoured Power Cable Three cores(unarmoured)

Three cores(unarmoured)
Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
3×1.5	1.4	0.7	1.8	9.6
3×2.5	1.8	0.7	1.8	10.5
3×4	2.3	0.7	1.8	11.6
3×6	2.8	0.7	1.8	12.6
3×10	3.6	0.7	1.8	14.4
3×16	4.5	0.7	1.8	16.3
3×25	5.6	0.9	1.8	19.5
3×35	6.7	0.9	1.8	21.9
3×50	8	1	1.8	25.1
3×70	9.4	1.1	1.9	28.7
3×95	11	1.1	2	32.4
3×120	12.4	1.2	2.1	36.1
3×150	13.8	1.4	2.3	40.3
3×185	15.3	1.6	2.4	44.6
3×240	17.5	1.7	2.6	50.2
3×300	19.5	1.8	2.7	55.2
3×400	22.6	2	3	63.3

600/1000V XLPE Insulation Unarmoured Power Cable Three cores+1(unarmoured)

Three cores+1(unarmoured)
Nominal Cross Section	Diameter of Conductor (Approx.)		Nominal Insulation Thickness		Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	(3)mm	(1)mm	(3)mm	(1)mm	mm	mm
3x 16/10	4.5	3.6	0.7	0.7	1.8	17.5
3x 25/16	5.6	4.5	0.9	0.7	1.8	21.2
3x 35/16	6.7	4.5	0.9	0.7	1.8	23.8
3x 50/25	8	5.6	1	0.9	1.8	27.5
3x 70/35	9.4	6.7	1.1	0.9	2	31.7
3x 95/50	11	8	1.1	1	2.1	35.8
3×120/70	12.4	9.4	1.2	1.1	2.3	39.9
3×150/70	13.8	9.4	1.4	1.1	2.4	44.6
3×185/95	15.3	11	1.6	1.1	2.6	49.5
3×240/120	17.5	12.4	1.7	1.2	2.8	55.7
3×300/150	19.5	13.8	1.8	1.4	3	61.4
3×400/185	22.6	15.3	2	1.6	3.2	70.4

600/1000V XLPE Insulation Unarmoured Power Cable Four cores(unarmoured)

Four cores(unarmoured)
Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
4×1.5	1.4	0.7	1.8	10.4
4×2.5	1.8	0.7	1.8	11.3
4×4	2.3	0.7	1.8	12.5
4×6	2.8	0.7	1.8	13.7
4×10	3.6	0.7	1.8	15.7
4×16	4.5	0.7	1.8	17.8
4×25	5.6	0.9	1.8	21.5
4×35	6.7	0.9	1.8	24.1
4×50	8	1	1.8	27.8
4×70	9.4	1.1	2	32
4×95	11	1.1	2.1	36.1
4×120	12.4	1.2	2.3	40.2
4×150	13.8	1.4	2.4	44.9
4×185	15.3	1.6	2.6	49.8
4×240	17.5	1.7	2.8	56
4×300	19.5	1.8	3	61.7
4×400	22.6	2	3.2	70.7

600/1000V XLPE Insulation Unarmoured Power Cable Multi-cores(unarmoured)

Multi-cores(unarmoured)
Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
5×1.5	1.4	0.7	1.8	11.2
7×1.5	1.4	0.7	1.8	12
10×1.5	1.4	0.7	1.8	14.8
12×1.5	1.4	0.7	1.8	15.2
14×1.5	1.4	0.7	1.8	16
19×1.5	1.4	0.7	1.8	17.6
21×1.5	1.4	0.7	1.8	18.4
24×1.5	1.4	0.7	1.8	20.4
30×1.5	1.4	0.7	1.8	21.6
40×1.5	1.4	0.7	1.8	26
48×1.5	1.4	0.7	1.8	26.4
61×1.5	1.4	0.7	1.9	29
5×2.5	1.8	0.7	1.8	12.2
7×2.5	1.8	0.7	1.8	13.2
10×2.5	1.8	0.7	1.8	16.4
12×2.5	1.8	0.7	1.8	16.9
14×2.5	1.8	0.7	1.8	17.7
19×2.5	1.8	0.7	1.8	19.6
21×2.5	1.8	0.7	1.8	20.6
24×2.5	1.8	0.7	1.8	22.8
30×2.5	1.8	0.7	1.8	24.1
40×2.5	1.8	0.7	1.9	29.4
48×2.5	1.8	0.7	1.9	29.9
61×2.5	1.8	0.7	2	32.8
