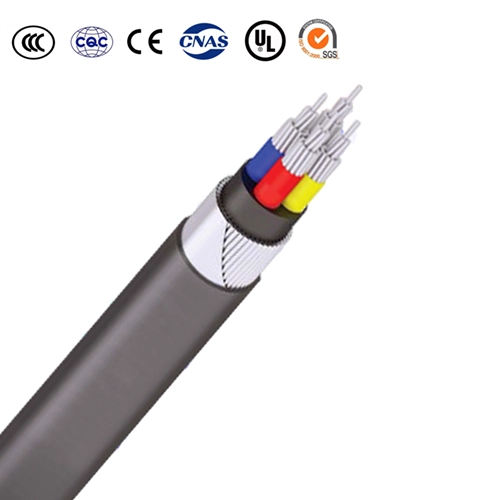

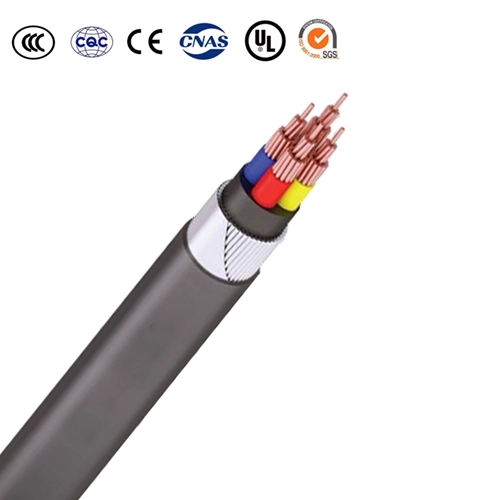

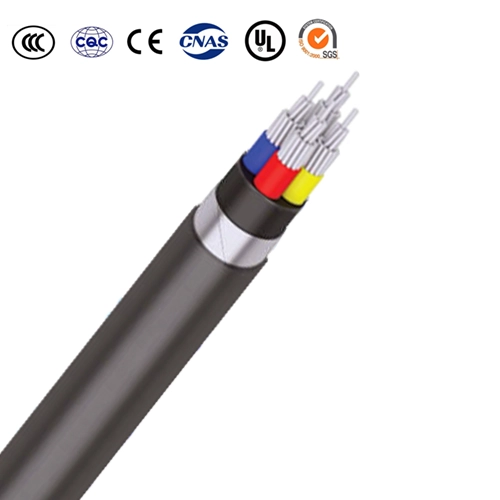

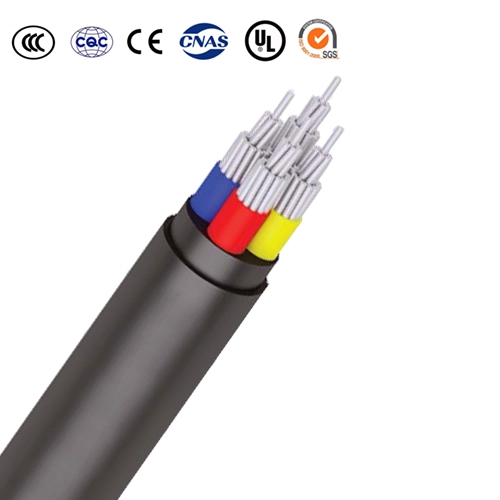

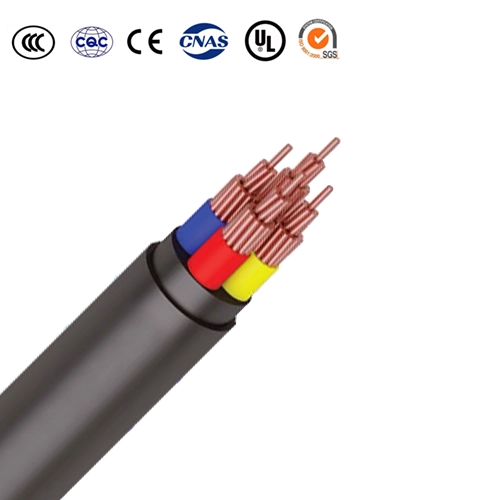

XLPE Insulation Armoured Power Cable

XLPE Insulation Armoured Power Cable

600/1000V XLPE Insulation Armoured Power Cable Single core( aluminum wire armoured)
600/1000V XLPE Insulation Armoured Power Cable Two cores(Galvanized steel wire armoured)
600/1000V XLPE Insulation Armoured Power Cable Three cores(Galvanized steel wire armoured)
600/1000V XLPE Insulation Armoured Power Cable Three cores+1(Galvanized steel wire armoured)
600/1000V XLPE Insulation Armoured Power Cable Four cores(Galvanized steel wire armoured)

Application

XLPE Insulation Armoured Power Cables are used for power supply in low voltage installation systems, they are suitable for installation indoors and outdoors, in cable ducts, underground, in power stations and switchyards, local energy distribution, industrial plants, without risk of mechanical damage.

Specifications

Assembly / Inner Covering
The inner covering may be extruded or lapped. For cables with round cores, lapped inner layers are permitted only if the interstices between the cores are substantially filled, except for cables with more than 5 cores. It is permitted to apply a suitable adhesive before applying the extruded inner covering. The material is compatible with the insulating material. The materials used for the inner sheath and filler shall be suitable for the operating temperature of the cable and compatible with the insulating material. For halogen-free cables, the inner sheath and filler shall also be halogen-free compounds.

Armour
Aluminium/galvanised steel/steel wires are applied in a spiral to the inner sheath in accordance with IEC 60502-1 or double aluminium/steel tapes and copper/tinned copper wires can also be manufactured on request.

Outer Sheath
The outer sheath shall be extruded PVC of type ST1/ST2, polyethylene of type ST3/ST7, halogen-free compound ST8, polychloroprene, chlorosulphonated polyethylene or similar polymers in accordance with IEC 60502-1, type SE1 can also be provided on request.

Cable sheath fire performance
The cable is available with a special flame retardant PVC outer sheath to comply with the flame retardant test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, and halogen-free material to comply with IEC60754-1/2 and IEC 60684-2.

Parameter

600/1000V XLPE Insulation Armoured Power Cable Single core( aluminum wire armoured)

Single core( aluminum wire armoured)
NOMINAL AREA	APPROXCONDUCTOR DIAMETER	NOMINAL INSULATION THICKNESS	NOMINAL BEDDINGTHICKNESS	NOMINAL ALUM WIRE DIA.	NOMINAL SHEATH THICKNESS	APPROX.OVERALL DIAMETER
MM2	MM	MM	MM	MM	MM	MM
1×4	2.3	0.7	1	0.8	1.8	10.9
1×6	2.8	0.7	1	0.8	1.8	11.4
1×10	3.6	0.7	1	0.8	1.8	12.2
1×16	4.5	0.7	1	0.8	1.8	13.1
1×25	5.6	0.9	1	0.8	1.8	14.6
1×35	6.7	0.9	1	1.25	1.8	16.6
1×50	8.8	1	1	1.25	1.8	19.5
1×70	10.6	1.1	1	1.25	1.8	21.5
1×95	12.4	1.1	1	1.6	1.8	24
1×120	14	1.2	1	1.6	1.8	25.5
1×150	15.5	1.4	1	1.6	1.8	27.5
1×185	17.4	1.6	1	1.6	1.8	30
1×240	20.3	1.7	1	1.6	1.9	33
1×300	22.7	1.8	1	1.6	1.9	35
1×400	25.4	2	1.2	2	2.1	40.5
1×500	28.8	2.2	1.2	2	2.2	44.5
1×630	30.4	2.4	1.2	2	2.3	49
1×800		2.6	1.4	2.5	2.5	55.5
1×1000		2.8	1.4	2.5	2.7	61

600/1000V XLPE Insulation Armoured Power Cable Two cores(Galvanized steel wire armoured)

Two cores(Galvanized steel wire armoured)
NOMINAL AREA	APPROXCONDUCTOR DIAMETER	NOMINAL INSULATION THICKNESS	NOMINAL BEDDINGTHICKNESS	NOMINAL STEEL WIRE DIA.	NOMINAL SHEATH THICKNESS	APPROX.OVERALL DIAMETER	APPROX.WEIGHT
MM2	MM	MM	MM	MM	MM	MM	KG/KM
2×1.5	1.6	0.7	1	0.9	1.8	13.5	360
2×2.5	2	0.7	1	0.9	1.8	14.5	405
2×4	2.6	0.7	1	0.9	1.8	15.8	470
2×6	3.1	0.7	1	0.9	1.8	17	505
2×10	4	0.7	1	1.25	1.8	19.3	900
2×16	5	0.7	1	1.25	1.8	21.2	950
2×25	6.3	0.9	1	1.6	1.8	24	1205
2×35	7.4	0.9	1	1.6	1.8	24.8	1800
2×50	8.8	1	1	1.6	1.8	26	1850
2×70	10.6	1.1	1	2	2	29	2335
2×95	12.4	1.1	1.2	2	2.1	33.2	3165
2×120	14	1.2	1.2	2	2.3	36.1	3750
2×150	15.5	1.4	1.2	2.5	2.3	39.3	4410
2×185	17.4	1.6	1.3	2.5	2.5	44.8	5710
2×240	20.3	1.7	1.4	2.5	2.7	53.5	7150
2×300	22.5	1.8	1.5	2.5	2.9	58	8565
2×400	25.4	2	1.6	2.5	3.1	63	10695

600/1000V XLPE Insulation Armoured Power Cable Three cores(Galvanized steel wire armoured)

Three cores(Galvanized steel wire armoured)
NOMINAL AREA	APPROXCONDUCTOR DIAMETER	NOMINAL INSULATION THICKNESS	NOMINAL BEDDINGTHICKNESS	NOMINAL STEEL WIRE DIA.	NOMINAL SHEATH THICKNESS	APPROX.OVERALL DIAMETER	APPROX.WEIGHT
MM2	MM	MM	MM	MM	MM	MM	KG/KM
3×1.5	1.6	0.7	1.2	0.9	1.8	15	380
3×2.5	2	0.7	1.2	0.9	1.8	15.5	400
3×4	2.6	0.7	1.2	0.9	1.8	16.5	460
3×6	3.1	0.7	1.2	0.9	1.8	18	540
3×10	4	0.7	1.2	0.9	1.8	19.5	750
3×16	5	0.7	1.2	1.25	1.8	22.5	1000
3×25	6.3	0.9	1.2	1.6	1.8	26	1510
3×35	7.4	0.9	1.2	1.6	1.8	28	1950
3×50	8.8	1	1.2	1.6	1.9	32	2350
3×70	10.6	1.1	1.2	2	2	35	3230
3×95	12.4	1.1	1.2	2	2.1	39	4050
3×120	14	1.2	1.2	2	2.3	43	5230
3×150	15.5	1.4	1.4	2.5	2.4	47	6750
3×185	17.4	1.6	1.4	2.5	2.6	52	8230
3×240	20.3	1.7	1.5	2.5	2.7	59	10510
3×300	22.5	1.8	1.6	2.5	2.9	64	13210
3×400	25.4	2	1.6	2.5	3.2	74	16100

600/1000V XLPE Insulation Armoured Power Cable Three cores+1(Galvanized steel wire armoured)

Three cores+1(Galvanized steel wire armoured)
NOMINAL AREA	APPROXCONDUCTOR DIAMETER		NOMINAL INSULATION THICKNESS		NOMINAL BEDDINGTHICKNESS	NOMINAL STEEL WIRE DIA.	NOMINAL SHEATH THICKNESS	APPROX.OVERALL DIAMETER	APPROX.WEIGHT
MM2	(3) MM	(1) MM	(3) MM	(1) MM	MM	MM	MM	MM	KG/KM
3x 16/10	5	4	0.7	0.7	1	1.6	1.8	25.5	1550
3x 25/16	6.3	5	0.9	0.7	1	1.6	1.8	27.5	2010
3x 35/16	7.4	5	0.9	0.7	1	1.6	1.8	29	2375
3x 50/25	8.8	6.3	1	0.9	1	1.6	2	33	3100
3x 70/35	10.6	7.4	1.1	0.9	1.2	2	2.1	38	4290
3x 95/50	12.4	8.8	1.1	1	1.2	2	2.3	43.5	5540
3×120/70	14	10.6	1.2	1.1	1.2	2	2.4	49	7150
3×150/70	15.5	10.6	1.4	1.1	1.4	2.5	2.5	52	8330
3×185/95	17.4	12.4	1.6	1.1	1.4	2.5	2.7	57.2	10110
3×240/120	20.3	14	1.7	1.2	1.6	2.5	3	64	12740
3×300/150	22.7	15.5	1.8	1.4	1.6	2.5	3	69.8	15430
3×400/185	25.4	17.4	2	1.6	1.6	3.15	3.3	78.6	19990

600/1000V XLPE Insulation Armoured Power Cable Four cores(Galvanized steel wire armoured)

Four cores(Galvanized steel wire armoured)
NOMINAL AREA	APPROXCONDUCTOR DIAMETER	NOMINAL INSULATION THICKNESS	NOMINAL BEDDINGTHICKNESS	NOMINAL STEEL WIRE DIA.	NOMINAL SHEATH THICKNESS	APPROX.OVERALL DIAMETER	APPROX.WEIGHT
MM2	MM	MM	MM	MM	MM	MM	KG/KM
4×1.5	1.6	0.7	1	0.9	1.8	15	415
4×2.5	2	0.7	1	0.9	1.8	17.5	490
4×4	2.6	0.7	1	0.9	1.8	19	600
4×6	3.1	0.7	1	0.9	1.8	20	730
4×10	4	0.7	1	1.25	1.8	23	970
4×16	5	0.7	1	1.6	1.8	26	1520
4×25	6.3	0.9	1	1.6	1.8	29	2010
4×35	7.4	0.9	1	1.6	1.9	31	2560
4×50	8.8	1	1	1.6	2.1	36	3350
4×70	10.6	1.1	1.2	2	2.2	40	4680
4×95	12.4	1.1	1.2	2	2.4	44	5710
4×120	14	1.2	1.4	2.5	2.5	50	7500
4×150	15.5	1.4	1.4	2.5	2.6	55	9010
4×185	17.4	1.6	1.4	2.5	2.8	61	10820
4×240	20.3	1.7	1.6	2.5	3.1	69	13630
4×300	22.7	1.8	1.6	2.5	3.2	75	16820
4×400	25.4	2	1.8	3.15	3.4	83	22230
