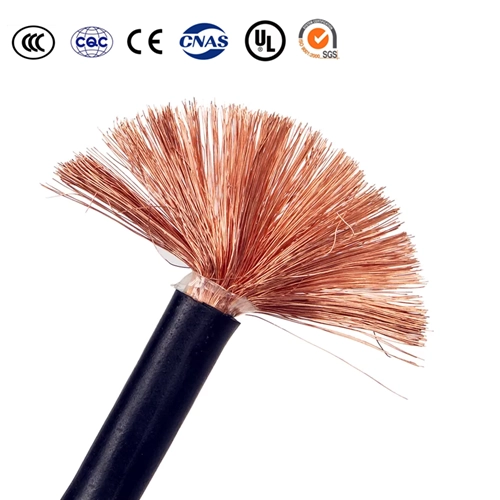

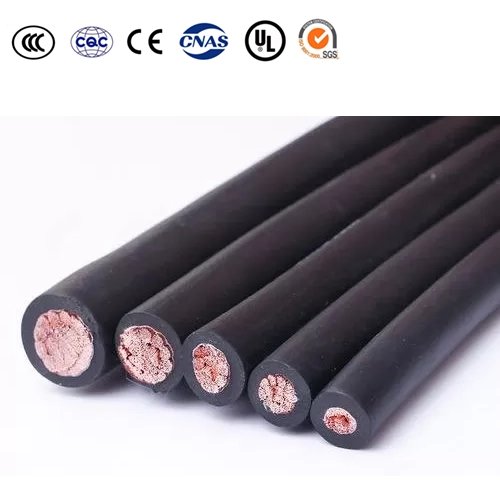

Rubber Welding Cable H01N2-D

Conductors: bare or tinned copper conductor, fine wired stranded, class 6 acc. to IEC 60228 / HD 383 / DIN VDE 0295

Separator: polyester foil or paper

Sheath: rubber compound on poly-chloroprene basis (CR) (= Neoprene), i.e. EM5 acc. to DIN VDE 0282 part 803, oil resistant

Sheath colour: black

Application

Rubber cable is an outer insulation material made of rubber, which is widely used in industry, construction, mining and outdoor occasions. Due to the excellent wear resistance, softness, oil resistance and weather resistance of rubber material, rubber cable is particularly suitable for applications that require high mechanical strength and flexibility and are exposed to database environments.

Rubber Welding Cables H01N2-D cables are used to connect welding robots in the automotive industry, shipyards, and for manually/automatically operated line and spot welding. These cables are ideal for use as battery interconnect cables or battery storage systems. The robust cable construction makes it resistant to low and high temperatures, ozone and radiation, oils, acids, fats and gasoline.c

Advantages
Rubber cables have high flexibility, abrasion resistance and anti-oxidant environment ability, making them an ideal choice for a wide range of industrial and outdoor locations. Whether it is a mine, a construction site, or an automation industry, rubber cables can meet the special needs of various environments and provide reliable power and signal transmission. Choosing the right rubber cable can significantly improve the safety and service life of the equipment.

Specifications

H01N2-D, HAR-certified, power and control cable, rubber arc-welding cable, NSLFFÖU-based, 100VAC, 150VDC, EN 50525-2-81, IEC 60245, flame-retardant

Parameter

Rubber Welding Cable H01N2-D

Rubber Welding Cable H01N2-D
Specifications	Conductor structure	Conductor outer diameter	Belt	Insulation thickness (mm)	Sheath thickness	Outer diameter	Weight	Maximum DC resistance at 20℃ (Ω/km)	Test voltage (KV/min)	Maximum allowable traction force (N)
Specifications	Conductor structure	(MM)	(MM)	Insulation thickness (mm)	(MM)	(MM)	(kg/km)	Maximum DC resistance at 20℃ (Ω/km)	Test voltage (KV/min)	Maximum allowable traction force (N)
2×0.75	24/0.20	1.12	8×0.05	0.6	0.8	4.1×6.6	45.5	26	2/5	105
2×1.0	32/0.20	1.29	5×0.05	0.6	0.9	4.4×7.0	54.8	19.5	2/5	140
2×1.0	32/0.20	1.29	/8×0.05	0.6	0.9	4.4×7.0	54.8	19.5	2/5	140
2×1.5	30/0.25	1.56	8×0.05	0.8	1	5.4×8.6	80.5	13.3	2/5	210
2×2.5	49/0.25	2	8×0.05	0.9	1.1	6.2×10.2	116	7.98	2/5	350
2×4	56/0.30	2.56	8×0.05	1.0	1.2	7.1×11.8	166.3	4.95	2/5	560
2×6	84/0.30	3.54	10×0.05	1.0	1.3	8.2×13.8	225.4	3.3	2/5	840
3×0.75	24/0.20	1.12	8×0.05	0.6	0.9	4.3×6.8	60.2	26	2/5	158
3×1.0	32/0.20	1.29	8×0.05	0.6	0.9	4.4×7.0	69.4	19.5	2/5	210
3×1.5	30/0.25	1.56	8×0.05	0.8	1.0	5.3×8.6	102.8	13.3	2/5	315
3×2.5	49/0.25	2	8×0.05	0.9	1.1	6.2×10.2	150.1	7.98	2/5	525
3×4	56/0.30	2.56	8×0.05	1.0	1.2	7.1×11.8	218.8	4.95	2/5	840
3×6	84/0.30	3.54	10×0.05	1.0	1.3	8.2×13.8	298.4	3.3	2/5	1260
4×0.75	24/0.20	1.12	8×0.05	0.6	0.9	4.3×6.8	72.0	26	2/5	210
4×1.0	32/0.20	1.29	8×0.05	0.6	0.9	4.4×7.0	84.0	19.5	2/5	280
4×1.5	30/0.25	1.56	5×0.05	0.8	1.0	5.8×9.3	137.4	13.3	2/5	420
4×2.5	49/0.25	2	5×0.05	0.9	1.1	6.6×10.7	198.0	7.98	2/5	700
4×4	56/0.30	2.56	5×0.05	1.0	1.2	7.6×12.5	290.1	4.95	2/5	1120
4×6	84/0.30	3.54	10×0.05	1.0	1.3	9.2×15.5	411.8	3.3	2/5	1680
5×0.75	24/0.20	1.12	5×0.05	0.6	1.0	4.7×7.3	92.3	26	2/5	263
5×1.0	32/0.20	1.29	5×0.05	0.6	1.0	4.9×7.7	108.5	19.5	2/5	350
5×1.5	30/0.25	1.56	5×0.05	0.8	1.1	5.8×9.3	160.8	13.3	2/5	525
5×2.5	49/0.25	2	5×0.05	0.9	1.3	6.8×10.9	238.3	7.98	2/5	875
5×4	56/0.30	2.56	5×0.05	1.0	1.4	7.8×12.7	350.1	4.95	2/5	1400
5×6	84/0.30	3.54	10×0.05	1.0	1.6	9.7×16.0	506.8	3.3	2/5	2100
6×0.75	24/0.20	1.12	5×0.05	0.6	1.0	4.7×7.3	104.7	26	2/5	315
6×1.0	32/0.20	1.29	5×0.05	0.6	1.1	5.1×7.9	127.2	19.5	2/5	420
6×1.5	30/0.25	1.56	5×0.05	0.8	1.2	6.0×9.5	188.2	13.3	2/5	630
6×2.5	49/0.25	2	5×0.05	0.9	1.4	7.0×11.1	278.7	7.98	2/5	1050
6×4	56/0.30	2.56	5×0.05	1.0	1.5	8.1×13.0	413.0	4.95	2/5	1680
6×6	84/0.30	3.54	10×0.05	1.0	1.7	9.9×16.2	591.9	3.3	2/5	2520
