RHZ1-2OL Medium Voltage Cable UNE HD 620 S3

RHZ1-2OL Medium Voltage Cable UNE HD 620 S3

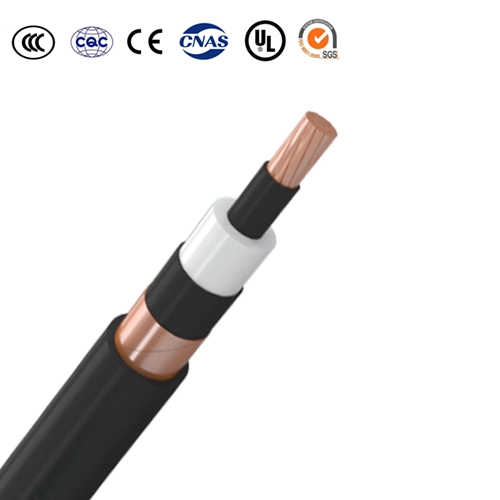

CU(AL)/XLPE/PO
Conductor: Aluminum, class 2, circular compacted conductors
Conductor screen: Non-metallic,semi-conducting compound
Insulation: Cross-Linked Polyethylene XLPE
Insulation screen: Non-metallic,semi-conducting compound
Metallic Screen: Copper Tape or Copper wire
Outer sheath: Polyvinyl,PO (DMZ1,DMZ2,LSOH,LSZH),Black or Red

Application

RHZ1-2OL Medium Voltage Cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.

Chaircteritics
Good electrical and mechanical properties. Low factor dielectric loss, high insulation resistance. The PO outer sheath allows adequate resistance to UV oil and abrasion.
Different cable type require different structures and materials.

Specifications

● IEC 60502-2 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1 kV(Um=1.2kV)up to 30kV(Um=36kV)-Part 2:Cables for Rated Voltages of 6kV (Um=7.2kV) and 30 kV(Um=36kV)
● UNE HD 620 S3 Distribution Cables with Extruded Insulation for Rated Voltages from 3.6/6(7.2)kV to20.8/36(42)kV HD 620 S2 Distribution Cables with Extruded Insulation for Rated Voltages from 3.6/6(7.2)kV to 20.836(42)kV
● ANSI/NEMA WC 74/ICEA S-93-639 5-46kV Shielded Power Cable for Use in the Transmission and Distribution of Electric Energy ANSI/ICEA S-94-649 Concentric Neutral Cables Rated 5 Through 46 kV

Parameter

RHZ1-2OL Medium Voltage Cable UNE HD 620 S3 CU(AL)/XLPE/PO

No. of Cores and Nominal Cross Section	Min.Number of wires	Nominal Insulation Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. of Cores and Nominal Cross Section	Min.Number of wires	Nominal Insulation Thickness	Approx. Overall Diameter	Al	Al
mm²	No.	mm	mm	kg/km	Ω/km
6/10kV Nominal Insulation Thickness
1X50/16	6	3.4	26.8	796	0.641
1X95/16	15	3.4	30.1	1020	0.320
1X150/25	18	3.4	32.8	1312	0.206
1X240/25	34	3.4	37.8	1774	0.125
1X400/35	53	3.4	42.7	2422	0.0778
8.7/15kV Nominal Insulation Thickness
1X50/16	6	4.5	28.8	882	0.641
1X95/16	15	4.5	32.3	1123	0.320
1X150/25	18	4.5	35.4	1457	0.206
1X240/25	34	4.5	40.0	1903	0.125
1X400/35	53	4.5	44.9	2568	0.0778
12/20kV Nominal Insulation Thickness
1X50/16	6	5.5	31.0	981	0.641
1X95/16	15	5.5	34.9	1267	0.320
1X150/25	18	5.5	38.2	1634	0.206
1X240/25	34	5.5	42.2	2042	0.125
1X400/35	53	5.5	47.1	2722	0.0778
18/30kV Nominal Insulation Thickness
1X50/16	6	8.0	36.4	1267	0.641
1X95/16	15	8.0	40.5	1606	0.320
1X150/25	18	8.0	43.2	1942	0.206
1X240/25	34	8.0	47.2	2379	0.125
1X400/35	53	8.0	52.1	3096	0.0778
