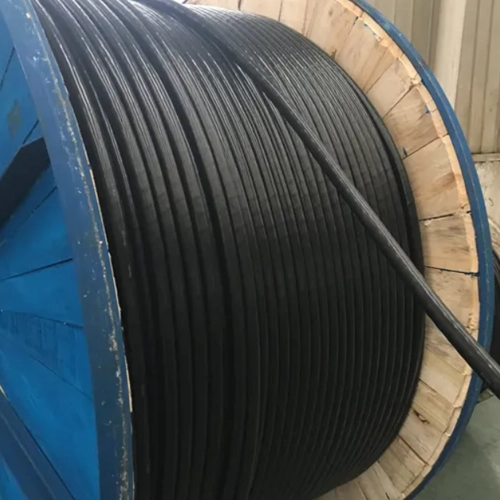

RHZ1-2OL Medium Voltage Cable UNE HD 620 S3

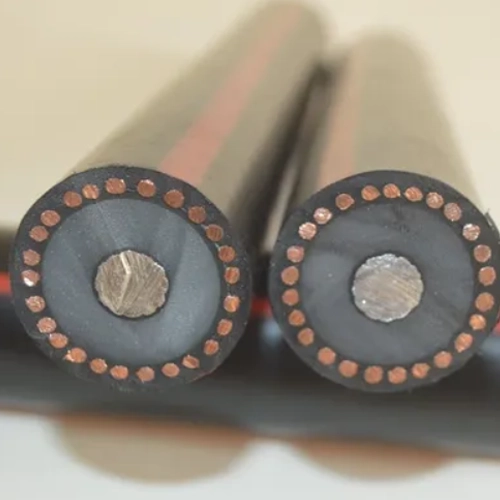

RHZ1-2OL Medium Voltage Cable UNE HD 620 S3-1

RH5Z1 Medium Voltage Cables UNE HD 620 S3

Conductor: Aluminum or copper, class 2,circular compacted conductors
Conductor screen: Non-metallic,semi-conducting compound
Insulation: Cross – Linked Polyethylene XLPE,Nominal Insulation Thickness or Reduced Insulation Thickness
Insulation screen: Non-metallic,semi-conducting compound
Metallic screen: Aluminium plastic tape (AL/PET）
Outer sheath: Polyolefin,PO (DMZ1,DMZ2,LSOH,LSZH),Black or Red

Application

RH5Z1 Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.

Chaircteritics
Good electrical and mechanical properties. Low factor dielectric loss, high insulation resistance. The PO outer sheath allows adequate resistance to UV and abrasion.
Different CPR levels require different structures and materials.

Specifications

● IEC 60502-2 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1 kV (Um=1.2kV) up to 30kV (Um=36kV) – Part 2:Cables for Rated Voltages of 6kV (Um=7.2kV) and 30 kV (Um=36kV)
● HD 620 S1 Distribution Cables with Extruded Insulation for Rated Voltages from 3.6/6(7.2) kV to 20.8/36(42) kV
● HD 620 S2 Distribution Cables with Extruded Insulation for Rated Voltages from 3.6/6(7.2) kV to 20.8/36(42) kV
● UNE 211620 Cables eléctricos de distribución con aislamiento extruido, de tensión asignada desde 3.6/6 (7.2) kV hasta 20.8/36 (42) kV inclusive Cables unipolares y unipolares reunidos con aislamiento de XLPE Cables con pantalla de tubo de aluminio y cubierta de compuesto de poliolefina (tipos 10E-6, 10E-7, 10E-8 y 10E-9)

Parameter

12/20kV 18/30kV POWER CABLE RH5Z1

No. of Cores and Nominal Cross Section	Nominal Insulation Thickness	Nominal AL/PET tape thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. of Cores and Nominal Cross Section	Nominal Insulation Thickness	Nominal AL/PET tape thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Al	Al
mm²	mm	mm	mm	mm	kg/km	Ω/km
12/20kV Reduced Insulation Thickness
1X50	4.9	0.3	2.75	28.1	817	0.641
1X95	4.9	0.3	2.75	31.6	1067	0.320
1X150	4.9	0.3	2.75	34.3	1298	0.206
1X185	4.9	0.3	2.75	36.0	1456	0.164
1X240	4.9	0.3	2.75	38.3	1693	0.125
1X400	4.9	0.3	2.75	43.2	2263	0.0778
1X630	4.9	0.3	2.75	50.3	3191	0.0469
18/30kV Reduced Insulation Thickness
1X50	7.25	0.3	2.75	32.8	1055	0.641
1X95	7.25	0.3	2.75	36.3	1329	0.320
1X150	7.25	0.3	2.75	39.0	1579	0.206
1X185	7.25	0.3	2.75	40.7	1748	0.164
1X240	7.25	0.3	2.75	43.0	2001	0.125
1X400	7.25	0.3	2.75	47.9	2604	0.0778
1X630	7.25	0.3	2.75	55.0	3582	0.0469
