PVC Insulated Unarmoured Power Cable

PVC Insulated Unarmoured Power Cable

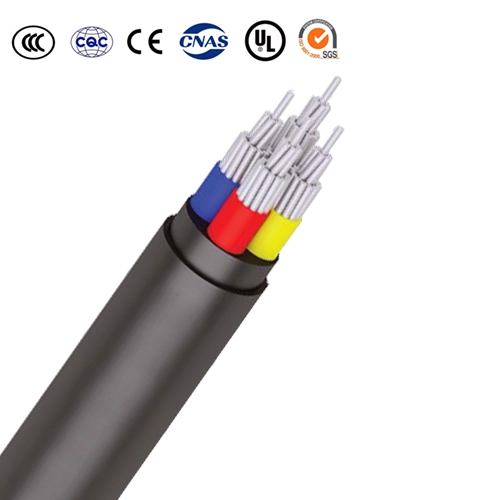

LV PVC Insulated Unarmoured Power Cables Single core(unarmoured)
LV PVC Insulated Unarmoured Power Cables Two cores(unarmoured)

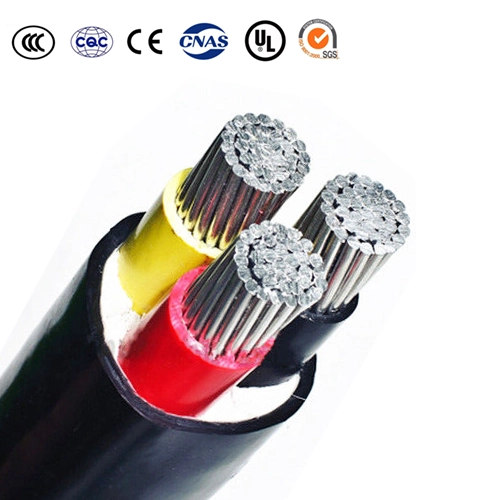

LV PVC Insulated Unarmoured Power Cables Three cores(unarmoured)
LV PVC Insulated Unarmoured Power Cables Three cores+1(unarmoured)
LV PVC Insulated Unarmoured Power Cables Four cores(unarmoured)
LV PVC Insulated Unarmoured Power Cables Multi-cores(unarmoured)

Application

PVC insulated Unarmoured power cables are used for power supply in low voltage installation systems, they are suitable for installation indoors and outdoors, in cable ducts, underground, in power stations and switchyards, local energy distribution, industrial plants, without risk of mechanical damage.

Specifications

Outer sheath

The outer sheath shall be extruded PVC type ST1/ST2, polyethylene type ST3/ST7, halogen-free compound ST8, polychloroprene, chlorosulfonated polyethylene or similar polymers conforming to IEC 60502-1, type SE1 is also available on request.

Fire performance of cable sheath

The cable can be provided with a special flame retardant PVC outer sheath to comply with the flame retardant test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, and halogen-free materials complying with IEC60754-1/2 and IEC 60684-2.

Parameter

LV PVC Insulated Unarmoured Power Cables Single core(unarmoured)

Single core(unarmoured)
NOMINAL CROSS SECTION	DIAMETER OF CONDUCTOR (APPROX.)	NOMINAL INSULATION THICKNESS	NOMINAL PVC SHEATH THICKNESS	OVERALL DIAMETER (APPROX.)	WEIGHT OF CABLE (APPROX.)
MM2	MM	MM	MM	MM	KG/KM
1×4	2.6	1	1.4	7.5	95
1×6	3.1	1	1.4	8	120
1×10	4	1	1.4	9	165
1×16	5	1	1.4	10	230
1×25	6.3	1.2	1.4	12	340
1×35	7.4	1.2	1.4	13	450
1×50	8.8	1.4	1.4	14.5	570
1×70	10.6	1.4	1.4	16	800
1×95	12.4	1.6	1.5	18.5	1070
1×120	14	1.6	1.5	20	1300
1×150	15.5	1.8	1.6	22	1600
1×185	17.4	2	1.7	24	1980
1×240	20.3	2.2	1.7	27	2560
1×300	22.7	2.4	1.8	30	3180
1×400	25.4	2.6	1.9	33	4060
1×500	28.8	2.8	2	37	5140
1×630	30.4	2.8	2.2	42	6600

LV PVC Insulated Unarmoured Power Cables Two cores(unarmoured)

Two cores(unarmoured)
NOMINAL CROSS SECTION	DIAMETER OF CONDUCTOR (APPROX.)	NOMINAL INSULATION THICKNESS	NOMINAL PVC SHEATH THICKNESS	OVERALL DIAMETER (APPROX.)	WEIGHTOF CABLE (APPROX.)
MM2	MM	MM	MM	MM	KG/KM
2×1.5	1.6	0.8	1.8	12	205
2×2.5	2	0.8	1.8	13	250
2×4	2.6	1	1.8	15	330
2×6	3.1	1	1.8	16	400
2×10	4	1	1.8	17.5	525
2×16	5	1	1.8	20	720
2×25	6.3	1.2	1.8	23.5	1030
2×35	7.4	1.2	1.8	25.5	1320
2×50	8.8	1.4	1.8	28.5	1670
2×70	10.6	1.4	1.8	32	2290
2×95	12.4	1.6	1.9	37	3060
2×120	14	1.6	2	40	3700
2×150	15.5	1.8	2.2	44	4500
2×185	17.4	2	2.3	48	5570
2×240	20.3	2.2	2.5	55	7180

LV PVC Insulated Unarmoured Power Cables Three cores(unarmoured)

Three cores(unarmoured)
NOMINAL CROSS SECTION	DIAMETER OF CONDUCTOR (APPROX.)	NOMINAL INSULATION THICKNESS	NOMINAL PVC SHEATH THICKNESS	OVERALL DIAMETER (APPROX.)	WEIGHT OF CABLE (APPROX.)
MM2	MM	MM	MM	MM	KG/KM
3×1.5	1.6	0.8	1.8	13	230
3×2.5	2	0.8	1.8	13.5	280
3×4	2.6	1	1.8	15.5	380
3×6	3.1	1	1.8	17	470
3×10	4	1	1.8	18.5	630
3×16	5	1	1.8	21	880
3×25	6.3	1.2	1.8	24.5	1280
3×35	7.4	1.2	1.8	27	1660
3×50	8.8	1.4	1.8	30	2110
3×70	10.6	1.4	1.9	35	2980
3×95	12.4	1.6	2	40	3930
3×120	14	1.6	2.1	43	4780
3×150	15.5	1.8	2.3	48	5880
3×185	17.4	2	2.4	52	7230
3×240	20.3	2.2	2.6	59	9390
3×300	22.7	2.4	2.7	65	11620
3×400	25.4	2.6	3	72	14730

LV PVC Insulated Unarmoured Power Cables Three cores+1(unarmoured)

Three cores+1(unarmoured)
NOMINAL CROSS SECTION	DIAMETER OF CONDUCTOR (APPROX.)		NOMINAL INSULATION THICKNESS		NOMINAL PVC SHEATH THICKNESS	OVERALL DIAMETER (APPROX.)	WEIGHTOF CABLE (APPROX.)
MM2	(3)MM	(1)MM	(3)MM	(1)MM	MM	MM	KG/KM
3x 16/10	5	4	1	1	1.8	22	1000
3x 25/16	6.3	5	1.2	1	1.8	26	1460
3x 35/16	7.4	5	1.2	1	1.8	28	1830
3x 50/25	8.8	6.3	1.4	1.2	1.8	32	2410
3x 70/35	10.6	7.4	1.4	1.2	1.9	36	3360
3x 95/50	12.4	8.8	1.6	1.4	2.1	41	4440
3×120/70	14	10.6	1.6	1.4	2.2	46	5580
3×150/70	15.5	10.6	1.4	1.2	2.3	49	6580
3×185/95	17.4	12.4	1.6	1.4	2.5	54	8200
3×240/120	20.3	14	1.6	1.4	2.6	61	10570
3×300/150	22.7	15.5	1.8	1.6	2.8	67	13020
3×400/185	25.4	17.4	2	1.6	3.1	75	16560

LV PVC Insulated Unarmoured Power Cables Four cores(unarmoured)

Four cores(unarmoured)
NOMINAL CROSS SECTION	DIAMETER OF CONDUCTOR (APPROX.)	NOMINAL INSULATION THICKNESS	NOMINAL PVC SHEATH THICKNESS	OVERALL DIAMETER (APPROX.)	WEIGHT OF CABLE (APPROX.)
MM	MM	MM	MM	MM	KG/KM
4×70	10.6	1.4	2	38	3760
4×95	12.4	1.6	2.1	44	4960
4×120	14	1.6	2.3	48	6110
4×150	15.5	1.8	2.4	53	7450
4×185	17.4	2	2.6	58	9220
4×240	20.3	2.2	2.8	65	11900
4×300	22.7	2.4	3	72	14730
4×400	25.4	2.6	3.3	81	18830

LV PVC Insulated Unarmoured Power Cables Multi-cores(unarmoured)

Multi-cores(unarmoured)
NOMINAL CROSS SECTION	DIAMETER OF CONDUCTOR (APPROX.)	NOMINAL INSULATION THICKNESS	NOMINAL PVC SHEATH THICKNESS	OVERALL DIAMETER (APPROX.)	WEIGHT OF CABLE (APPROX.)
MM2	MM	MM	MM	MM	KG/KM
5×1.5	1.6	0.8	1.8	14.5	300
7×1.5	1.6	0.8	1.8	15.5	360
10×1.5	1.6	0.8	1.8	19	460
12×1.5	1.6	0.8	1.8	19.5	510
14×1.5	1.6	0.8	1.8	20	570
19×1.5	1.6	0.8	1.8	22	710
21×1.5	1.6	0.8	1.8	23	770
24×1.5	1.6	0.8	1.8	25	870
30×1.5	1.6	0.8	1.8	26	1020
40×1.5	1.6	0.8	1.8	29	1290
48×1.5	1.6	0.8	1.8	32	1520
61×1.5	1.6	0.8	1.8	35	1900
5×2.5	2	0.8	1.8	16	375
7×2.5	2	0.8	1.8	17	460
10×2.5	2	0.8	1.8	20	590
12×2.5	2	0.8	1.8	21	660
14×2.5	2	0.8	1.8	22	740
19×2.5	2	0.8	1.8	24	940
21×2.5	2	0.8	1.8	25	1030
24×2.5	2	0.8	1.8	27	1150
30×2.5	2	0.8	1.8	29	1370
40×2.5	2	0.8	1.8	32	1810
48×2.5	2	0.8	1.8	36	2130
61×2.5	2	0.8	1.8	39	2630
