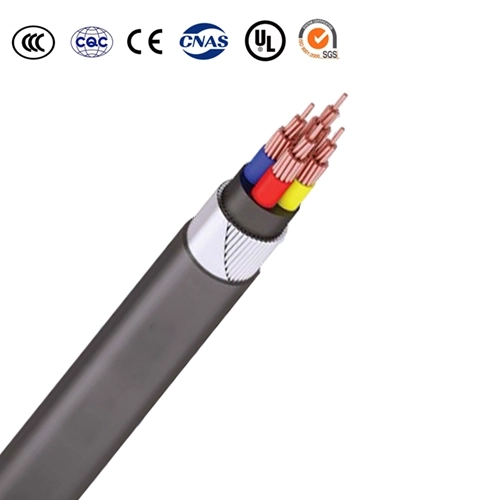

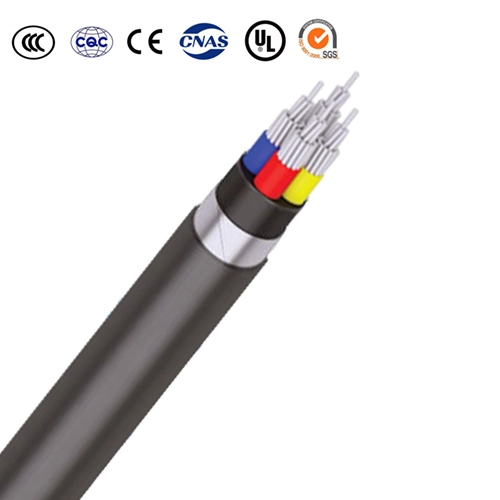

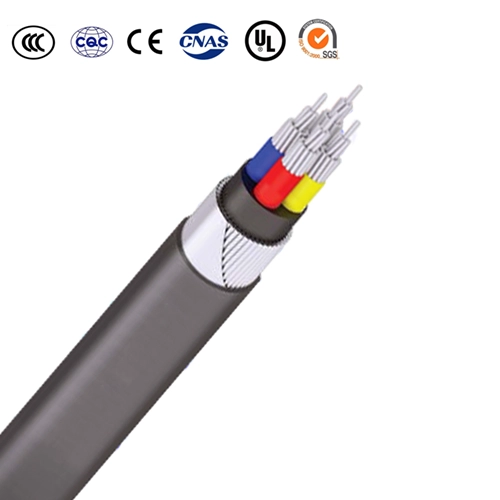

PVC Insulated Armored Power Cable

PVC Insulated Armored Power Cable

PVC Insulated Armored LV Power Cable Single core( aluminum wire armoured)
PVC Insulated Armored LV Power Cable Two cores(Galvanized steel wire armoured)
PVC Insulated Armored LV Power Cable Three cores(Galvanized steel wire armoured)
PVC Insulated Armored LV Power Cable Three cores+1(Galvanized steel wire armoured)
PVC Insulated Armored LV Power Cable Four cores(Galvanized steel wire armoured)

Application

PVC Insulated Armored Power Cables are used for power supply in low voltage installation systems, they are suitable for installation indoors and outdoors, in cable ducts, underground, in power stations and switchyards, local energy distribution, industrial plants, without risk of mechanical damage.

Specifications

Assembly / Inner Covering

The inner covering can be extruded or lapped. For cables with round cores, lapped inner layers are permitted only if the gaps between the cores are substantially filled, except for cables with more than 5 cores. It is permitted to use a suitable adhesive before applying the extruded inner covering. The material is compatible with the insulating material, the materials used for the inner sheath and filler should be suitable for the operating temperature of the cable and compatible with the insulating material. For halogen-free cables, the inner sheath and filler should also be halogen-free compounds.

Armor

According to IEC 60502-1 standard, aluminum/galvanized steel/steel wires are applied to the inner sheath in a spiral manner, or double aluminum/steel tapes and copper/tinned copper wires can also be manufactured on request.

Outer sheath

The outer sheath shall be extruded PVC type ST1/ST2, polyethylene type ST3/ST7, halogen-free compound ST8, polychloroprene, chlorosulfonated polyethylene or similar polymers conforming to IEC 60502-1, type SE1 is also available on request.

Fire performance of cable sheath

The cable can be provided with a special flame retardant PVC outer sheath to comply with the flame retardant test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, and halogen-free materials complying with IEC60754-1/2 and IEC 60684-2.

Parameter

PVC Insulated Armored LV Power Cable Single core( aluminum wire armoured)

Single core( aluminum wire armoured)
NOMINAL AREA	APPROXONDUCTOR DIAMETER	NOMINAL INSULATION THICKNESS	NOMINAL BEDDINGTHICKNESS	NOMINAL ALUM WIRE DIA.	NOMINAL SHEATH THICKNESS	APPROX.OVERALL DIAMETER	APPROX.WEIGHT
MM2	MM	MM	MM	MM	MM	MM	KG/KM
1×10	4	1	1	0.8	1.8	14	300
1×16	5	1	1	0.8	1.8	15	375
1×25	6.3	1.2	1	0.8	1.8	16	500
1×35	7.4	1.2	1	0.8	1.8	18	625
1×50	8.8	1.4	1	1.25	1.8	20	835
1×70	10.6	1.4	1	1.25	1.8	22	1075
1×95	12.4	1.6	1	1.25	1.8	24	1385
1×120	14	1.6	1	1.6	1.8	26	1700
1×150	15.5	1.8	1	1.6	1.8	28	2025
1×185	17.4	2	1	1.6	1.8	31	2450
1×240	20.3	2.2	1	1.6	1.9	34	3100
1×300	22.7	2.4	1	2	2	38	3900
1×400	25.4	2.6	1.2	2	2.1	42	4875
1×500	28.8	2.8	1.2	2	2.2	45	6050
1×630	30.4	2.8	1.2	2	2.4	50	7625

PVC Insulated Armored LV Power Cable Two cores(Galvanized steel wire armoured)

Two cores(Galvanized steel wire armoured)
NOMINAL AREA	APPROXONDUCTOR DIAMETER	NOMINAL INSULATION THICKNESS	NOMINAL BEDDINGTHICKNESS	NOMINAL STEEL WIRE DIA.	NOMINAL SHEATH THICKNESS	APPROX.OVERALL DIAMETER	APPROX.WEIGHT
MM2	MM	MM	MM	MM	MM	MM	KG/KM
2×2.5	2	0.8	1	0.8	1.8	15	425
2×4	2.6	1	1	0.8	1.8	17	525
2×6	3.1	1	1	1.25	1.8	19	775
2×10	4	1	1	1.25	1.8	20	825
2×16	5	1	1	1.25	1.8	21	950
2×25	6.3	1	1	1.25	1.8	23	1150
2×35	7.4	1.2	1	1.6	1.8	27	1700
2×2.5	2	1.2	1	1.6	1.8	29	2050

PVC Insulated Armored LV Power Cable Three cores(Galvanized steel wire armoured)

Three cores(Galvanized steel wire armoured)
NOMINAL AREA	APPROXONDUCTOR DIAMETER	NOMINAL INSULATION THICKNESS	NOMINAL BEDDINGTHICKNESS	NOMINAL STEEL WIRE DIA.	NOMINAL SHEATH THICKNESS	APPROX.OVERALL DIAMETER	APPROX.WEIGHT
MM2	MM	MM	MM	MM	MM	MM	KG/KM
3×2.5 rm	2	0.8	1.2	0.8	1.8	16	465
3×4 re	2.3	1	1.2	1.25	1.8	18	685
3×4 rm	2.6	1	1.2	1.25	1.8	19	725
3×6 re	2.8	1	1.2	1.25	1.8	19	800
3×6 rm	3.1	1	1.2	1.25	1.8	20	850
3×10 re	3.6	1	1.2	1.25	1.8	21	1000
3×10 rm	4	1	1.2	1.25	1.8	22	1050
3×16 rm	5	1	1.2	1.25	1.8	24	1350
3×25 rm	6.3	1.2	1.2	1.6	1.8	29	1975
3×35 rm	7.4	1.2	1.2	1.6	1.8	31	2300
3×50 sm	–	1.4	1.2	1.6	2	32	2675
3×70 sm	–	1.4	1.2	2	2.1	36	3700
3×95 sm	–	1.6	1.2	2	2.2	41	4750
3×120 sm	–	1.6	1.2	2	2.3	44	5575
3×150 sm	–	1.8	1.4	2.5	2.5	49	7150
3×185 sm	–	2	1.4	2.5	2.7	53	8550
3×240 sm	–	2.2	1.5	2.5	2.9	59	10700
3×300 sm	–	2.4	1.6	2.5	3.1	65	12925
3×400 sm	–	2.6	1.6	3.15	3.4	74	16900
3×500 sm	–	2.8	1.8	3.15	3.6	81	20650

PVC Insulated Armored LV Power Cable Three cores+1(Galvanized steel wire armoured)

Three cores+1(Galvanized steel wire armoured)
Nominal Cross Section	Diameter of Conductor (Approx.)		Nominal Insulation thickness		Nominal Inner Covering thickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm	mm	mm	mm	mm
3×10/6	3.6	2.8	1	1	1	1.25	1.8	21.9
3×16/10	4.5	3.6	1	1	1	1.6	1.8	24.2
3×25/16	5.6	4.5	1.2	1	1	1.6	1.8	27.9
3×35/16	6.7	4.5	1.2	1	1	1.6	1.9	30.8
3×50/25	8	5.6	1.4	1.2	1	2	2	36.4
3×70/35	9.4	6.7	1.4	1.2	1.2	2	2.1	40.1
3×95/50	11	8	1.6	1.4	1.2	2.5	2.3	46.3
3×120/70	12.4	9.4	1.6	1.4	1.4	2.5	2.4	50.3
3×150/70	13.8	9.4	1.8	1.4	1.4	2.5	2.6	55
3×185/95	15.3	11	2	1.6	1.4	2.5	2.7	60.3
3×240/120	17.5	12.4	2.2	1.6	1.6	2.5	2.9	67
3×300/150	19.5	13.8	2.4	1.8	1.6	3.15	3.1	74.6
3×400/185	22.6	15.3	2.6	2	1.8	3.15	3.4	84.1
3×500/240	25.2	17.5	2.8	2.2	2	3.15	3.7	91.8

PVC Insulated Armored LV Power Cable Four cores(Galvanized steel wire armoured)

Four cores(Galvanized steel wire armoured)
NOMINAL AREA	APPROXONDUCTOR DIAMETER	NOMINAL INSULATION THICKNESS	NOMINAL BEDDINGTHICKNESS	NOMINAL STEEL WIRE DIA.	NOMINAL SHEATH THICKNESS	APPROX.OVERALL DIAMETER	APPROX.WEIGHT
MM2	MM	MM	MM	MM	MM	MM	KG/KM
4×4 re	2.3	1	1	1.25	1.8	19	790
4×4 rm	2.6	1	1	1.25	1.8	20	825
4×6 re	2.8	1	1	1.25	1.8	21	925
4×6 rm	3.1	1	1	1.25	1.8	21	975
4×10 re	3.6	1	1	1.25	1.8	23	1175
4×10 rm	4	1	1	1.25	1.8	24	1250
4×16 rm	5	1	1	1.6	1.8	27	1750
4×25 rm	6.3	1.2	1	1.6	1.8	31	2375
4×35 sm	–	1.2	1	1.6	1.9	31	2600
4×50 sm	–	1.4	1	2	2.1	37	3625
4×70 sm	–	1.4	1.2	2	2.2	40	4575
4×95 sm	–	1.6	1.2	2.5	2.4	46	6350
4×120 sm	–	1.6	1.4	2.5	2.5	50	7525
4×150 sm	–	1.8	1.4	2.5	2.7	55	8950
4×185 sm	–	2	1.4	2.5	2.9	60	10650
4×240 sm	–	2.2	1.6	2.5	3.1	66	13575
4×300 sm	–	2.4	1.6	2.5	3.3	73	16425
4×400 sm	–	2.6	1.8	3.15	3.6	83	21500
4×500 sm	–	2.8	2	3.15	3.9	91	26500
