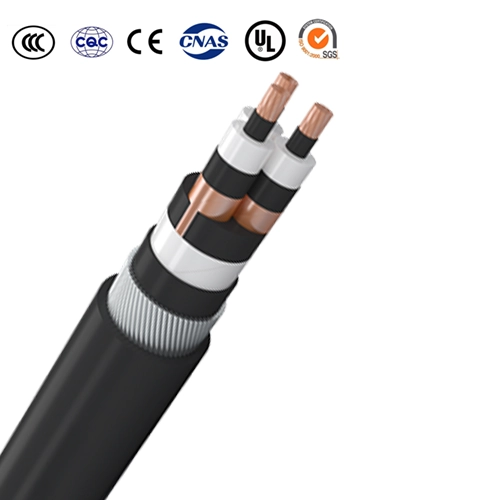

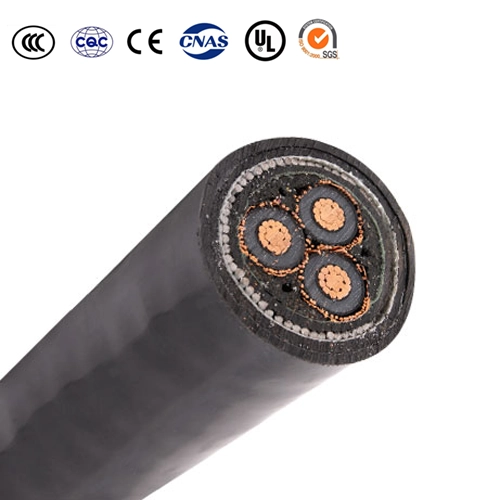

N2XSEY NA2XSEY N2XSE2Y NA2XSE2Y Three Cores Cable

N2XSEY NA2XSEY N2XSE2Y NA2XSE2Y Three Cores Cable

6/10KV 12/20KV 18/30KV
Conductor: Сu and Al stranded compacted, according to IEC 60228 class 2 or VDE 0295 class 2
Inner Layer: Semi-conductive material
Insulation: XLPE (Cross-Linked Polyethylene)
Outer Layer: Semi-conductive material and tape
Screen: Copper wires and copper tape
Outer Sheath: PVC (Polyvinyl Chloride) or PE
Sheath Colour: Red

Application

N2XSEY NA2XSEY N2XSE2Y NA2XSE2Y Three Cores Cable are suitable for use in distribution installations, electric power stations and industrial systems. The cables are for fixed assembly in lines with unlimited difference levels, indoor installations, in cable ducts, conduits and shafts, over shelves and grills directly underground in ditch and outdoor shelter.

Uo/U – 6/10 kV, 12/20 kV, 18/30kV IEC 60502-2 / DIN VDE 0276-620
The three-core cables with insulation of cross-linked polyethylene (XLPE) are designed for transfer and distribution of electrical power with nominal voltage Uo/U 6/10; 12/20; 18/30 kV and frequency 50 Hz in urban and district electrical networks and for electrical supply of transformer’s substations, small and medium industrial plants.

Specifications

DIN VDE 0276part 620, HD 620 and IEC 60502

Parameter

6/10KV Medium Voltage Three Cores Power Cable (Amoured)

Normal cross sectional area	Appro conductor dia	Nom insulation thickness	Copper tape thickness	Copper wire screen area	Appro. Insulation dia	Nom armor thickness	Nom sheath thickness	Appro overall diameter	Appro weight (kg/km)
(mm²)	(mm)	(mm)	(mm)	(mm²)	(mm)	(mm)	(mm)	(mm)	CU	AL
25	6.05	3.4	0.1	16	12.5	0.5	2.3	44	3200	2700
35	7.10	3.4	0.1	16	13.5	0.5	2.4	46	3700	2000
50	8.25	3.4	0.1	16	14.7	0.5	2.5	49	4300	3400
70	9.90	3.4	0.1	16	16.3	0.5	2.6	53	5200	3900
95	11.7	3.4	0.1	16	18.1	0.5	2.8	57	6400	4600
120	13.1	3.4	0.1	16	19.5	0.5	2.9	61	7400	5200
150	14.3	3.4	0.1	25	20.7	0.5	3.0	64	8500	5700
185	16.3	3.4	0.1	25	22.7	0.5	3.1	68	10000	6500
240	18.7	3.4	0.1	25	25.3	0.5	3.3	74	12300	7600
300	20.9	3.4	0.1	25	27.9	0.5	3.4	79	14600	8800
400	23.7	3.4	0.1	35	31.1	0.8	3.7	87	18700	11300

6/10 kV, 12/20 kV, 18/30kV IEC 60502-2 2XSE2Y/N2XSE2Y, A2XSE2Y/NA2XSE2Y

Construction data 2XSE2Y/N2XSE2Y, A2XSE2Y/NA2XSE2Y 6/10; 12/20; 18/30 kV
Number of conductors and nominal cross section	Thickness of insulation	Thickness of sheath	Nominal cross section of screen	Cable diameter approx.	2XSE2Y, N2XSE2Y		A2XSE2Y, NA2XSE2Y
Number of conductors and nominal cross section	Thickness of insulation	Thickness of sheath	Nominal cross section of screen	Cable diameter approx.	Mass of Cu approx.	Mass of cable approx.	Mass of Al approx.	Mass of cable approx.
Nxmm²	mm	mm	mm²	mm	kg/km	kg/km	kg/km	kg/km
6/10 kV
3×35 rm /16 3×50 rm /16	3,4 3,4	2,5 2,5	16 16	46,4 48,8	1010 1363	2849 3348	298 404	2174 2437
3×70 rm /16	3,4	2,7	16	53,0	1968	4208	584	2894
3×95 rm /16	3,4	2,8	16	57,1	2732	5229	809	3402
3×120 rm /16	3,4	2,9	16	60,3	3440	6108	1023	3812
3x150rm /25	3,4	3,0	25	64,2	4245	7287	1257	4449
3×185 rm /25 3×240 rm /25	3,4 3,4	3,2 3,4	25 25	68,5 74,3	5311 6981	8632 10690	1579 2071	5086 6027
3×300 rm /25	3,4	3,5	25	79,6	8661	12766	2589	6999
12/20 kV
3×35 rm /16	5,5	2,8	16	56,7	1010	3714	298	3038
3×50 rm /16 3×70 rm /16	5,5 5,5	2,9 3,0	16 16	59,3 63,3	1363 1968	4259 5153	404 584	3349 3839
3×95 rm /16 3×120 rm /16	5,5 5,5	3,1 3,2	16 16	67,4 70,6	2732 3440	6226 7162	809 1023	4399 4866
3x150rm /25	5,5	3,4	25	74,7	4245	8439	1257	5601
3×185 rm /25	5,5	3,5	25	78,8	5311	9830	1579	6284
3×240 rm /25	5,5	3,7	25	84,5	6981	11998	2071	7334
18/30 kV
3×50 rm /16	8,0	3,3	16	71,7	1363	5505	404	4596
3×70 rm /16	8,0	3,4	16	75,8	1968	6480	584	5167
3×95 rm /16	8,0	3,5	16	79,8	2732	7651	809	5824
3×120 rm /16	8,0	3,7	16	83,3	3440	8665	1023	6369
3x150rm /25	8,0	3,8	25	87,1	4245	10019	1257	7181

6/10 kV, 12/20 kV, 18/30kV IEC 60502-2 / DIN VDE 0276-620 2XSEY/N2XSEY, A2XSEY/NA2XSEY

Construction data 2XSEY/N2XSEY, A2XSEY/NA2XSEY 6/10; 12/20; 18/30 kV
Number of conductors and nominal cross section	Thickness of insulation	Thickness of sheath	Nominal cross section of screen	Cable diameter approx.	2XSEY,N2XSEY		A2XSEY,NA2XSEY
Number of conductors and nominal cross section	Thickness of insulation	Thickness of sheath	Nominal cross section of screen	Cable diameter approx.	Mass of Cu approx.	Mass of cable approx.	Mass of Al approx.	Cable Weight approx.
Nxmm2	mm	mm	mm2	mm	kg/km	kg/km	kg/km	kg/km
6/10 kV
3×35 rm /16	3,4	2,5	16	46,4	1010 1363	2907	298	2231
3×50 rm /16	34	2.5	16	48 8	1010 1363	3408	404	2497
3×70 rm /16	3,4	2,7	16	53,0	1968	4279	584	2965
3×95 rm /16	3,4	2,8	16	57,1	2732	5308	809	3481
3x120rm /16	3,4	2,9	16	60,3	3440	6195	1023	3899
3x150rm /25	3,4	3,0	25	64,2	4245	7383	1257	4545
3x185rm /25 3x240rm /25	3,4	3,2	25	68,5	5311 6981	8741	1579	5195
3x185rm /25 3x240rm /25	34	3,4	25	74,3	5311 6981	10817	2071	6153
3x300rm /25	3,4	3,5	25	79,6	8661	12906	2589	7138
12/20kV
3×35 rm /16	5,5	2,8	16	56,7	1010	3793	298	3117
3×50 rm /16	5,5	2,9	16	59,3	1363	4345	404	3434
3×70 rm /16	5,5	3,0	16	63,3	1968	5248	584	3934
3×95 rm /16 3x120rm /16	5,5	3,1	16	67,4	2732	6331	809	4504
3×95 rm /16 3x120rm /16	5.5	3,2	16	70,6	3440	7275	1023	4979
3x150rm /25	5,5	3,4	25	74,7	4245	8566	1257	5728
3x185rm /25	5,5	3,5	25	78,8	5311	9968	1579	6422
3x240rm /25	5,5	3,7	25	84,5	6981	12155	2071	7491
18/30 kV
3×50 rm /16	8	3,3	16	71,7	1363	5624	404	4713
3×70 rm /16	8	3,4	16	75,8	1968 2732	6610	584	5296
3×95 rm /16	8	3,5	16	79,8	1968 2732	7791	809	5964
3x120rm /16	8	3,7	16	83,3	3440	8819	1023	6523
3x150rm /25	8	3,8	25	87,1	4245	10185	1257	7347
