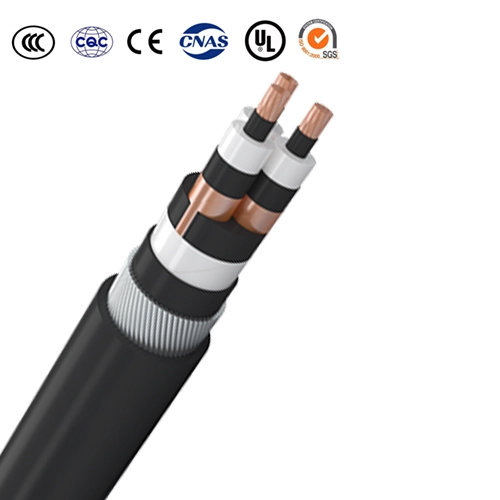

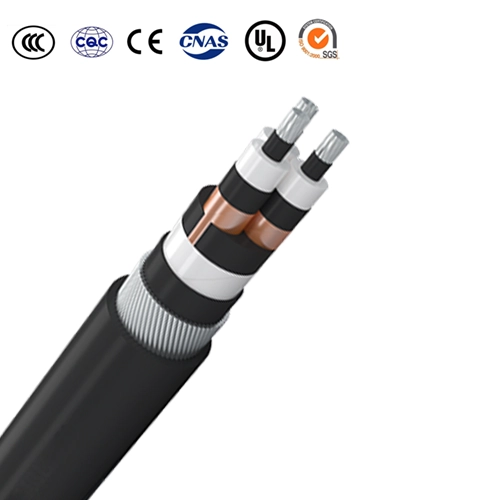

N2XSEY NA2XSEY N2XSE2Y NA2XSE2Y Three Cores Cable
N2XSEY NA2XSEY N2XSE2Y NA2XSE2Y Three Cores Cable

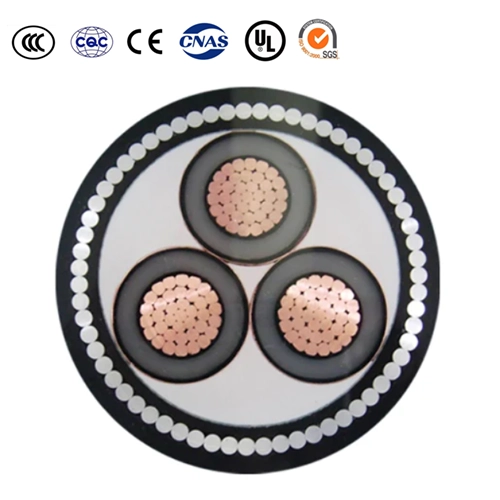

Copper-Medium-Voltage-Power-Cables-2

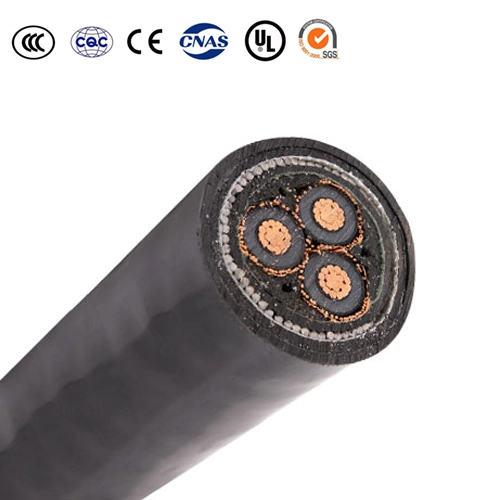

N2XSEY NA2XSEY N2XSE2Y NA2XSE2Y Three Cores Cable-1
GTACSR & GZTACSR Conductor

Medium Voltage XLPE Cable

N2XSY NA2XSY N2XS2Y NA2XS2Y N2XS(F)2Y NA2XS(F)2Y N2XS(FL)2Y NA2XS(FL)2Y Single Core Cable
6/10KV(12KV), 12/20KV(24KV), 18/30KV(36KV)
Send Email
Get Latest Price

Application

N2XSY, NA2XSY, NA2XS(F)2Y Medium Voltage XLPE Cable
For installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks.
The good installation properties of this cable make installation easy, even on difficult routes. Acc.to VDE 0276-603 cables must be protected against direct sun irradiation.

Cable Construction:
Conductor: Stranded annealed compacted copper or aluminium wire, in Class 2. one core or three cores
Conductor Shield: Semi-conducting compound
Insulation: Cross-linked polyethylene (XLPE) or Tree retardant cross-linked polyethylene (TR-XLPE)
Insulation Shield: Semi-conducting compound
Concentric Neutral wire & Copper tape : Copper wires, helically applied and uniformly spaced. Bare copper tape , helically applied
Wrapping tape: non-woven clothing tape or water swelling tape
Outer sheath: Polyvinyl chloride (PVC) or polyethylene (PE). Configuration Options: On request, Triplex or Paralleled configurations.

Cable Code :N2XSY, NA2XSY, NA2XS(F)2Y Medium Voltage XLPE Cable

Code Construction Medium Voltage XLPE Cable Descriptions
N2XSY / N2XSEY / YJV CU / XLPE / CTS / PVC Copper Conductor, XLPE Insulated Copper Tape Screen PVC Sheathed Power Cable
NA2XSY / NA2XSEY / YJLV AL / XLPE / CTS / PVC Aluminum Conductor, XLPE Insulated Copper Tape Screen PVC Sheathed Power Cable
N2XSY / N2XSEY / YJSV CU / XLPE / CWS / PVC Copper Conductor, XLPE Insulated Copper Wire Screen PVC Sheathed Power Cable
NA2XSY / NA2XSEY / YJLSV AL / XLPE / CWS / PVC Aluminum Conductor, XLPE Insulated Copper Wire Screen PVC Sheathed Power Cable
N2XSRY / YJV72 CU / XLPE / CTS / PVC / AWA / PVC Copper Conductor XLPE Insulated Copper Tape Screen PVC Inner Sheaht Aluminum Wire Armored PVC Sheathed Power Cable
NA2XSRY / YJLV72 AL / XLPE / CTS / PVC / AWA / PVC Aluminum Conductor XLPE Insulated Copper Tape Screen PVC Inner Sheaht Aluminum Wire Armored PVC Sheathed Power Cable
N2XSRY / YJSV72 CU / XLPE / CWS / PVC / AWA / PVC Copper Conductor XLPE Insulated Copper Wire Screen PVC Inner Sheaht Aluminum Wire Armored PVC Sheathed Power Cable
NA2XSRY / YJLSV72 AL / XLPE / CWS / PVC / AWA / PVC Aluminum Conductor XLPE Insulated Copper Wire Screen PVC Inner Sheaht Aluminum Wire Armored PVC Sheathed Power Cable
N2XSEBY / N2XSEYBY/ YJV22 CU / XLPE / CTS / PVC / STA / PVC Copper Conductor, XLPE Insulated Copper Tape Screen PVC Inner Sheath Galvanized Double Tape Armoured PVC Sheathed Power Cable
NA2XSEBY / YJLV22 AL / XLPE / CTS / PVC / STA / PVC Aluminum Conductor, XLPE Insulated Copper Tape Screen PVC Inner Sheath Galvanized Double Tape Armoured PVC Sheathed Power Cable
N2XSERY / N2XSEYRGbY / YJV32 CU / XLPE / CTS / PVC / SWA / PVC Copper Conductor XLPE Insulated Copper Tape Screen PVC Inner Sheath Round Steel Wire Armoured PVC Sheathed Cable
N2XSERY / N2XSEYRGbY / YJSV32 CU / XLPE / CWS / PVC / SWA / PVC Copper Conductor XLPE Insulated Copper Wire Screen PVC Inner Sheath Round Steel Wire Armoured PVC Sheathed Cable

Specifications

DIN VDE 0276-620,

HD 620,

EN 60228 Flame Retardant according to IEC/EN 60332-1-2

Parameter

Medium Voltage NA2XSY Single Core Cable 6/10 kV, 12/20 kV, 18/30 kV

Dimensions – number of cores x conductor cross-section External diameter External diameter Conductor diameter Insulation thickness Conductor resistance at20 °C Short circuit current 1s Cable weight
min. max. max. nom. max. nom. approx.
N x mm² mm mm mm mm Ω/km A kg/km
6/10 kV
1 x 50/16 24 29 8,6 3,4 0,641 4,7 766
1 x 70/16 26 31 10,2 3,4 0,443 6,58 861
1 x 95/16 27 32 12,0 3,4 0,32 8,93 985
1 x 120/16 29 34 13,5 3,4 0,253 11,3 1089
1 x 150/16 30 35 15,0 3,4 0,206 14,1 1250
1 x 150/25 30 35 15,0 3,4 0,206 14,1 1273
1 x 185/16 32 37 16,8 3,4 0,164 17,4 1400
1 x 185/25 32 37 16,8 3,4 0,164 17,4 1424
1 x 240/16 34 39 19,2 3,4 0,125 22,6 1600
1 x 240/25 34 39 19,2 3,4 0,125 22,6 1640
1 x 300/25 36 41 21,6 3,4 0,1 28,2 1856
1 x 400/35 40 45 24,6 3,4 0,0778 37,6 2350
1 x 500/35 43 48 27,6 3,4 0,0605 47 2700
12/20 kV
1 x 50/16 28 33 8,6 5,5 0,641 4,7 942
1 x 70/16 30 35 10,2 5,5 0,443 6,58 1047
1 x 95/16 31 36 12,0 5,5 0,32 8,93 1182
1 x 120/16 33 38 13,5 5,5 0,253 11,3 1296
1 x 150/16 34 39 15,0 5,5 0,206 14,1 1450
1 x 150/25 34 39 15,0 5,5 0,206 14,1 1486
1 x 185/16 36 41 16,8 5,5 0,164 17,4 1650
1 x 185/25 36 41 16,8 5,5 0,164 17,4 1694
1 x 240/16 39 44 19,2 5,5 0,125 22,6 1850
1 x 240/25 39 44 19,2 5,5 0,125 22,6 1880
1 x 300/25 41 46 21,6 5,5 0,1 28,2 2200
1 x 400/35 44 49 24,6 5,5 0,0778 37,6 2600
1 x 500/35 47 52 27,6 5,5 0,0605 47 3000
18/30 kV
1 x 50/16 33 38 8,6 8,0 0,641 4,7 1184
1 x 70/16 35 40 10,2 8,0 0,443 6,58 1302
1 x 95/16 36 41 12,0 8,0 0,32 8,93 1450
1 x 120/16 38 43 13,5 8,0 0,253 11,3 1575
1 x 150/25 39 44 15,0 8,0 0,206 14,1 1774
1 x 185/25 41 46 16,8 8,0 0,164 17,4 1951
1 x 240/25 43 48 19,2 8,0 0,125 22,6 2199
1 x 300/25 46 51 21,6 8,0 0,1 28,6 2443
1 x 400/35 49 54 24,6 8,0 0,0778 37,6 3000
1 x 500/35 52 57 27,6 8,0 0,0605 47 3450

Medium Voltage N2XSY Single Core Cable 6/10 kV, 12/20 kV, 18/30 kV

Dimensions – number of cores x conductor cross-section Conductor diameter Insulation thickness External diameter diameter of Cable Conductor resistance at 20 °C Short circuit current 1s Cable weight
max. nominal min. max. max. nominal
N x mm² mm mm mm mm Ω/km A kg/km
6/10 kV
1 x 35/16 7,5 3,4 23 28 0,524 5,00 892
1 x 50/16 8,6 3,4 24 29 0,387 7,15 1027
1 x 70/16 10,2 3,4 26 31 0,268 10,0 1254
1 x 95/16 12,0 3,4 27 32 0,193 13,6 1525
1 x 120/16 13,5 3,4 29 34 0,153 17,2 1773
1 x 150/16 15,0 3,4 30 35 0,124 21,4 2050
1 x 150/25 15,0 3,4 30 35 0,124 21,4 2135
1 x 185/16 16,8 3,4 32 37 0,0991 26,5 2450
1 x 185/25 16,8 3,4 32 37 0,0991 26,5 2482
1 x 240/16 19,2 3,4 34 39 0,0754 34,3 3000
1 x 240/25 19,2 3,4 34 39 0,0754 34,3 3045
1 x 300/25 21,6 3,4 36 41 0,0601 42,9 3646
1 x 400/35 24,6 3,4 40 45 0,0470 57,2 4557
1 x 500/35 27,6 3,4 43 48 0,0366 71,5 5585
1 x 630/35 31,5 3,4 48 52 0,0283 90,1 7090
12/20 kV
1 x 35/16 7,5 5,5 27 32 0,524 5,00 1067
1 x 50/16 8,6 5,5 28 33 0,387 7,15 1208
1 x 70/16 10,2 5,5 30 35 0,268 10,0 1446
1 x 95/16 12,0 5,5 31 36 0,193 13,6 1726
1 x 120/16 13,5 5,5 33 38 0,153 17,2 1983
1 x 150/16 15,0 5,5 34 39 0,124 21,4 2300
1 x 150/25 15,0 5,5 34 39 0,124 21,4 2353
1 x 185/16 16,8 5,5 36 41 0,0991 26,5 2650
1 x 185/25 16,8 5,5 36 41 0,0991 26,5 2712
1 x 240/16 19,2 5,5 39 44 0,0754 34,3 3250
1 x 240/25 19,2 5,5 39 44 0,0754 34,3 3290
1 x 300/25 21,6 5,5 41 46 0,0601 42,9 3889
1 x 400/35 24,6 5,5 44 49 0,0470 57,2 4831
1 x 500/35 27,6 5,5 47 52 0,0366 71,5 6050
1 x 630/35 31,5 5,5 51 55 0,0283 90,1 7340
18/30 kV
1 x 50/16 8,6 8,0 33 38 0,387 7,15 1455
1 x 70/16 10,2 8,0 35 40 0,268 10,0 1706
1 x 95/16 12,0 8,0 36 41 0,193 13,6 2001
1 x 120/16 13,5 8,0 38 43 0,153 17,2 2270
1 x 150/25 15,0 8,0 39 44 0,124 21,4 2650
1 x 185/25 16,8 8,0 41 46 0,0991 26,5 3022
1 x 240/25 19,2 8,0 43 48 0,0754 34,3 3618
1 x 300/25 21,6 8,0 46 51 0,0601 42,9 4350
1 x 400/35 24,6 8,0 49 54 0,0470 57,2 5350
1 x 500/35 27,6 8,0 52 57 0,0366 71,5 6450
1 x 630/35 31,5 8,0 57 62 0,0283 90,1 7800

Medium Voltage N2XS2Y Single Core Cable 6/10 kV, 12/20 kV, 18/30 kV

Dimensions – number of cores x conductor cross-section Conductor diameter Insulation thickness External diameter Diameter of cable Conductor resistance at 20 °C Short circuit current 1s Cable weight
max. nom. min. max. max. nom.
N x mm² mm mm mm mm Ω/km A kg/km
6/10 kV
1 x 35/16 7,5 3,4 23 28 0,524 5,00 801
1 x 50/16 8,6 3,4 24 29 0,387 7,15 932
1 x 70/16 10,2 3,4 26 31 0,268 10,0 1151
1 x 95/16 12,0 3,4 27 32 0,193 13,6 1415
1 x 120/16 13,5 3,4 29 34 0,153 17,2 1656
1 x 150/16 15,0 3,4 30 35 0,124 21,4 1950
1 x 150/25 15,0 3,4 30 35 0,124 21,4 2012
1 x 185/16 16,8 3,4 32 37 0,0991 26,5 2350
1 x 185/25 16,8 3,4 32 37 0,0991 26,5 2353
1 x 240/16 19,2 3,4 34 39 0,0754 34,3 2900
1 x 240/25 19,2 3,4 34 39 0,0754 34,3 2906
1 x 300/25 21,6 3,4 36 41 0,0601 42,9 3483
1 x 400/35 24,6 3,4 40 45 0,0470 57,2 4500
1 x 500/35 27,6 3,4 43 48 0,0366 71,5 5395
1 x 630/35 31,5 3,4 48 52 0,0283 90,1 7010
12/20 kV
1 x 35/16 7,5 5,5 27 32 0,524 5,00 951
1 x 50/16 8,6 5,5 28 33 0,387 7,15 1088
1 x 70/16 10,2 5,5 30 35 0,268 10,0 1318
1 x 95/16 12,0 5,5 31 36 0,193 13,6 1592
1 x 120/16 13,5 5,5 33 38 0,153 17,2 1843
1 x 150/16 15,0 5,5 34 39 0,124 21,4 2150
1 x 150/25 15,0 5,5 34 39 0,124 21,4 2207
1 x 185/16 16,8 5,5 36 41 0,0991 26,5 2550
1 x 185/25 16,8 5,5 36 41 0,0991 26,5 2559
1 x 240/16 19,2 5,5 39 44 0,0754 34,3 3100
1 x 240/25 19,2 5,5 39 44 0,0754 34,3 3127
1 x 300/25 21,6 5,5 41 46 0,0601 42,9 3717
1 x 400/35 24,6 5,5 44 49 0,0470 57,2 4634
1 x 500/35 27,6 5,5 47 52 0,0366 71,5 5665
1 x 630/35 31,5 5,5 51 55 0,0283 90,1 7340
18/30 kV
1 x 50/16 8,6 8,0 33 38 0,387 7,15 1307
1 x 70/16 10,2 8,0 35 40 0,268 10,0 1550
1 x 95/16 12,0 8,0 36 41 0,193 13,6 1837
1 x 120/16 13,5 8,0 38 43 0,153 17,2 2099
1 x 150/25 15,0 8,0 39 44 0,124 21,4 2473
1 x 185/25 16,8 8,0 41 46 0,0991 26,5 2838
1 x 240/25 19,2 8,0 43 48 0,0754 34,3 3423
1 x 300/25 21,6 8,0 46 51 0,0601 42,9 4028
1 x 400/35 24,6 8,0 49 54 0,0470 57,2 4150
1 x 500/35 27,6 8,0 52 57 0,0366 71,5 5100
1 x 630/35 31,5 8,0 57 62 0,0283 90,1 6200
Dimensions – number of cores x conductor cross-section External diameter Out diameter of cable Conductor diameter Insulation thickness Conductor resistance at20 °C Short circuit current 1s Cable weight
min. max. max. nom. max. nominal approx.
N x mm² mm mm mm mm Ω/km A kg/km
6/10 kV
1 x 50/16 24 29 8,6 3,4 0,641 4,7 650
1 x 70/16 26 31 10,2 3,4 0,443 6,58 736
1 x 95/16 27 32 12,0 3,4 0,32 8,93 852
1 x 120/16 29 34 13,5 3,4 0,253 11,3 950
1 x 150/16 30 35 15,0 3,4 0,206 14,1 1100
1 x 150/25 30 35 15,0 3,4 0,206 14,1 1128
1 x 185/16 32 37 16,8 3,4 0,164 17,4 1250
1 x 185/25 32 37 16,8 3,4 0,164 17,4 1269
1 x 240/16 34 39 19,2 3,4 0,125 22,6 1400
1 x 240/25 34 39 19,2 3,4 0,125 22,6 1473
1 x 300/25 36 41 21,6 3,4 0,1 28,2 1679
1 x 400/35 40 45 24,6 3,4 0,0778 37,6 2076
1 x 500/35 43 48 27,6 3,4 0,0605 47 2439
12/20 kV
1 x 50/16 28 33 8,6 5,5 0,641 4,7 806
1 x 70/16 30 35 10,2 5,5 0,443 6,58 903
1 x 95/16 31 36 12,0 5,5 0,32 8,93 1029
1 x 120/16 33 38 13,5 5,5 0,253 11,3 1135
1 x 150/16 34 39 15,0 5,5 0,206 14,1 1251
1 x 150/25 34 39 15,0 5,5 0,206 14,1 1320
1 x 185/16 36 41 16,8 5,5 0,164 17,4 1450
1 x 185/25 36 41 16,8 5,5 0,164 17,4 1474
1 x 240/16 39 44 19,2 5,5 0,125 22,6 1693
1 x 240/25 39 44 19,2 5,5 0,125 22,6 1750
1 x 300/25 41 46 21,6 5,5 0,1 28,2 1911
1 x 400/35 44 49 24,6 5,5 0,0778 37,6 2330
1 x 500/35 47 52 27,6 5,5 0,0605 47 2708
1 x 630/35 50 55 29,3 5,5 0,0469 59,2 3177
18/30 kV
1 x 50/16 33 38 8,6 8,0 0,641 4,7 1036
1 x 70/16 35 40 10,2 8,0 0,443 6,58 1146
1 x 95/16 36 41 12,0 8,0 0,32 8,93 1286
1 x 120/16 38 43 13,5 8,0 0,253 11,3 1404
1 x 150/25 39 44 15,0 8,0 0,206 14,1 1598
1 x 185/25 41 46 16,8 8,0 0,164 17,4 1776
1 x 240/25 43 48 19,2 8,0 0,125 22,6 2004
1 x 300/25 46 51 21,6 8,0 0,1 28,6 2300
1 x 400/35 49 54 24,6 8,0 0,0778 37,6 2682
1 x 500/35 52 57 27,6 8,0 0,0605 47 3150

PDF Download

PDF Download

Why Choose Us

chanpin-why

Contact Us Immediately

Contact Us

  • 24-hour online service
  • Own factory processing
+86-17838385538

Product Category

hot-sale product

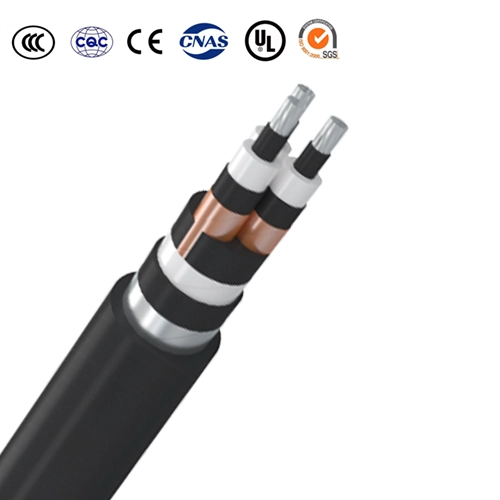

Medium Voltage Power Cables-1

3.6/6 kV 6/10 kV 8.7/15 kV 12/20 kV 18/30 kV

Read More
Inquiry

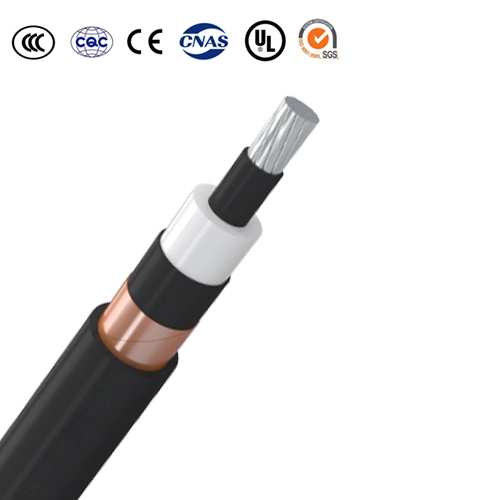

Medium Voltage Power Cables ICEA S-93-639

Conductor: Copper or aluminum, circular compressed or compacted stranded conductors
Conductor screen: Non-metallic,semi-conducting compound
Insulation: 100% and 133% and 173% insulation level, cross-linked polyethylene XLPE or tree retardant cross-linked polyethylene insulation(TRXLPE)
Insulation screen: Non-metallic,semi-conducting compound
Metallic screen: Copper tape
Outer sheath: Sunlight resistant, Polyvinyl chloride PVC or Polyethylene (PE) or Polyolefin (PO)

Read More
Inquiry
Medium Voltage Power Cables ICEA S-94-649

Conductor: Aluminum or copper, class 2,circular compacted conductors
Conductor screen: Non-metallic,semi-conducting compound
Insulation: Cross – Linked Polyethylene XLPE,Nominal Insulation Thickness or Reduced Insulation Thickness
Insulation screen: Non-metallic,semi-conducting compound
Metallic screen: Aluminium plastic tape (AL/PET）
Outer sheath: Polyolefin,PO (DMZ1,DMZ2,LSOH,LSZH),Black or Red

Read More
Inquiry
RHZ1 Medium Voltage Cable UNE HD 620 S3

CU(AL)/XLPE/PO
Conductor: Aluminum, class 2, circular compacted conductors
Conductor screen: Non-metallic,semi-conducting compound
Insulation: Cross-Linked Polyethylene XLPE
Insulation screen: Non-metallic,semi-conducting compound
Metallic Screen: Copper Tape or Copper wire
Outer sheath: Polyvinyl,PO (DMZ1,DMZ2,LSOH,LSZH),Black or Red

Read More
Inquiry
SHUOBANG

Our reputation is based on providing the sophisticated products and thoughtful services to ourcustomers, which makes us unique among cable manufacturers.

Follow Us：

Facebook Linkedin Youtube

products

links

Inquiry

WhatsApp

Email

Inquiry

© Copyright 2023 by Henan Shuobang Cable Co., Ltd. All Rights Reserved.

home

profile

our range

contact us

call us

Contact Us Immediately
