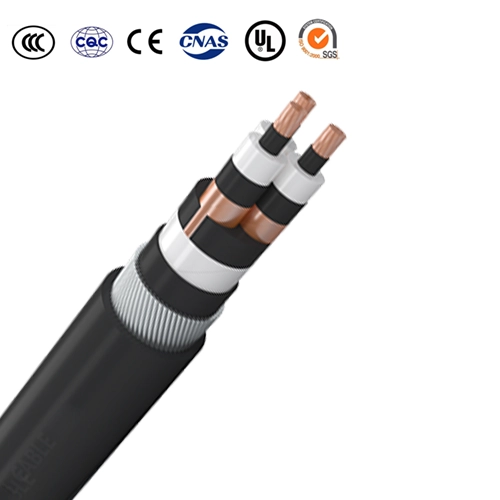

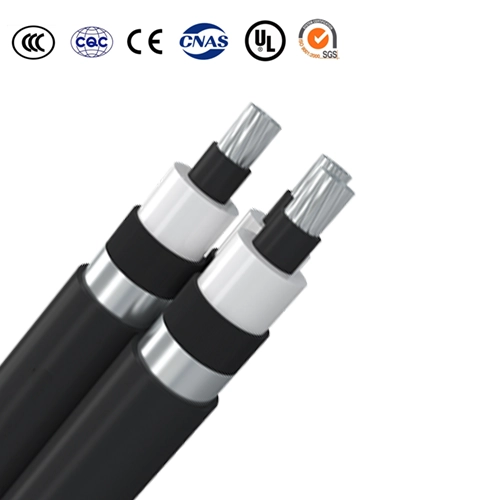

Medium Voltage Power Cable

3.6/6 kV 6/10 kV 8.7/15 kV 12/20 kV 18/30 kV

Application

MV Power Cables are designed to operate at voltages up to 18/30 (36) kv and are typically used in medium-voltage distribution networks. The conductors can be made from copper or aluminum, and are usually stranded and compacted to form a round, insulated core. Cable sizes can range from 25 up to 630 sq.mm per core, with 1 or 3 insulated cores making up the cable. Various protective measures can be employed, such as construction and materials for direct burial, longitudinal and/or radial water tightness, anti-termite protection, and fire safety.

Construction

Formation	1 core, 3 core, 3×1 core Triplex
Conductor	Cu or AL, Stranded Circular, Stranded Compact Circular, Milliken Segmented
Insulation	XLPE or TR-XLPE or EPR
Metallic screen or sheath	Copper Wire Screen (CWS), Copper Tape Screen (CTS), Lead alloy sheath (LAS), Corrugated Aluminium sheath (CAS), Corrugated Copper sheath (CCU), Corrugated Stainless Steel (CSS), Aluminium poly laminated (APL), Copper Poly Laminated (CPL), Aldrey wire screen (AWS)
Armoured	Aluminium Wire Armoured (AWA), Steel Wire Armoured (SWA), Stainless Steel Wire Armoured (SSWA)
Termite Protection	Polyamide Nylon Jacket, Double brass tape (DBT), Cypermethrin
Bedding/ Separation sheath/ Over sheath	PVC, LSHF, LDPE, MDPE, HDPE

IEC Copper/Aluminum Conductor Specifications

IEC 502 – Rated Voltage 1.8/3.0 – 18/30 kV
Twisted Aerial Cables 2-4 cores	up to 18/30 kV: 50-120
2-3 cores + steel messenger	up to 18/30 kV: (50-150)+50
Single Core copper tape screen	3.6/6 kV: 25-630 6/10 kV: 25-630 8.7/15 kV: 25-630 12/20 kV: 35-630 18/30 kV: 50-630
copper wire screen
aluminium tape armor
aluminium wire armor
lead sheath copper tape screen
lead sheath aluminium tape armor
lead sheath aluminium wire armor
Three Cores with individual copper tape screen and PVC core covering	3.6/6 kV: 25-300 6/10kV: 25-300 8.7/15 kV: 25-300 12/20kV: 35-300 18/30kV: 50-300
steel round wire armor
steel flat wire armor
double steel tape armor
lead sheath
lead sheath double steel tape armor
lead sheath steel round wire armor
lead sheath steel flat wire armor

Specifications

Our company provides a variety of standard medium voltage cables, it including:

MV Cable Standard	MV Standard Description
IEC 60502-2	Cables with extruded insulation with voltage rating between 6kV and 30kV
BS6622	Armoured cable with PVC outer sheathing and voltage rating from 3.3/6kV to 19/33kV
BS7835	Armoured cable with LSZH outer sheathing and voltage rating from 3.3/6kV to 19/33kV
BS7870-4.10	Single core cables for distribution utilities with extruded insulation up to and including 11kV and 33kV
HD620	Cables with extruded insulation and voltage ratings 3.6/6 (7.2)kV to 20.8/36 (42)kV (often seen in conjunction with IEC60502-2)
DIN VDE 0276 Part 620	Distribution cables of nominal voltages 3.6kV to 20.8/36kV

Parameter

Medium Voltage Cables Single Core Cables to BS6622/BS7835

NOMINAL CROSS- SECTION OF CABLES MM²	TOTAL CROSS SECTION					MAX. DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
NOMINAL CROSS- SECTION OF CABLES MM²	3.8/6.6KV (UM=7.2KV)	6.35/11KV (UM=12KV)	8.7/15KV (UM=17.5KV)	12.7/22KV (UM=24KV)	19/33KV (UM=36KV)	MAX. DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
MM²	MM²					Ω
70	16	16	16	16	16	1.19
95	16	16	16	16	16	1.19
120	16	16	16	16	16	1.19
150	25	25	25	25	25	0.759
185	25	25	25	25	25	0.759
240	25	25	25	25	25	0.759
300	25	25	25	25	25	0.759
400	35	35	35	35	35	0.271
500	35	35	35	35	35	0.217
630	35	35	35	35	35	0.271

Medium Voltage Cables Three Core Cables to BS6622/BS7835

NOMINAL CROSS- SECTION OF CABLES	TOTAL CROSS SECTION					MAX. DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
NOMINAL CROSS- SECTION OF CABLES	3.8/6.6KV (UM=7.2KV)	6.35/11KV (UM=12KV)	8.7/15KV (UM=17.5KV)	12.7/22KV (UM=24KV)	19/33KV (UM=36KV)	MAX. DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
MM²	MM²					Ω
70	16	16	16	16	16	1.19
95	16	16	16	16	16	1.19
120	16	16	16	16	16	1.19
150	25	25	25	25	25	0.759
185	25	25	25	25	25	0.759
240	25	25	25	25	25	0.759
300	25	25	25	25	25	0.759
400	35	35	35	35	35	0.271
500	35	35	35	35	35	0.271
630	35	35	35	35	35	0.271

Medium Voltage Cables Single Core Cables to IEC 60502

NOM. CROSS SECTION AREA OF CONDUCTOR	TOTAL CROSS SECTION					MAX. DC RESISTANCE AT 20℃
NOM. CROSS SECTION AREA OF CONDUCTOR	3.6/6KV (UM=7.2KV)	6/10KV (UM=12KV)	8.7/15KV (UM=17.5KV)	12/20KV (UM=24KV)	18/30KV (UM=36KV)	MAX. DC RESISTANCE AT 20℃
MM²	MM	MM	MM	MM	MM	Ω
10	10	10	10	10	10	1.075
16	16	16	16	16	16	1.075
25	16	16	16	16	16	1.075
35	16	16	16	16	16	1.075
50	16	16	16	16	16	1.075
70	16	16	16	16	16	1.075
95	16	16	16	16	16	1.075
120	16	16	16	16	16	1.075
150	25	25	25	25	25	0.688
185	25	25	25	25	25	0.688
240	25	25	25	25	25	0.688
300	25	25	25	25	25	0.688
400	35	35	35	35	35	0.491
500	35	35	35	35	35	0.491
630	35	35	35	35	35	0.491
800	50	50	50	50	50	0.344
1000	50	50	50	50	50	0.344

Medium Voltage Cables Three Core Cables to IEC 60502

NOM. CROSS SECTION AREA OF CONDUCTOR	TOTAL CROSS SECTION					MAX. DC RESISTANCE AT 20℃
NOM. CROSS SECTION AREA OF CONDUCTOR	3.6/6KV (UM=7.2KV)	6/10KV (UM=12KV)	8.7/15KV (UM=17KV)	12/20KV (UM=24KV)	18/30KV (UM=36KV)	MAX. DC RESISTANCE AT 20℃
MM²	MM	MM	MM	MM	MM	Ω
10	10	–	–	–	–	1.075
16	16	16	–	–	–	1.075
25	16	16	16	16	–	1.075
35	16	16	16	16	–	1.075
50	16	16	16	16	16	1.075
70	16	16	16	16	16	1.075
95	16	16	16	16	16	1.075
120	16	16	16	16	16	1.075
150	25	25	25	25	25	0.688
185	25	25	25	25	25	0.688
240	25	25	25	25	25	0.688
300	25	25	25	25	25	0.688
400	35	35	35	35	35	0.491
500	35	35	35	35	35	0.491
630	35	35	35	35	35	0.491

Medium Voltage Cables Single Core Cables to VDE 0276

NOMINAL CROSS- SECTION OF CABLES MM²	TOTAL CROSS SECTION					MAX. DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
NOMINAL CROSS- SECTION OF CABLES MM²	3.6/6KV (UM=7.2KV)	6/10KV (UM=12KV)	8.7/15KV (UM=17.5KV)	12/20KV (UM=24KV)	18/30KV (UM=36KV)	MAX. DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
MM²	MM²					Ω
70	16	16	16	16	16	1.19
95	16	16	16	16	16	1.19
120	16	16	16	16	16	1.19
150	25	25	25	25	25	0.759
185	25	25	25	25	25	0.759
240	25	25	25	25	25	0.759
300	25	25	25	25	25	0.759
400	35	35	35	35	35	0.271
500	35	35	35	35	35	0.217
630	35	35	35	35	35	0.271

Medium Voltage Cables Three Core Cables to VDE 0276

NOMINAL CROSS- SECTION OF CABLES	TOTAL CROSS SECTION					MAX. DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
NOMINAL CROSS- SECTION OF CABLES	3.6/6KV (UM=7.2KV)	6/10KV (UM=12KV)	8.7/15KV (UM=17.5KV)	12/20KV (UM=24KV)	18/30KV (UM=36KV)	MAX. DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
MM²	MM²					Ω
70	16	16	16	16	16	1.19
95	16	16	16	16	16	1.19
120	16	16	16	16	16	1.19
150	25	25	25	25	25	0.759
185	25	25	25	25	25	0.759
240	25	25	25	25	25	0.759
300	25	25	25	25	25	0.759
400	35	35	35	35	35	0.271
500	35	35	35	35	35	0.271
630	35	35	35	35	35	0.271

5KV ICEA Single Core Cables XLPE Insulated Cables MV-90

5KV 100% TO ICEA STANDARD
CONDUCTOR	INSULATION THICKNESS (MM/MILS)	SHEATH THICKNESS (MM/MILS)	OVERALL DIAMETER (MM/IN.)		CABLE WEIGHT (KG/KM / LBS/KFT)				AMPACITY (AMPS)
CONDUCTOR	INSULATION THICKNESS (MM/MILS)	SHEATH THICKNESS (MM/MILS)	OVERALL DIAMETER (MM/IN.)		CABLE WEIGHT (KG/KM / LBS/KFT)				90°C IN DUCT		90°C IN AIR
			(D)		CU		AL		CU	AL	CU	AL
4 AWG	2.29/90	1.52/60	17.5	0.69	430	289	299	201	110	86	145	115
2 AWG	2.29/90	1.52/60	18.8	0.74	573	385	366	246	145	115	190	150
1 AWG	2.29/90	1.52/60	19.8	0.78	670	450	406	273	170	130	225	175
1/0 AWG	2.29/90	1.52/60	20.8	0.82	792	532	460	309	195	150	260	200
2/0 AWG	2.29/90	1.52/60	23.1	0.91	989	665	571	384	220	170	300	230
3/0 AWG	2.29/90	2.03/80	24.6	0.97	1178	792	652	438	250	195	345	270
4/0 AWG	2.29/90	2.03/80	25.9	1.02	1409	947	744	500	290	225	400	310
250 MCM	2.29/90	2.03/80	27.2	1.07	1613	1084	829	557	320	250	445	345
350 MCM	2.29/90	2.03/80	29.7	1.17	2129	1431	1031	693	385	305	550	430
500 MCM	2.29/90	2.03/80	33.5	1.32	2913	1958	1345	904	470	370	695	545
750 MCM	2.29/90	2.03/80	38.6	1.52	4187	2814	1821	1224	585	470	900	710
1000 MCM	2.29/90	2.03/80	42.4	1.67	5426	3647	2267	1524	670	545	1075	855
5kV 133% to ICEA Standard
4 AWG	2.92/115	1.52/60	18.8	0.74	464	312	335	225	120	86	110	115
2 AWG	2.92/115	1.52/60	20.1	0.79	611	411	405	272	155	115	145	150
1 AWG	2.92/115	1.52/60	21.1	0.83	711	478	448	301	180	130	170	175
1/0 AWG	2.92/115	1.52/60	23.1	0.91	884	594	552	371	210	150	200	200
2/0 AWG	2.92/115	1.52/60	24.6	0.97	1038	698	620	417	235	170	225	230
3/0 AWG	2.92/115	2.03/80	25.7	1.01	1226	824	698	469	270	195	270	270
4/0 AWG	2.92/115	2.03/80	27.2	1.07	1461	982	797	536	310	225	305	310
250 MCM	2.92/115	2.03/80	28.4	1.12	1669	1122	884	594	345	250	355	345
350 MCM	2.92/115	2.03/80	31.2	1.23	2192	1473	1094	735	415	305	430	430
500 MCM	2.92/115	2.03/80	35.1	1.38	2983	2005	1413	950	505	370	530	545
750 MCM	2.92/115	2.03/80	39.9	1.57	4261	2864	1895	1274	630	470	665	710
1000 MCM	2.92/115	2.03/80	45.2	1.78	5654	3800	2495	1677	720	545	770	855

8KV ICEA Single Core Cables EPR Insulated Cables MV-105

8KV 100% TO ICEA STANDARD
CONDUCTOR	INSULATION THICKNESS (MM/MILS)	SHEATH THICKNESS (MM/MILS)	OVERALL DIAMETER (MM/IN.)		CABLE WEIGHT (KG/KM / LBS/KFT)				AMPACITY (AMPS)
CONDUCTOR	INSULATION THICKNESS (MM/MILS)	SHEATH THICKNESS (MM/MILS)	OVERALL DIAMETER (MM/IN.)		CABLE WEIGHT (KG/KM / LBS/KFT)				90°C IN DUCT		90°C IN AIR
			(D)		CU		AL		CU	AL	CU	AL
4 AWG	2.92/115	2.03/80	36.1	1.42	1775	1193	1382	929	115	89	120	95
2 AWG	2.92/115	2.03/80	39.4	1.55	2254	1515	1629	1095	150	115	165	125
1 AWG	2.92/115	2.03/80	41.7	1.64	2662	1789	1785	1200	170	135	185	145
1/0 AWG	2.92/115	2.80/110	45.2	1.78	3211	2158	2126	1429	195	150	215	170
2/0 AWG	2.92/115	2.80/110	47.8	1.88	3709	2493	2447	1645	220	170	245	190
3/0 AWG	2.92/115	2.80/110	50.5	1.99	4376	2941	2729	1834	250	195	285	220
4/0 AWG	2.92/115	2.80/110	53.6	2.11	5137	3453	3074	2066	285	220	325	255
250 MCM	2.92/115	2.80/110	56.4	2.22	5807	3903	3382	2273	310	245	360	280
350 MCM	2.92/115	2.80/110	62.0	2.44	7546	5072	4161	2797	375	295	435	345
500 MCM	2.92/115	3.56/140	70.1	2.76	10175	6839	5349	3595	450	355	535	425
750 MCM	2.92/115	3.56/140	81.8	3.22	14624	9829	7372	4955	545	440	670	540
1000 MCM	2.92/115	3.56/140	90.2	3.55	18604	12504	9080	6103	615	510	770	635
8kV 133% to ICEA Standard
2 AWG	3.56/140	2.03/80	42.2	1.66	2415	1623	1791	1204	150	115	165	125
1 AWG	3.56/140	2.80/110	45.7	1.80	2979	2002	2102	1413	170	135	185	145
1/0 AWG	3.56/140	2.80/110	48.0	1.89	3395	2282	2311	1553	195	150	215	170
2/0 AWG	3.56/140	2.80/110	50.5	1.99	3901	2622	2639	1774	220	170	245	190
3/0 AWG	3.56/140	2.80/110	53.1	2.09	4576	3076	2929	1969	250	195	285	220
4/0 AWG	3.56/140	2.80/110	56.4	2.22	5347	3594	3285	2208	285	220	325	255
250 MCM	3.56/140	2.80/110	59.2	2.33	6027	4051	3602	2421	310	245	360	280
350 MCM	3.56/140	2.80/110	64.8	2.55	7784	5232	4399	2957	375	295	435	345
500 MCM	3.56/140	3.56/140	74.4	2.93	10682	7180	5856	3936	450	355	535	425
750 MCM	3.56/140	3.56/140	84.6	3.33	14929	10034	7679	5161	545	440	670	540
1000 MCM	3.56/140	3.56/140	93.0	3.66	18937	12728	9413	6327	615	510	770	635

15KV ICEA Three Core Cables XLPE Insulated Cables MV-90

15KV 100% TO ICEA STANDARD
CONDUCTOR	INSULATION THICKNESS (MM/ MILS)	SHEATH THICKNESS (MM/ MILS)	OVERALL DIAMETER (MM / IN.)		CABLE WEIGHT (KG/KM / LBS/KFT)				AMPACITY (AMPS)
CONDUCTOR	INSULATION THICKNESS (MM/ MILS)	SHEATH THICKNESS (MM/ MILS)	OVERALL DIAMETER (MM / IN.)		CABLE WEIGHT (KG/KM / LBS/KFT)				90°C IN DUCT		90°C IN AIR
			(D)		CU		AL		CU	AL	CU	AL
2 AWG	4.45/175	2.80/110	47.5	1.87	2809	1888	2186	1469	150	115	165	125
1 AWG	4.45/175	2.80/110	49.8	1.96	3242	2179	2366	1590	170	135	185	145
1/0 AWG	4.45/175	2.80/110	51.8	2.04	3669	2466	2583	1736	195	150	215	170
2/0 AWG	4.45/175	2.80/110	54.4	2.14	4185	2813	2924	1965	220	170	245	190
3/0 AWG	4.45/175	2.80/110	56.9	2.24	4873	3275	3226	2168	250	195	285	220
4/0 AWG	4.45/175	2.80/110	60.2	2.37	5658	3803	3595	2416	285	220	325	255
250 MCM	4.45/175	2.80/110	63.0	2.48	6350	4268	3925	2638	310	245	360	280
350 MCM	4.45/175	3.56/140	69.6	2.74	8226	5529	4841	3254	375	295	435	345
500 MCM	4.45/175	3.56/140	78.2	3.08	11080	7447	6253	4203	450	355	535	425
750 MCM	4.45/175	3.56/140	88.4	3.48	15374	10333	8122	5459	545	440	670	540
1000 MCM	4.45/175	3.56/140	97.5	3.84	19547	13138	10023	6737	615	510	770	635
15kV 133% to ICEA Standard
2 AWG	5.59/220	2.80/110	52.3	2.06	3160	2124	2537	1705	150	115	165	125
1 AWG	5.59/220	2.80/110	54.6	2.15	3606	2424	2729	1834	170	135	185	145
1/0 AWG	5.59/220	2.80/110	56.9	2.24	4045	2719	2959	1989	195	150	215	170
2/0 AWG	5.59/220	2.80/110	59.2	2.33	4575	3075	3313	2227	220	170	245	190
3/0 AWG	5.59/220	2.80/110	62.0	2.44	5279	3548	3632	2441	250	195	285	220
4/0 AWG	5.59/220	2.80/110	65.0	2.56	6082	4088	4019	2701	285	220	325	255
250 MCM	5.59/220	2.80/110	68.8	2.71	6884	4627	4459	2997	310	245	360	280
350 MCM	5.59/220	3.56/140	75.9	2.99	8954	6018	5569	3743	375	295	435	345
500 MCM	5.59/220	3.56/140	83.1	3.27	11617	7808	6790	4564	450	355	535	425
750 MCM	5.59/220	3.56/140	93.5	3.68	15969	10733	8717	5859	545	440	670	540
1000 MCM	5.59/220	3.56/140	102.6	4.04	20196	13574	10672	7173	615	510	770	635

25KV ICEA Three Core Cables EPR Insulated Cables MV-105

25KV 100% TO ICEA STANDARD
CONDUCTOR	INSULATION THICKNESS (MM/MILS)	SHEATH THICKNESS (MM/MILS)	OVERALL DIAMETER (MM / IN.)		CABLE WEIGHT (KG/KM / LBS/KFT)				AMPACITY (AMPS)
CONDUCTOR	INSULATION THICKNESS (MM/MILS)	SHEATH THICKNESS (MM/MILS)	OVERALL DIAMETER (MM / IN.)		CABLE WEIGHT (KG/KM / LBS/KFT)				90°C IN DUCT		90°C IN AIR
			(D)		CU		AL		CU	AL	CU	AL
1 AWG	6.60/260	2.80/110	57.9	2.28	4038	2714	3248	2183	185	145	210	165
1/0 AWG	6.60/260	2.80/110	60.2	2.37	4510	3031	3492	2347	210	165	240	185
2/0 AWG	6.60/260	2.80/110	62.2	2.45	5117	3439	3867	2599	235	185	275	215
3/0 AWG	6.60/260	2.80/110	65.5	2.58	5874	3948	4291	2884	270	210	315	245
4/0 AWG	6.60/260	3.56/140	68.6	2.70	6698	4502	4707	3164	305	240	360	285
250 MCM	6.60/260	3.56/140	72.9	2.87	7674	5158	5329	3582	335	265	400	315
350 MCM	6.60/260	3.56/140	78.5	3.09	9547	6417	6246	4198	400	315	490	385
500 MCM	6.60/260	3.56/140	85.1	3.35	12216	8211	7509	5047	485	385	600	475
750 MCM	6.60/260	3.56/140	96.0	3.78	16854	11328	9645	6483	585	475	745	600
1000 MCM	6.60/260	3.56/140	104.4	4.11	21054	14151	11611	7804	660	545	860	705
25kV 133% to ICEA Standard
1/0 AWG	8.76/345	3.56/140	72.1	2.84	5813	3907	4791	3220	210	165	240	185
2/0 AWG	8.76/345	3.56/140	74.2	2.92	6454	4338	5207	3500	235	185	275	215
3/0 AWG	8.76/345	3.56/140	76.7	3.02	7167	4817	5584	3753	270	210	315	245
4/0 AWG	8.76/345	3.56/140	79.8	3.14	8042	5405	6052	4068	305	240	360	285
250 MCM	8.76/345	3.56/140	82.6	3.25	8824	5931	6479	4355	335	265	400	315
350 MCM	8.76/345	3.56/140	87.9	3.46	10770	7239	7469	5020	400	315	490	385
500 MCM	8.76/345	3.56/140	95.5	3.76	13658	9180	8951	6016	485	385	600	475

1.8/3 kV RG7H1R RG7H1OR Medium Voltage Cable

Formation	Approx. conductor Ø	Average insulation thickness	Max. external Ø	Approx. cable weight	Current rating A
Formation	Approx. conductor Ø	Average insulation thickness	Max. external Ø	Approx. cable weight		in air	buried*
n° x mm2	mm	mm	mm	kg/km	trefoil	flat	trefoil	flat
1 x 10	4,0	2,0	14,0	290	87	111	99	104
1 x 16	4,8	2,0	15,0	350	114	145	126	133
1 x 25	6,0	2,0	16,0	450	149	190	162	171
1 x 35	7,0	2,0	17,0	550	181	230	193	204
1 x 50	8,1	2,0	18,5	670	219	276	227	241
1 x 70	9,7	2,0	20,5	880	275	345	278	294
1 x 95	11,4	2,0	22,0	1100	339	422	332	351
1 x 120	12,9	2,0	24,5	1400	393	487	377	399
1 x 150	14,3	2,0	26,0	1650	446	550	421	445
1 x 185	16,0	2,0	27,5	2000	516	635	477	500
1 x 240	18,3	2,0	30,0	2550	617	745	550	580
1 x 300	21,0	2,0	32,5	3150	709	855	621	650
1 x 400	23,2	2,0	35,5	3950	824	990	702	735
1 x 500	26,1	2,2	40,0	5050	954	1140	790	830
1 x 630	30,3	2,4	44,0	6300	1102	1300	885	930

PDF Download

Why Choose Us

Contact Us Immediately

Contact Us

Product Category

hot-sale product

6/10KV 12/20KV 18/30KV
Conductor: Сu and Al stranded compacted, according to IEC 60228 class 2 or VDE 0295 class 2
Inner Layer: Semi-conductive material
Insulation: XLPE (Cross-Linked Polyethylene)
Outer Layer: Semi-conductive material and tape
Screen: Copper wires and copper tape
Outer Sheath: PVC (Polyvinyl Chloride) or PE
Sheath Colour: Red

Conductor: Class 2 stranded copper or Class 1 solid /Class 2 stranded aluminium
Conductor Screen: Semi-conductive Cross-Linked Polyethylene (XLPE)
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Metallic Screen: Individual or overall copper tape
Separator: Binding Tape
Bedding: Polyvinyl Chloride (PVC) Or Low Smoke Zero Halogen (LSZH) compound
Armour: Single core cable: Aluminium Wire Armour (AWA)
Multi core cable: Steel Wire Armour (SWA)
Sheath: PVC or Medium Density Polyethylene (MDPE) Or LSZH

Conductor: Aluminum or copper, class 2,circular compacted conductors
Conductor screen: Non-metallic,semi-conducting compound
Insulation: Cross – Linked Polyethylene XLPE,Nominal Insulation Thickness or Reduced Insulation Thickness
Insulation screen: Non-metallic,semi-conducting compound
Metallic screen: Aluminium plastic tape (AL/PET）
Outer sheath: Polyolefin,PO (DMZ1,DMZ2,LSOH,LSZH),Black or Red

CU(AL)/XLPE/PO
Conductor: Aluminum, class 2, circular compacted conductors
Conductor screen: Non-metallic,semi-conducting compound
Insulation: Cross-Linked Polyethylene XLPE
Insulation screen: Non-metallic,semi-conducting compound
Metallic Screen: Copper Tape or Copper wire
Outer sheath: Polyvinyl,PO (DMZ1,DMZ2,LSOH,LSZH),Black or Red

About Us

Company Profile

Certification

Factory Tour
