LV & MV Aerial Bundle Cable (ABC Cable)

ABC Cable (Aerial Bundled Cable) Supplier/Manufacturer
LV MV Aerial Bundle Cables (ABC)
Aluminum (or Aluminum Alloy)stranded conductor (compacted),
XLPE (or HDPE) insulated,
AAC messenger core (AAAC or ACSR or Galvanized steel wire messenger core, bare or covered)
Twisted (or parallel) power cable
And we can still produce the cables according to the request or customers.

Application

ABC Cables usually has 3 cores plus neutral,the neutral can either be bare or insulated and the cable can have a street light of 16mm². ABC is available in 0.6/1kV, 6.35/11kV 12.7/22kV, 19/33kV.

Primarily used for overhead service applications such as street lighting, outdoor light and tempo-rary service for construction.
Aerial Bundle Cable is a very innovative concept for overhead power distribution as compared to the conventional bare conductor over- head distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.

This system is ideal for rural distribution and it is especially perfect for installation in difficult terrains such as hilly areas, forest areas, coastal areas etc. ABC is also considered to be ideal for power distribution in congested urban areas with narrow lanes and by-lanes.

Specifications

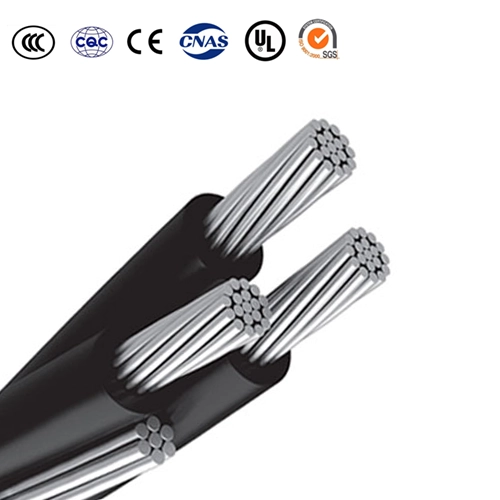

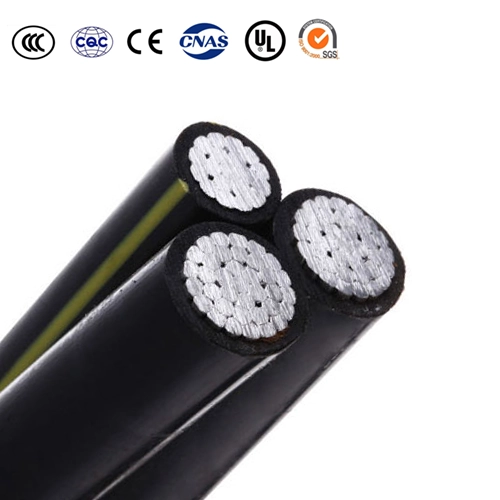

LV Overhead insulated Cable

0.6/1 kv abc–aerial bundled cables–nfc 33-209 (al/xlpe)
0.6/1 kv abc–aerial bundled cable-bs 7870-5 (al/xlpe)
0.6/1 kv abc-aerial bundled cable-iec 60502-1 (al/xlpe)
0.6/1 kv-abc aerial bundled cable-hd 626 s1 (al/xlpe)
0.6/1 kv abc (aerial bundled) cable- as/nzs 3560.1 (al/xlpe)
0.6/1 kv Service Drop Cable -ansi/icea s-76-474

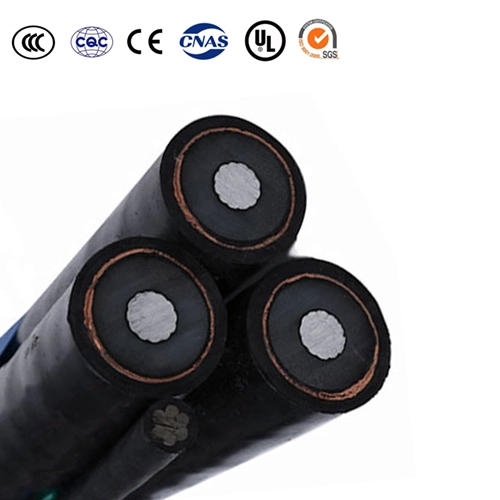

Medium Voltage ABC Cables

IEC 60502-2 MV ABC Cable
AS/NZS 3599.2 HV XLPE Insulated ABC Cable 6.35/11kV & 12.7/22kV
AS/NZS 3599.1 MV Aerial Bundled Cables

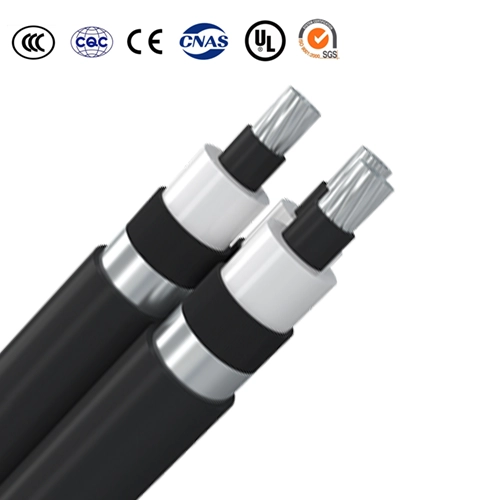

NFC 33-226 Cable HTA CIS Torsadé Souterrain 12/20(24)kV 18/30 (36) KV
SANS 1713 MV ABC Wire

Parameter

0.6/1 kv abc aerial bundled cables nfc 33-209

NUMBER OF CORES X NOMINAL CROSS SECTION	OVERAL DIAMETER	WEIGHT	MAXIMUM CONDUCTOR RESISTANCE	MINIMUM BREAKING LOAD	CURRENT RATING
NO.×MM²	MM	KG/KM	Ω/KM	KN	A
2×10 RM	12.8	93	3.080	1.5	38
4×10 RM	15.4	183	3.080	1.5	38
2×16 RM	14.8	129	1.910	2.3	72
2×16 RN + 2×1.5 RE	14.8	176	1.910/12.100	2.3	72
4×16 RM	17.8	257	1.910	2.3	72
4×16 RN + 2×1.5 RE	17.8	304	1.910/12.100	2.3	72
2×25 RM	18.0	202	1.200	3.8	107
2×25 RM + 2×1.5 RE	18.0	249	1.200/12.100	3.8	107
4×25 RM	21.7	404	1.200	3.8	107
4×25 RM + 2×1.5 RE	21.7	451	1.200/12.100	3.8	107
2×35 RM	20.8	269	0.868	5.2	132
2×35 RM + 2×1.5 RE	20.8	316	0.868/12.100	5.2	132
4×35 RM	25.1	539	0.868	5.2	132
4×35 RM + 2×1.5 RE	25.1	586	0.868/12.100	5.2	132
2×50 RM	23.4	352	0.641	7.6	165
2×50 RM + 2×1.5 RE	23.4	399	0.641/12.100	7.6	165
1×54.6 RM + 3×25 RM	21.7	507	0.630/1.200	3.8	107
1×54.6 RM + 3×25 RM + 1×16 RM	24.3	573	0.630/1.200/1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 2×16 RM	29.7	639	0.630/1.200/1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 3×16 RM	31.1	705	0.630/1.200/1.910	3.8/2.3	107/72
1×54.6 RM + 3×35 RM	25.1	615	0.630/0.868	5.2	132
1×54.6 RM + 3×35 RM + 1×16 RM	28.1	680	0.630/0.868/1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 2×16 RM	34.3	748	0.630/0.868/1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 3×16 RM	35.9	814	0.630/0.868/1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 1×25 RM	28.1	714	0.630/0.868/1.200	5.2/3.8	132/107
1×54.6 RM + 3×50 RM	28.2	741	0.630/0.641	7.6	165
1×54.6 RM + 3×50 RM + 1×16 RM	31.6	806	0.630/0.641/1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 2×16 RM	38.6	875	0.630/0.641/1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 3×16 RM	40.4	940	0.630/0.641/1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 1×25 RM	31.6	841	0.630/0.641/1.200	7.6/3.8	165/107
1×54.6 RM + 3×70 RM	33.0	950	0.630/0.443	10.2	205
1×54.6 RM + 3×70 RM + 1×16 RM	37.0	1014	0.630/0.443/1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 2×16 RM	45.2	1083	0.630/0.443/1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 3×16 RM	47.3	1148	0.630/0.443/1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 1×25 RM	37.0	1048	0.630/0.443/1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 2×25 RM	45.2	1150	0.630/0.443/1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 3×25 RM	47.3	1250	0.630/0.443/1.200	10.2/3.8	205/107
1×54.6 RM + 3×95 RM	37.4	1176	0.630/0.320	13.5	240
1×54.6 RM + 3×95 RM + 1×16 RM	41.9	1243	0.630/0.320/1.910	13.5/2.3	240/72

Other cross-sections can be offered upon request.

0.6/1 kv abc aerial bundled cable bs 7870-5

NUMBER OF CORES X NOMINAL CROSS SECTION	OVERALL DIAMETER	WEIGHT	MAXIMUM CONDUCTOR RESISTANCE	MINIMUM BREAKING LOAD	CURRENT RATING
NO.×MM²	MM	KG/KM	Ω/KM	KN	A
1×16 RM	8.0	74	1.910	2.5	72
1×25 RM	9.0	106	1.200	4.0	107
1×35 RM	10.5	138	0.868	5.5	132
1×50 RM	11.8	182	0.641	8.0	165
1×70 RM	13.0	252	0.443	10.7	205
1×95 RM	15.4	333	0.320	13.7	240
1×120 RM	17.0	408	0.253	18.6	290
1×150 RM	19.0	502	0.206	23.2	334
1×185 RM	21.0	611	0.164	28.7	389
1×240 RM	24.0	801	0.125	37.2	467
2×16 RM	15.6	147	1.910	2.5	72
2×25 RM	18.0	208	1.200	4.0	107
2×35 RM	20.0	277	0.868	5.5	132
2×50 RM	23.5	361	0.641	8.0	165
2×70 RM	25.4	505	0.443	10.7	205
2×95 RM	30.3	666	0.320	13.7	240
2×150 RM	38.0	1004	0.206	23.2	334
4×16 RM	18.8	286	1.910	2.5	72
4×25 RM	21.2	430	1.200	4.0	107
4×35 RM	24.1	553	0.868	5.5	132
4×50 RM	27.8	746	0.641	8.0	165
4×70 RM	31.8	1009	0.443	10.7	205
4×95 RM	37.8	1332	0.320	13.7	240
4×120 RM	54.4	1632	0.253	18.6	290
4×50 + 1×25 RM	31.9	814	0.641/1.200	8.0/4.0	165/107
4×50 + 1×35 RM	31.9	845	0.641/0.868	8.5/5.5	165/132
4×70 + 1×25 RM	36.0	1105	0.443/1.200	10.7/4.0	205/107
4×70 + 2×25 RM	40.0	1217	0.443/1.200	10.7/4.0	205/107
4×95 + 1×25 RM	41.8	1438	0.320/1.200	13.7/4.0	240/107
4×95 + 2×25 RM	42.0	1544	0.320/1.200	13.7/4.0	240/107
4×120 + 1×25 RM	59.0	2050	0.253/1.200	18.6/4.0	290/107

0.6/1 kv abc aerial bundled cable iec 60502

Section Area	Phase Core				Neutral Core				Complete Cable
Section Area	Section Area	No. of Wires	Conductor Diameter	Insulation Thickness	Section Area	No. of Wire	Conductor Diameter	Insulation Thickness	Approx. Diameter	Approx. Weight
mm2	mm2	No.	mm	mm	mm2	No.	mm	mm	mm	kg/km
1×10	1×10	7	4.05	1.0	–	–	–	–	6.1	43
1×16	1×16	7	4.8	1.2	–	–	–	–	7.2	64
1×25	1×25	7	6	1.2	–	–	–	–	8.4	92
1×35	1×35	7	7	1.4	–	–	–	–	9.8	127
1×50	1×50	7	8.1	1.4	–	–	–	–	11.1	165
1×70	1×70	19	10	1.4	–	–	–	–	12.8	230
1×95	1×95	19	11.6	1.6	–	–	–	–	14.8	315
1×120	1×120	19	13	1.6	–	–	–	–	16.2	390
1×150	1×150	19	14.6	1.8	–	–	–	–	18.2	476
1×185	1×185	37	16.2	2	–	–	–	–	20.2	609
2×10	2×10	7	4	1	–	–	–	–	12.2	85
2×16	2×16	7	4.8	1.2	–	–	–	–	14.4	128
2×25	2×25	7	6	1.2	–	–	–	–	16.8	184
2×35	2×35	7	7	1.4	–	–	–	–	19.6	255
2×50	2×50	7	8.1	1.4	–	–	–	–	22.2	329
2×70	2×70	19	10	1.4	–	–	–	–	25.6	459
3×10	3×10	7	4	1	–	–	–	–	13.1	128
3×16	3×16	7	4.8	1.2	–	–	–	–	17.4	192
3×25	3×25	7	6	1.2	–	–	–	–	20.3	276
3×35	3×35	7	7	1.4	–	–	–	–	21.1	382
3×50	3×50	7	8.1	1.4	–	–	–	–	23.9	494
3×70	3×70	19	10	1.4	–	–	–	–	27.6	688
3×95	3×95	19	11.6	1.6	–	–	–	–	31.9	943
3×120	3×120	19	13	1.6	–	–	–	–	34.9	1170
4×10	4×10	7	4	1	–	–	–	–	14.6	171
4×16	4×16	7	4.8	1.2	–	–	–	–	17.4	256
4×25	4×25	7	6	1.2	–	–	–	–	20.3	368
4×35	4×35	7	7	1.4	–	–	–	–	23.7	509
4×50	4×50	7	8.1	1.4	–	–	–	–	26.8	659
4×70	4×70	19	10	1.4	–	–	–	–	30.9	917
4×95	4×95	19	11.6	1.6	–	–	–	–	35.8	1258
4×120	4×120	19	13	1.6	–	–	–	–	39.1	1559
1×16+16	1×16	7	4.8	1.2	1×16	7	5.1	–	12.3	108
1×25+25	1×25	7	6	1.2	1×25	7	6.3	–	14.7	158
1×35+35	1×35	7	7	1.4	1×35	7	7.5	–	17.3	221
1×50+50	1×50	7	8.4	1.4	1×50	7	9	–	20.1	300
2×16+16	2×16	7	4.8	1.2	1×16	7	5.1	–	15.5	172
2×25+25	2×25	7	6	1.2	1×25	7	6.3	–	18.1	250
2×35+35	2×35	7	7	1.4	1×35	7	7.5	–	21.1	348
2×50+50	2×50	7	8.3	1.4	1×50	7	9	–	22.4	464
3×16+16	3×16	7	4.8	1.2	1×16	7	5.1	–	17.4	235
3×25+25	3×25	7	6	1.2	1×25	7	6.3	–	20.3	342
3×35+35	3×35	7	7	1.4	1×35	7	7.5	–	23.7	475
3×50+50	3×50	7	8.1	1.4	1×50	7	9	–	26.8	629
3×70+70	3×70	19	10	1.4	1×70	19	10.5	–	30.9	869
3×95+95	3×95	19	11.6	1.6	1×95	19	12.5	–	35.7	1200
3×35+16	3×35	7	7	1.4	1×16	7	4.8	–	22.2	445
3×50+25	3×50	7	8.1	1.4	1×25	7	6	–	24.8	585
3×70+35	3×70	19	10	1.4	1×35	7	7	–	30.9	815
3×95+50	3×95	19	11.6	1.6	1×50	7	8.1	–	35.7	1108
4×95+35	4×95	19	11.6	1.6	1×35	7	7	–	39.9	1385
3×120+70	3×120	19	13	1.6	1×70	19	10	–	39.1	1399

TNB ABC Cable AL/PE NUMBER OF CORES X NOMINAL CROSS SECTION	OVERAL DIAMETER	WEIGHT	MAXIMUM CONDUCTOR RESISTANCE	MINIMUM BREAKING LOAD	CURRENT RATING
NO.×MM²	MM	KG/KM	Ω/KM	KN	A
1×16+1×25 RM	15.3	160	1.910	2.5	72
3×16+1×25 RM	19.0	290	1.200	4.0	107
3×25+1×25 RM	23.2	400	0.868	5.5	132
3×35+1×25 RM	25.6	500	0.641	8.0	165
3×50+1×35 RM	30.0	680	0.443	10.7	205
3×70+1×50 RM	34.9	920	0.320	13.7	240
3×95+1×70 RM	40.6	1270	0.253	18.6	290
3×120+1×70 RM	44.1	1510	0.206	23.2	334
3×150+1×95 RM	49.2	1870	0.164	28.7	389
3×185+1×120 RM	54.9	2340	0.125	37.2	467
3×25+1×25+1×16 RM	23.2	470	1.910	2.5	72
3×35+1×25+1×16 RM	25.6	560	1.200	4.0	107
3×50+1×35+1×16 RM	30.0	740	0.868	5.5	132
3×70+1×50+1×16 RM	34.9	980	0.641	8.0	165
3×95+1×70+1×16 RM	40.6	1330	0.443	10.7	205
3×120+1×70+1×16 RM	44.1	1580	0.320	13.7	240
3×150+1×95+1×16 RM	49.2	1940	0.206	23.2	334
3×185+1×120+1×16 RM	54.9	2410	1.910	2.5	72

DES/LVC/ABC AL/XLPE Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm²	kN	A	mm	kg/km
4×25 RM	3.5	84	21.5	420
4×35 RM	4.9	104	23.9	550
4×120+1×25 RM	16.8	246	43.8	1800
4×185+1×25 RM	25.9	332	50.7	2700

0.6/1 kv abc aerial bundled cable hd 626 s1

NUMBER OF CORES X NOMINAL CROSS SECTION	OUTER DIAMETER	TOTAL WEIGHT	MAX. CONDUCTOR- RESISTANCE	MIN. BREAKING LOAD OF CONDUCTOR STRAND	CURRENT RATING IN THE AIR 1)
MM2	CA. MM	CA. KG/KM	OHM/KM	KN	A
2x 16 RM	15.6	147	1.910	2.5	72
2x 25 RM	18.0	208	1.200	4.0	107
2x 35 RM	20.0	277	0.868	5.5	132
2x 50 RM	23.5	361	0.641	8.0	165
4x 16 RM	18.8	286	1.910	2.5	72
4x 25 RM	21.2	430	1.200	4.0	107
4x 35 RM	24.1	553	0.868	5.5	132
4x 50 RM	27.8	746	0.641	8.0	165
4x 70 RM	31.8	1009	0.443	10.7	205
4x 95 RM	37.8	1332	0.320	13.7	240
4x 120 RM	54.4	1632	0.253	18.6	290
4x 35 + 1x 35 RM	30.0	694	0.868/0.868	5.5/5.5	132/132
4x 50 + 1x 25 RM	31.9	814	0.641/1.200	8.0/4.0	165/107
4x 50 + 1x 35 RM	31.9	845	0.641/0.868	8.5/5.5	165/132
4x 70 + 1x 25 RM	36.0	1105	0.443/1.200	10.7/4.0	205/107
4x 70 + 2x 25 RM	40.0	1217	0.443/1.200	10.7/4.0	205/107
4x 70 + 1x 35 RM	36.2	1150	0.443/0.868	10.7/5.5	205/132
4x 70 + 2x 35 RM	40.1	1289	0.443/0.868	10.7/5.5	205/132
4x 95 + 1x 25 RM	41.8	1438	0.320/1.200	13.7/4.0	240/107
4x 95 + 1x 35 RM	41.8	1467	0.320/0.868	13.7/5.5	240/132
4x 95 + 2x 25 RM	42.0	1544	0.320/1.200	13.7/4.0	240/107

0.6/1 kv abc (aerial bundled) cable as/nzs 3560.1

NUMBER OF CORES X NOMINAL CROSS SECTION	OVERALL DIAMETER	WEIGHT	MINIMUM BREAKING LOAD	CURRENT RATING
NO.×MM²	MM	KG/KM	KN	A
2×16 RM	15.0	140	4.4	78
2×25 RM	17.6	210	7.0	105
2×35 RM	19.6	270	9.8	125
2×50 RM	22.8	370	11.4	150
2×95 RM	30.6	680	15.3	230
3×25 RM	19.0	310	8.8	97
3×35 RM	21.1	410	9.8	120
3×50 RM	24.6	550	11.4	140
4×16 RM	18.1	290	8.8	74
4×25 RM	21.2	410	14.0	97
4×35 RM	23.7	550	19.6	120
4×50 RM	27.5	740	28.0	140
4×70 RM	31.9	1000	39.2	175
4×95 RM	36.9	1370	53.2	215
4×120 RM	40.6	1690	67.2	250
4×150 RM	43.9	2020	84.0	280

0.6/1 kv Service Drop Cable -ansi/icea s-76-474

Duplex Service Drop – Aluminum Conductors

Code Word	Phase Conductor			Bare Neutral Messenger			Approx. Diameter of Cable	Approx. Weight
	Size	No. of wires	Nominal Insulation Thickness	Size	No. of Wires	Diameter of Wires	Approx. Diameter of Cable	Approx. Weight
	AWG or Kcmil	No.	mm	AWG or Kcmil	No.	mm	mm	kg/km
AAC/XLPE+AAC
Pekingese	6	1	1.14	6	7	1.56	11.1	92
Collie	6	7	1.14	6	7	1.56	11.5	94
Cocker	6	7	1.52	6	7	1.56	12.2	100
Dachshund	4	1	1.14	4	7	1.96	13.4	140
Spaniel	4	7	1.14	4	7	1.96	13.9	143
Cairn	4	7	1.52	4	7	1.96	14.6	150
Doberman	2	7	1.14	2	7	2.47	16.9	220
Airedale	1	19	1.52	1	7	2.78	19.6	280
Basset	1/0	7	1.52	1/0	7	3.12	21.8	355
Malemute	1/0	19	1.52	1/0	7	3.12	21.6	350
AAC/XLPE+AAAC
Chihuahua	6	1	1.14	30.58	7	1.68	11.4	98
Vizsla	6	7	1.14	30.58	7	1.68	11.8	100
Harrier	4	1	1.14	48.69	7	2.12	13.8	149
Whippet	4	7	1.14	48.69	7	2.12	14.4	154
Schnauzer	2	7	1.14	77.47	7	2.67	17.5	235
Afghan	1/0	7	1.52	123.3	7	3.37	22.5	378
Heeler	1/0	19	1.52	123.3	7	3.37	22.3	375
AAC/XLPE+ACSR
Setter	6	1	1.14	6	6 / 1	1.68	11.4	109
Shepherd	6	7	1.14	6	6 / 1	1.68	11.8	112
Retriever	6	7	1.52	6	6 / 1	1.68	12.6	119
Eskimo	4	1	1.14	4	6 / 1	2.12	13.8	166
Terrier	4	7	1.14	4	6 / 1	2.12	14.4	170
Yorkshire	4	7	1.52	4	6 / 1	2.12	15.1	180
Chow	2	7	1.14	2	6 / 1	2.67	17.5	262
Labrador	1	19	1.52	1	6 / 1	3.00	20.2	339
Bloodhound	1/0	7	1.52	1/0	6 / 1	3.37	22.5	425
Bull	1/0	19	1.52	1/0	6 / 1	3.37	22.3	422

Triplex Service Drop – Aluminum Conductors

Code Word	Phase Conductor			Bare Neutral Messenger			Approx. Diameter of Cable	Approx. Weight
	Size	No. of Wires	Nominal Insulation Thickness	Size	No. of Wires	Diameter of Wires	Approx. Diameter of Cable	Approx. Weight
	AWG or Kcmil	No.	mm	AWG or Kcmil	No.	mm	mm	kg/km
AAC/XLPE+AAC
Haiotis	6	1	1.14	6	7	1.56	12.6	148
Pike	6	7	0.76	6	7	1.56	12.1	139
Patella	6	7	1.14	6	7	1.56	13.2	154
Albus	6	7	1.52	6	7	1.56	14.3	170
Fusus	4	1	1.14	4	7	1.96	15.0	221
Limpet	4	7	1.14	6	7	1.56	14.9	208
Oyster	4	7	1.14	4	7	1.96	15.8	230
Argo	4	7	1.52	4	7	1.96	16.9	249
Clam	2	7	1.14	2	7	2.47	19.0	347
Thia	2	7	1.52	2	7	2.47	20.1	370
Mussel	2	7	1.14	4	7	1.96	17.9	312
Pyrula	1	7	1.52	1	7	2.78	22.4	465
Hyas	1	19	1.52	1	7	2.78	22.2	450
Snail	1/0	7	1.52	2	7	2.47	23.2	517
Murex	1/0	7	1.52	1/0	7	3.12	24.6	572
Purpura	1/0	19	1.52	1/0	7	3.12	24.4	554
Nassa	2/0	7	1.52	2/0	7	3.50	27.1	706
Trophon	2/0	19	1.52	2/0	7	3.50	26.8	684
Quahog	3/0	7	2.03	3/0	7	3.93	31.3	920
Ione	3/0	19	2.03	3/0	7	3.93	31.0	892
Melita	3/0	19	1.52	3/0	19	2.39	29.7	845
Coquina	4/0	7	1.52	4/0	7	4.42	33.0	1082
Tusk	4/0	7	2.03	4/0	7	4.42	34.5	1134
Apus	4/0	19	2.03	4/0	7	4.42	34.1	1098
Portunus	4/0	19	2.03	4/0	19	2.68	34.2	1098
Chiton	266.8	19	2.03	266.8	19	3.01	38.4	1379
Alverno	300	37	2.03	4/0	19	2.68	37.8	1386
Nannynose	336.4	19	2.03	336.4	19	3.38	42.4	1707
AAC/XLPE+AAAC
Minex	6	1	1.14	30.58	7	1.68	12.8	154
Hippa	6	7	1.14	30.58	7	1.68	13.4	160

Code Word	Phase Conductor			Bare Neutral Messenger			Approx. Diameter of Cable	Approx. Weight
	Size	No. of Wires	Nominal Insulation Thickness	Size	No. of Wires	Diameter of Wires	Approx. Diameter of Cable	Approx. Weight
	AWG or Kcmil	No.	mm	AWG or Kcmil	No.	mm	mm	kg/km
AAC/XLPE+AAAC
Artemia	4	1	1.14	30.58	7	1.68	14.4	205
Crad	4	7	1.14	30.58	7	1.68	15.2	214
Prawn	4	1	1.14	48.69	7	2.12	15.3	231
Barnacle	4	7	1.14	48.69	7	2.12	16.1	239
Solaster	2	7	1.14	48.69	7	2.12	18.2	322
Pagurus	2	7	1.52	48.69	7	2.12	19.3	345
Shrimp	2	7	1.14	77.47	7	2.67	19.4	362
Lobster	2	7	1.52	77.47	7	2.67	20.5	385
Sanderab	1/0	7	1.52	77.47	7	2.67	23.6	532
Echinus	1/0	19	1.52	77.47	7	2.67	23.4	514
Gammarus	1/0	7	1.52	123.3	7	3.37	25.1	597
Leda	1/0	19	1.52	123.3	7	3.37	24.9	579
Crayfish	2/0	7	1.52	97.65	7	3.00	26.0	655
Sipho	2/0	19	1.52	97.65	7	3.00	25.7	633
Abalone	2/0	7	1.52	123.3	7	3.37	26.8	691
Spirula	2/0	19	1.52	123.3	7	3.37	26.5	669
Dungenese	2/0	7	1.52	155.4	7	3.78	27.7	736
Cyclops	2/0	19	1.52	155.4	7	3.78	27.4	714
Slug	3/0	7	1.52	123.3	7	3.37	28.6	809
Fulgur	3/0	19	1.52	123.3	7	3.37	28.4	781
Balanus	3/0	19	2.03	123.3	7	3.37	29.8	828
Stonecrab	3/0	7	1.52	195.7	7	4.25	30.5	904
Flustra	3/0	19	1.52	195.7	7	4.25	30.3	884
Crisia	3/0	19	2.03	195.7	7	4.25	31.7	931
Squid	4/0	7	1.52	155.4	7	3.78	31.6	1001
Arca	4/0	19	1.52	155.4	7	3.78	31.3	966
Bugula	4/0	19	2.03	155.4	7	3.78	32.7	1018
Kingcrab	4/0	7	1.52	246.9	7	4.77	33.8	1131
Lepas	4/0	19	1.52	246.9	7	4.77	33.4	1096
Cassis	4/0	19	2.03	246.9	7	4.77	34.9	1147
Cyphoma	4/0	7	1.52	123.3	7	3.37	30.8	957
Mitre	4/0	19	1.52	123.3	7	3.37	30.4	921
Argonaut	336.4	19	2.03	246.9	7	4.77	40.5	1579
Nautilis	336.4	19	2.03	394.5	19	3.66	43.4	1787

Code Word	Phase Conductor			Bare Neutral Messenger			Approx. Diameter of Cable	Approx. Weight
	Size	No. of Wires	Nominal Insulation Thickness	Size	No. of wires	Diameter of Wires	Approx. Diameter of Cable	Approx. Weight
	AWG or Kcmil	No.	mm	AWG or Kcmil	No.	mm	mm	kg/km
AAC/XLPE+ACSR
Paludina	6	1	1.14	6	6 / 1	1.68	12.8	165
Voluta	6	7	1.14	6	6 / 1	1.68	13.4	171
Bolma	6	7	1.52	6	6 / 1	1.68	14.5	188
Scallop	4	1	1.14	6	6 / 1	1.68	14.4	217
Strombus	4	7	1.14	6	6 / 1	1.68	15.1	225
Carnea	4	7	1.52	6	6 / 1	1.68	16.2	244
Whelk	4	1	1.14	4	6 / 1	2.12	15.3	249
Periwinkle	4	7	1.14	4	6 / 1	2.12	16.1	257
Calma	4	7	1.52	4	6 / 1	2.12	17.2	277
Cockle	2	7	1.14	4	6 / 1	2.12	18.2	340
Gebia	2	7	1.52	4	6 / 1	2.12	19.3	363
Conch	2	7	1.14	2	6 / 1	2.67	19.4	391
Uca	2	7	1.52	2	6 / 1	2.67	20.5	414
Vermeths	1	7	1.52	1	6 / 1	3.00	22.9	520
Atya	1	19	1.52	1	6 / 1	3.00	22.6	506
Janthina	1/0	7	1.52	2	6 / 1	2.67	23.6	561
Ranella	1/0	19	1.52	2	6 / 1	2.67	23.4	543
Neritina	1/0	7	1.52	1/0	6 / 1	3.37	25.1	642
Cenia	1/0	19	1.52	1/0	6 / 1	3.37	24.9	624
Cavolinia	2/0	7	1.52	1	6 / 1	3.00	26.0	691
Clio	2/0	19	1.52	1	6 / 1	3.00	25.7	669
Runcina	2/0	7	1.52	2/0	6 / 1	3.78	27.7	794
Triton	2/0	19	1.52	2/0	6 / 1	3.78	27.4	772
Sanddollar	3/0	7	1.52	1/0	6 / 1	3.37	28.6	854
Aega	3/0	19	1.52	1/0	6 / 1	3.37	28.4	827
Pisa	3/0	19	2.03	1/0	6 / 1	3.37	29.8	874
Cherrystone	3/0	7	1.52	3/0	6 / 1	4.25	30.5	983
Mursia	3/0	19	1.52	3/0	6 / 1	4.25	30.3	956
Mysis	3/0	19	2.03	3/0	6 / 1	4.25	31.7	1003
Cuttlefish	4/0	7	1.52	2/0	6 / 1	3.78	31.7	1059

Code Word	Phase Conductor			Bare Neutral Messenger			Approx. Diameter of Cable	Approx. Weight
	Size	No. of Wires	Nominal Insulation Thickness	Size	No. of wires	Diameter of Wires	Approx. Diameter of Cable	Approx. Weight
	AWG or Kcmil	No.	mm	AWG or Kcmil	No.	mm	mm	kg/km
AAC/XLPE+ACSR
Cerapus	4/0	19	1.52	2/0	6 / 1	3.78	31.3	1024
Nepatus	4/0	19	2.03	2/0	6 / 1	3.78	32.7	1075
Razor	4/0	7	1.52	4/0	6 / 1	4.77	33.8	1222
Zuzara	4/0	19	1.52	4/0	6 / 1	4.77	33.4	1187
Alima	4/0	19	2.03	4/0	6 / 1	4.77	34.9	1238
Callista	266.8	19	2.03	3/0	6 / 1	4.25	36.7	1350
Dosinia	266.8	19	2.03	266.8	18 / 1	3.09	38.7	1438
Cowry	336.4	19	2.03	4/0	6 / 1	4.77	40.5	1670
Limpet	336.4	19	2.03	336.4	18 / 1	3.47	42.7	1782

Quadruplex Service Drop – Aluminum Conductors

Code Word	Phase Conductor			Bare Neutral Messenger			Approx. Diameter of Cable	Approx. Weight
	Size	No. of Wires	Nominal Insulation Thickness	Size	No. of wires	Diameter of Wires	Approx. Diameter of Cable	Approx. Weight
	AWG or Kcmil	No.	mm	AWG or Kcmil	No.	mm	mm	kg/km
AAC/XLPE+AAC
Quarter	6	1	1.14	6	7	1.56	14.4	203
Clydesdate	4	1	1.14	4	7	1.96	17.1	302
Pinto	4	7	1.14	4	7	1.96	18.1	315
Mustang	2	7	1.14	2	7	2.47	21.7	474
Shire	1	19	1.52	1	7	2.78	25.4	616
Libyan	1/0	7	1.52	1/0	7	3.12	28.2	784
Criollo	1/0	19	1.52	1/0	7	3.12	27.9	757
Orloff	2/0	7	1.52	2/0	7	3.50	30.9	965
Percheron	2/0	19	1.52	2/0	7	3.50	30.6	931
Mongolian	3/0	7	1.52	3/0	7	3.93	34.1	1190
Hanoverian	3/0	19	1.52	3/0	19	2.39	33.8	1148
Singlefoot	4/0	7	1.52	4/0	7	4.42	37.6	1474
Oldenburg	4/0	19	1.52	4/0	19	2.68	37.2	1421
Lippizaner	336.4	19	2.03	336.4	19	3.38	48.3	2322
AAC/XLPE+AAAC
Bay	6	1	1.14	30.58	7	1.68	14.7	209
French-Coach	6	7	1.14	30.58	7	1.68	15.4	218
German-Coach	4	1	1.14	48.69	7	2.12	17.4	312
Arabian	4	7	1.14	48.69	7	2.12	18.4	324
Belgian	2	7	1.14	77.47	7	2.67	22.0	489
Viatka	1/0	7	1.52	77.47	7	2.67	27.4	743
Thoroughbred	2/0	19	1.52	155.4	7	3.78	31.1	962
Celtic	2/0	7	1.52	123.3	7	3.37	30.7	950
Norman	2/0	19	1.52	123.3	7	3.37	30.3	917
Donkey	3/0	7	1.52	123.3	7	3.37	33.0	1126
Burro	3/0	19	1.52	123.3	7	3.37	32.7	1085
Dobbin	3/0	7	1.52	195.7	7	4.25	34.6	1229
Trotter	3/0	19	1.52	195.7	7	4.25	34.3	1188
Roan	4/0	7	1.52	123.3	7	3.37	35.7	1348
Gotland	4/0	19	1.52	123.3	7	3.37	35.2	1295
Bali	4/0	7	1.52	155.4	7	3.78	36.5	1393
Skyros	4/0	19	1.52	155.4	7	3.78	36.0	1340
Pony	4/0	7	1.52	246.9	7	4.77	38.3	1522

Code Word	Phase Conductor			Bare Neutral Messenger			Approx. Diameter of Cable	Approx. Weight
	Size	No. of Wires	Nominal Insulation Thickness	Size	No. of Wires	Diameter of Wires	Approx. Diameter of Cable	Approx. Weight
	AWG or Kcmil	No.	mm	AWG or Kcmil	No.	mm	mm	kg/km
AAC/XLPE+AAAC
Walking	4/0	19	1.52	246.9	7	4.77	37.8	1470
Exmoor	336.4	19	2.03	246.9	19	2.89	46.8	2193
Breton	336.4	19	2.03	394.5	19	3.66	49.1	2402
AAC/XLPE+ACSR
Morochuca	6	1	1.14	6	6 / 1	1.68	14.7	221
Chola	6	7	1.14	6	6 / 1	1.68	15.4	229
Morgan	4	1	1.14	4	6 / 1	2.12	17.4	330
Hackney	4	7	1.14	4	6 / 1	2.12	18.4	342
Palomino	2	7	1.14	2	6 / 1	2.67	22.0	518
Albino	1	19	1.52	1	6 / 1	3.00	25.8	672
Standardbred	1/0	7	1.52	1/0	6 / 1	3.37	28.6	854
Costena	1/0	19	1.52	1/0	6 / 1	3.37	28.3	827
Chicoteagues	2/0	7	1.52	2/0	6 / 1	3.78	31.5	1053
Grullo	2/0	19	1.52	2/0	6 / 1	3.78	31.1	1022
Mare	3/0	7	1.52	3/0	6 / 1	4.25	34.6	1301
Suffolk	3/0	19	1.52	3/0	6 / 1	4.25	34.3	1260
Stallion	4/0	7	1.52	4/0	6 / 1	4.77	38.3	1614
Appaloosa	4/0	19	1.52	4/0	6 / 1	4.77	37.8	1561
Gelding	336.4	19	2.03	4/0	6 / 1	4.77	46.7	2285
Bronco	336.4	19	2.03	336.4	18 / 1	3.47	48.6	2396

IEC 60502-2 6.35/11kV, 12.7/22kV and 19/33kV MV ABC Cable

6.35/11 kV ABC for Overhead Distribution Lines

Number of Cores xNominal Cross Section	Phase Conductor			Messenger Suspension Unit			Continuous current rating at 300C ambient temp
Number of Cores xNominal Cross Section	Stranding	Nominal Sectional Area	Maximum Conductor Resistance	Stranding	Nominal Sectional Area	Breaking Load	Continuous current rating at 300C ambient temp
No.×mm^2	No.×mm	mm^2	Ω/Km	No.×mm	mm^2	KN	A
3X50 + 1X25	19/1.78	50	0.641	7/3.0	50	60	116
3X70 + 1X50	19/.14	70	0.443	7/3.15	50	62	210
3X95+ 1X50	19/2.52	95	0.32	7/3.0	50	60	173
3X185+1X120	37/2.52	185	0.164	7/4.67	120	150	259
3X150 +1X50	37/2.25	150	0.206	7/3.15	50	62	365
3X240 +1X50	61/2.25	240	0.125	7/3.15	50	62	500

Other cross-sections can be offered upon request.
IEC 60502 19/33 kV ABC for Overhead Distribution Lines

Number of Cores xNominal Cross Section	Phase Conductor			Messenger Suspension Unit			Continuous current rating at 300C ambient temp
Number of Cores xNominal Cross Section	Stranding	Nominal Sectional Area	Maximum Conductor Resistance	Stranding	Nominal Sectional Area	Breaking Load	Continuous current rating at 300C ambient temp
No.×mm^2	No.×mm	mm^2	Ω/Km	No.×mm	mm^2	KN	A
3X50 + 1X50	19/1.78	50	0.641	7/3.0	50	60	165
3X150+ 1X50	37/2.25	150	0.206	7/3.0	50	60	315
3X185+1X70	37/2.52	185	0.164	7/3.57	70	91	355
3X70 +1X50	19/2.14	7	0.443	7/3.15	50	62	250
3X150 +1X50	37/2.25	150	0.206	7/3.15	50	62	370

AS/NZS 3599.2 HV XLPE Insulated ABC Cable 6.35/11kV & 12.7/22kV

11kV 22kV XLPE Non Metallic Screened Aerial Cable Physical Data
Nominal conductor area	Nominal conductor diameter	Average insulation thickness	Nominal diameter over insulation	Average insulation screen thickness	Nominal diameter over core	AAAC/1 1 20 support conductor		Nominal overall diameter	Approx mass
mm2	mm	mm	mm	mm	mm	Size no/mm	Diameter mm	mm	kg/km
6.35/11kV
35	6.9	3.4	14.9	1	17.1	7/4.75	14.3	48.4	1170
50	8.1	3.4	16	1	18.2	7/4.75	14.3	50.7	1320
70	9.6	3.4	17.6	1	19.8	7/4.75	14.3	53.9	1560
95	11.4	3.4	19.3	1	21.5	7/4.75	14.3	57.3	1860
120	12.8	3.4	20.7	1	22.9	19/3.50	17.5	63.3	2280
150	14.2	3.4	22.1	1	24.3	19/3.50	17.5	66.2	2570
185	15.7	3.4	23.6	1	25.8	19/3.50	17.5	69.2	2890
12.7/22kV
35	6.9	5.5	19.2	1	21.4	7/4.75	14.3	57.1	1540
50	8.1	5.5	20.3	1	22.5	7/4.75	14.3	59.3	1710
70	9.6	5.5	21.9	1	24.1	7/4.75	14.3	62.5	1990
95	11.4	5.5	23.6	1	25.8	7/4.75	14.3	66	2310
120	12.8	5.5	25	1	27.2	19/3.50	17.5	72	2760
150	14.2	5.5	26.4	1.1	28.8	19/3.50	17.5	75.2	3100
185	15.7	5.5	27.9	1.1	30.3	19/3.50	17.5	78.2	3460
11kV 22kV XLPE Insulated Metallic Screened 11kV
Part No.	Nominal conductor area	Nominal conductor diameter	Average insulation screen thickness	Copper wire screen stranding	Nominal diameter over screen	Average sheath thickness	Nominal diameter over sheath	Galvanised steel catenary stranding	Nominal overall diameter	Approx. mass
Part No.	mm2	mm	mm	no/mm	mm	mm	mm	no/mm	mm	kg/km
AERMV3X35SCN11kV	35	6.9	0.8	24/0.85	19.2	1.8	23.5	19/2/00	57.1	2060
AERMV3X50SCN11kV	50	8.1	0.8	24/0.85	20.4	1.8	24.7	19/2/00	59.3	2230
AERMV3X70SCN11kV	70	9.6	0.8	24/0.85	22	1.8	26.3	19/2/00	62.5	2500
AERMV3X95SCN11kV	95	11.4	0.8	24/0.85	23.7	1.8	28	19/2/00	66	2820
AERMV3X120SCN11kV	120	12.8	0.8	24/0.85	25.1	1.8	29.4	19/2/00	68.8	3100
AERMV3X150SCN11kV	150	14.2	0.8	24/0.85	26.5	1.9	31	19/2/00	72	3440
AERMV3X185SCN11kV	185	15.7	0.8	24/0.85	28	1.9	32.5	19/2/00	75	3800

AS/NZS 3599.1 MV Aerial Bundled Cables

6.35/11kV & 12.7/22kV Al/XlPE /HDPE Non-Screened Cables ABC Cable-AS/NZS 3599.1 Standard

number of cores x nominal cross section	Nominal conductor diameter	Nominal insulation thickness	Nominal insulation screen thickness	Nominal sheath thickness	AAAC/1120 support conductor size	Nominal overall diameter	Weight	Continuous current rating, A
								Still air	1m/s wind	2m/s wind
mm^2	mm	mm	mm	mm	No/mm	mm	kg/km	A	A	A
6.35/11kV
3×35	6.9	3.4	0.8	1.2	7/4.75	52.4	1370	110	155	185
3×50	8.1	3.4	0.8	1.2	7/4.75	54.6	1530	130	185	225
3×70	9.7	3.4	0.8	1.2	7/4.75	57.8	1790	160	235	280
3×95	11.4	3.4	0.8	1.2	7/4.75	61.3	2100	195	285	345
3×120	12.8	3.4	0.8	1.2	19/3.50	67.3	2540	230	335	405
3×150	14.2	3.4	0.8	1.2	19/3.50	70.1	2840	255	380	460
3×185	15.7	3.4	0.8	1.2	19/3.50	73.1	3190	295	440	530
12.7/22kV
3×35	6.9	5.5	0.8	1.2	7/4.75	61	1780	110	155	180
3×50	8.1	5.5	0.8	1.2	7/4.75	63.3	1970	130	185	220
3×70	9.7	5.5	0.8	1.2	7/4.75	66.5	2260	160	230	275
3×95	11.4	5.5	0.8	1.2	7/4.75	69.9	2600	195	285	335
3×120	12.8	5.5	0.8	1.2	19/3.50	75.9	3070	225	330	395
3×150	14.2	5.5	0.8	1.2	19/3.50	78.7	3390	255	375	450
3×185	15.7	5.5	0.8	1.2	19/3.50	81.7	3760	290	435	520

6.35/11kV & 12.7/22kV AL/XLPE /CWS/HDPE Screened Cables ABC Cable-AS/NZS 3599.1 Standard

Number of Cores x Nominal Cross Section	Diameter of Conductor	Thickness of Insulation	Thickness of Insulation Screen	Copper Wire Screen Stranding	Thickness of Sheath	Galvanized Steel Wire Stranding	Nominal Sectional Area	Breaking Load
No.mm^2	mm	mm	mm	No.mm	mm	No.mm	mm^2	KN
6.35/11 kV Light Duty Screen
3×35	6.9	3.4	0.8	25/0.85	1.8	7/2.00	54.1	1820
3×35	6.9	3.4	0.8	25/0.85	1.8	19/2.00	58.1	2130
3×50	8.1	3.4	0.8	25/0.85	1.8	19/2.00	60.4	2300
3×70	9.7	3.4	0.8	25/0.85	1.8	19/2.00	63.6	2570
3×95	11.4	3.4	0.8	25/0.85	1.8	19/2.00	67	2900
3×120	12.8	3.4	0.8	25/0.85	1.8	19/2.00	69.8	3190
3×150	14.2	3.4	0.8	25/0.85	1.9	19/2.00	73	3530
3×185	15.7	3.4	0.8	25/0.85	1.9	19/2.00	76	3890
6.35/11 kV Heavy Duty Screen
3×35	6.9	3.4	0.8	40/0.85	1.8	7/2.00	54.1	2050
3×35	6.9	3.4	0.8	40/0.85	1.8	19/2.00	58.1	2360
3×50	8.1	3.4	0.8	23/1.35	1.8	19/2.00	62.4	2820
3×70	9.7	3.4	0.8	32/1.35	1.8	19/2.00	65.6	3440
3×95	11.4	3.4	0.8	39/1.35	1.8	19/2.00	69	4030
3×120	12.8	3.4	0.8	39/1.35	1.8	19/2.00	71.8	4320
3×150	14.2	3.4	0.8	39/1.35	1.9	19/2.00	75	4670
3×185	15.7	3.4	0.8	39/1.35	1.9	19/2.00	78	5020
12.7/22 kV Light Duty Screen
3×35	6.9	5.5	0.8	25/0.85	1.8	7/2.00	62.7	2280
3×35	6.9	5.5	0.8	25/0.85	1.8	19/2.00	66.7	2580
3×50	8.1	5.5	0.8	25/0.85	1.8	19/2.00	69	2780
3×70	9.7	5.5	0.8	25/0.85	1.9	19/2.00	72.6	3110
3×95	11.4	5.5	0.8	25/0.85	1.9	19/2.00	76	3460
3×120	12.8	5.5	0.8	25/0.85	2	19/2.00	79.2	3810
3×150	14.2	5.5	1	25/0.85	2	19/2.00	82.8	4230
3×185	15.7	5.5	1	25/0.85	2.1	19/2.00	86.2	4650
12.7/22 kV Heavy Duty Screen
3×35	6.9	5.5	0.8	40/0.85	1.8	7/2.00	62.7	2510
3×35	6.9	5.5	0.8	40/0.85	1.8	19/2.00	66.7	2810
3×50	8.1	5.5	0.8	23/1.35	1.8	19/2.00	71	3300
3×70	9.7	5.5	0.8	32/1.35	1.9	19/2.00	74.6	3970
3×95	11.4	5.5	0.8	39/1.35	1.9	19/2.00	78	4600
3×120	12.8	5.5	0.8	39/1.35	2	19/2.00	81.2	4950
3×150	14.2	5.5	1	39/1.35	2	19/2.00	84.8	5360
3×185	15.7	5.5	1	39/1.35	2.1	19/2.00	88.2	5790

NFC 33-226 Cable HTA CIS Torsadé Souterrain 12/20(24)kV 18/30 (36) KV

NF C33-226 12/20 kV Section mm	outer Diameter (mm)	Max DC Resist. /km	Max. tensile strength (daN)	Bending radius (mm)		Weight Approx. (kg/km)
single core cables
50	29	0.641	150	377	754	700
95	32	0.32	285	416	832	950
150	32	0.206	450	416	832	1000
240	36.5	0.125	720	475	950	1400
400	42	0.078	1200	546	1092	1950
630	52.5	0.047	1890	683	1365	3100
1200	66	0.025	360o	858	1716	5200
bunched cables
3x1x50	62.5	0.641	450	377	754	2100
3x1x95	69	0.32	855	416	832	2800
3x1x150	69	0.206	1350	416	832	3050
3x1x240	78.5	0.125	2160	475	950	4150
3x1x400	90	0.078	3600	546	1092	5800

SANS 1713 MV ABC Wire

6.6kV ABC Cable Specification
Phase Core
Conductor size	mm2 nom	35	50	70	95	120	150	185
Conductor diameter	mm app.	7.15	8.25	9.95	11.8	13.1	14.8	15.95
Insulation diameter	mm app.	15.4	16.5	18.2	20.1	21.4	22.7	24.2
Core sheath diameter	mm app.	20.5	21.6	23.5	25.5	26.8	28.1	29.9
Catenary (Support Core)
Conductor size	mm2 nom	50	50	50	50	70	70	70
Conductor diameter	mm app.	9	9	9	9	10.8	10.8	10.8
Insulation diameter	mm app.	11.5	11.5	11.5	11.5	13.3	13.3	13.3
Maximum tensile strength and pulling force of catenary	kN	26	26	26	26	37	37	37
Cable
Cable diameter	mm app.	44	47	51	55	58	61	65
Cable mass	kg/m app.	2.05	2.24	2.6	3.01	3.51	3.85	4.33
Gross mass (500m)	kg app.	915	973	1,079	1,204	1,354	1,454	1,599
Bending radius	mm min.	636	669	720	776	841	880	926
Current rating
In air	Amps	150	185	230	280	325	370	430
Resistance
dc @ 20°C	W/km max	0.868	0.641	0.443	0.32	0.253	0.206	0.164
ac @ 90°C	W /km max	1.113	0.822	0.568	0.411	0.325	0.265	0.211
Reactance	W /km	0.136	0.124	0.121	0.114	0.111	0.106	0.103
Impedance	W /km	1.121	0.832	0.581	0.426	0.342	0.284	0.233
Short circuit ratings
Symmetrical	kA (1 sec)	3	4	5.8	8	10.2	12.5	15.7
Earth fault	kA (1 sec)	1.5	1.6	1.7	1.9	2	2.1	2.3

11kv ABC Cable Specification
Phase Core
Conductor size	mm2 nom	35	50	70	95	120	150	185
Conductor diameter	mm app.	7.15	8.25	9.95	11.8	13.1	14.8	16.35
Insulation diameter	mm app.	17.3	18.4	20.1	21.9	23.2	24.5	26.1
Core sheath diameter	mm app.	22.5	23.6	25.3	27.4	28.7	30.2	31.7
Catenary (Support Core)
Conductor size	mm2 nom	50	50	50	50	70	70	70
Conductor diameter	mm app.	9	9	9	9	10.8	10.8	10.8
Insulation diameter	mm app.	11.5	11.5	11.5	11.5	13.3	13.3	13.3
Maximum tensile strength and pulling force of catenary	kN	26	26	26	26	37	37	37
Cable
Cable diameter	mm app.	49	51	55	59	62	65	69
Cable mass	kg/m app.	2.31	2.52	2.85	3.28	3.61	3.99	4.43
Gross mass (500m)	kg app.	993	1,055	1,155	1,285	1,382	1,496	1,628
Bending radius	mm min.	691	724	775	831	896	935	981
Current rating
In air	Amps	150	185	230	280	325	370	430
Resistance
dc @ 20°C	W/km max	0.868	0.641	0.443	0.32	0.253	0.206	0.164
ac @ 90°C	W /km max	1.113	0.822	0.568	0.411	0.325	0.265	0.211
Reactance	W /km	0.136	0.124	0.121	0.114	0.111	0.106	0.103
Impedance	W /km	1.121	0.832	0.581	0.426	0.342	0.284	0.233
Short circuit ratings
Symmetrical	kA (1 sec)	3	4	5.8	8	10.2	12.5	15.7
Earth fault	kA (1 sec)	1.5	1.6	1.7	1.9	2	2.1	2.3

22kV ABC Cable Specification
Phase Core
Conductor size	mm2 nom	35	50	70	95	120	150	185
Conductor diameter	mm app.	7.15	8.25	9.95	11.8	13.1	14.8	16.35
Insulation diameter	mm app.	21.6	22.7	24.4	26.2	27.5	29.2	30.8
Core Sheath diameter	mm app.	27	28.1	30	31.9	33.4	35.1	36.8
Catenary (Support Core)
Conductor size	mm2 nom	50	50	50	50	70	70	70
Conductor diameter	mm app.	9	9	9	9	10.8	10.8	10.8
Insulation diameter	mm app.	11.5	11.5	11.5	11.5	13.3	13.3	13.3
Maximum Tensile Strength and Pulling force of Catenary	kN	26	26	26	26	37	37	37
Cable
Cable diameter	mm app.	58	61	65	69	72	76	80
Cable mass	kg/m app.	2.96	3.19	3.61	4.05	4.63	5.06	5.61
Gross mass (500m)	kg app.	1 188	1 257	1 383	1 514	1 690	1 819	1 984
Bending radius	mm min.	821	854	905	960	1025	1076	1123
Current rating
In air	Amps	150	185	230	280	325	370	430
Resistance
dc @ 20°C	W/km max	0.868	0.641	0.443	0.32	0.253	0.206	0.164
ac @ 90°C	W /km max	1.113	0.822	0.568	0.411	0.325	0.265	0.211
Reactance	W /km	0.136	0.124	0.121	0.114	0.111	0.106	0.103
Impedance	W /km	1.121	0.832	0.581	0.426	0.342	0.284	0.233
Short circuit ratings
Symmetrical	kA (1sec)	3	4	5.8	8	10.2	12.5	15.7
Earth fault	kA (1sec)	1.5	1.6	1.7	1.9	2	2.1	2.3

33kV ABC Cable Specification
Phase Core
Conductor size	mm2 nom	50	70	95	120	150	185
Conductor diameter	mm app.	8.25	9.95	11.8	13.1	14.8	16.35
Insulation diameter	mm app.	27.8	29.5	314	32.7	34	35.5
Core Sheath diameter	mm app.	33.7	35.4	37.4	38.7	40.2	41.8
Catenary (Support Core)
Conductor size	mm2 nom	50	50	50	70	70	70
Conductor diameter	mm app.	9	9	9	10.8	\|10.80	10.8
Insulation diameter	mm app.	11.5	11.5	11.5	13.3	13.3	13.3
Maximum Tensile Strength and Pulling force of Catenary	kN	26	26	26	37	37	37
Cable
Cable diameter	mm app.	73	76	81	84	87	90
Cable mass	kg/m app.	4.12	4.53	5.06	5.37	5.82	6.33
Gross mass (500m)	kg app.	1,535	1,658	1,819	1,910	2,046	2,200
Bending radius	mm min.	1007	1058	1114	1179	\|1218	1264
Current rating
In air	Amps	185	230	280	325	370	430
Resistance
dc @ 20°C	W/km max	0.641	0.443	0.32	0.253	0.206	0.164
ac @ 90°C	W/km max	0.822	0.568	0.411	0.325	0.265	0.211
Reactance	W /km	0.124	0.121	0.114	0.111	0.106	0.103
Impedance	W /km	0.832	0.581	0.426	0.342	0.284	0.233
Short circuit ratings
Symmetrical	kA (1 sec)	4	5.8	8	10.2	12.5	15.7
Earth fault	kA (1 sec)	1.6	1.7	1.9	2	2.1	2.3

PDF Download

Why Choose Us

Contact Us Immediately

Contact Us

Product Category

hot-sale product

Phase conductor: Aluminum, class 2,circular compacted conductors
Phase conductor screen: Non-metallic,semi-conducting compound
Phase insulation:Cross-linked polyethylene(XLPE)
Phase insulation screen:Non-metallic,semi-conducting compound,extruded strippable grooved elastomer
Phase longitudinal water tightness: Swelling powder
Phase metallic screen: Aluminium plastic tape (AL/PET）
Phase outer sheath: Polyethylene (PE)
Messenger conductor: Stranded galvanized steel wires
Messenger insulation: Polyethylene (PE)Specification

Aerial Insulated Cables Protected Cables
Voltage Class 15 kV, 25 kV and 35 kV
Thermoplastic and Cross Linked Polyethylene Constructions

CU/PVC, AAC/PVC, AAAC/PVC, CU/PE, AAC/PE, AAAC/PE
CU/XLPE, AAC/XLPE, AAAC/XLPE
AAC/PVC, AAC/PE, AAC/XLPE

0.6/1kV XLPE (X-90) Insulated

Aerial Bundled Cables (service and mains cables)

Hard Drawn Conductors

About Us

Company Profile

Certification

Factory Tour
