IEC/BS standard PVC Insulated LV Power Cable

IEC-BSStandardXLPEInsulatedLVPowerCable2

IEC-BSStandardXLPEInsulatedLVPowerCable1

IEC/BS standard PVC Insulated LV Power Cable

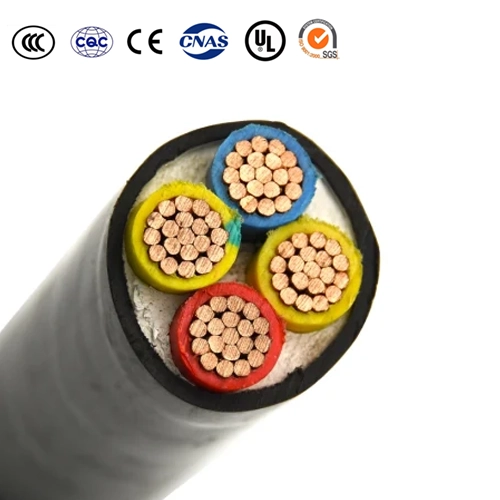

PVC insulated Unarmoured power cable

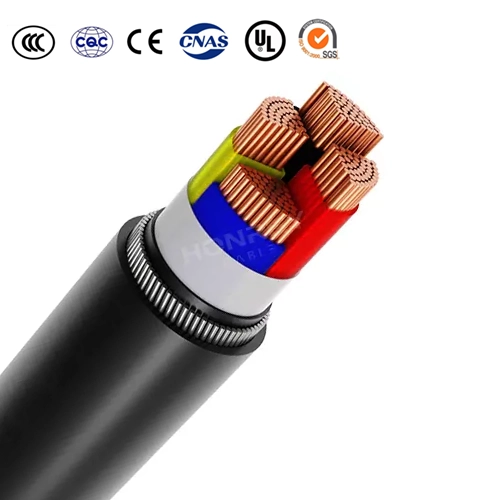

PVC insulated armored power cable
CU/PVC/PVC/SWA/PVC
CU/PVC/SWA/PVC

Application

PVC insulated armored & unarmoured power cable is used as power distribution and transmission line at rated voltage 0.6/1KV. Like power networks, underground, outdoor and indoor applications and within cable ducting.

Construction
Conductor: Class 2 stranded copper conductor or aluminium conductor
Number of cable cores: one core(sing core),two cores(double cores),three cores, four cores (four equal-section-area cores of three equal-section-area and one smaller section area neutral core),five cores (five equal-section-area cores or three equal-section-area cores and two small area neutral cores).
Insulation: Polyvinyl chloride (PVC)
Armour method: Unarmored or Steel Wire Armour (SWA), Steel Tape Armour (STA), Aluminium Wire Armour (AWA), Aluminium Tape Armour (ATA)
Sheath: Polyvinyl chloride PVC

Specifications

BS 6346
IEC/EN 60502-1, IEC/EN 60228
Flame Retardant according to IEC/EN 60332-1-2

Parameter

600 /1000 V – Two core copper conductor pvc insulated steel wire armoured pvc sheathed cables (CU / PVC / PVC / SWA / PVC)

Nominal area of conductor	Maximum conductor resistance at 20°c	Thickness of insulation	Thickness of extruded bedding	Armour wire diameter	Thickness of outer sheath	Approx.overall diameter	Approx.cable weight
mm²	Ω/km	mm	mm	mm	mm	mm	kg/km
1.5*	12.1	0.7	0.8	0.9	1.3	12.6	305
1.5	12.1	0.7	0.8	0.9	1.4	13.2	310
2.5*	7.41	0.8	0.8	0.9	1.4	14	370
2.5	7.41	0.8	0.8	0.9	1.4	14.4	390
4	4.61	0.8	0.8	0.9	1.4	15.4	460
6	3.08	0.8	0.8	0.9	1.5	16.8	550
10	1.83	1	0.8	1.25	1.6	19.9	835
16	1.15	1	0.8	1.25	1.6	22.1	1050
25**	0.727	1.2	1	1.6	1.7	26.8	1610
35**	0.524	1.2	1	1.6	1.8	29.2	1950
50**	0.387	1.4	1	1.6	1.9	32.7	2230
70**	0.268	1.4	1	1.6	1.9	35.9	2790
95**	0.193	1.6	1.2	2	2.1	42.1	3710
120**	0.153	1.6	1.2	2	2.2	45.3	4580
150**	0.124	1.8	1.2	2	2.3	49.1	5410
185**	0.0991	2	1.4	2.5	2.4	54.4	6890
240**	0.0754	2.2	1.4	2.5	2.5	60.7	8430
300**	0.0601	2.4	1.6	2.5	2.7	66.3	10140
400**	0.047	2.6	1.6	3.15	2.9	73.3	12500

*Circular solid conductors (Class 1).
All other conductors Circular stranded or circular stranded compacted (Class 2).
All the cables are Insulated with either PVC Type 5 Heat Resisting 85℃ compound and sheathed with PVC
Type 9/ ST2 compound Or PVC Type A/TIl compound and sheathed with PVC Type ST1/TM1 compound.
Cables conform to BS 6346.
* * cables with sector shaped conductors having lesser overall dimensions, weight and cost are available on request.

600 / 1000 V – Three core copper conductor pvc insulated steel wire armoured pvc sheathed cables (CU/PVC/PVC/SWA/PVC and CU/PVC/SWA/PVC)

Nominal area of conductor	Maximum conductor resistance at 20°c	Thickness of insulation	Thickness of bedding		Dia. Of armour wire	Thickness of outer sheath	Approx.overall diameter		Approx.cable weight
Nominal area of conductor	Maximum conductor resistance at 20°c	Thickness of insulation	Extruded bedding	Lapped bedding	Dia. Of armour wire	Thickness of outer sheath	Extruded bedding	Lapped bedding	Extruded bedding	Lapped bedding
mm²	Ω/km	mm	mm		mm	mm	mm		kg/km
1.5*	12.1	0.7	0.8	–	0.9	1.4	13.3	–	340	–
1.5	12.1	0.7	0.8	–	0.9	1.4	13.7	–	355	–
2.5*	7.41	0.8	0.8	–	0.9	1.4	14.6	–	415	–
2.5	7.41	0.8	0.8		0.9	1.4	15	–	435	–
4	4.61	0.8	0.8	–	0.9	1.4	16.1	–	515	–
6	3.08	0.8	0.8	–	1.25	1.5	18.3	–	720	–
10	1.83	1	0.8	–	1.25	1.6	20.9	–	960	–
16	1.15	1	0.8	–	1.25	1.6	23.2	–	1240	–
25	0.727	1.2	1	0.8	1.6	1.7	25.6	24.5	1670	1550
35	0.524	1.2	1	0.8	1.6	1.8	28.1	27	2050	1920
50	0.387	1.4	1	0.8	1.6	1.9	31.9	30.8	2610	2460
70	0.268	1.4	1.2	0.8	2	2	35.5	34	3570	3360
95	0.193	1.6	1.2	0.8	2	2.1	40.3	38.8	4590	4360
120	0.153	1.6	1.2	0.8	2	2.2	43.5	42	5480	5230
150	0.124	1.8	1.4	0.8	2.5	2.4	47.8	45.9	6940	6600
185	0.0991	2	1.4	0.8	2.5	2.5	52.3	50.4	8270	7900
240	0.0754	2.2	1.6	0.8	2.5	2.6	59	56.7	10330	9870
300	0.0601	2.4	1.6	0.8	2.5	2.8	63.7	61.4	12480	11950
400	0.047	2.6	1.6	0.8	2.5	3	71.1	68.8	15560	14970
500	0.0366	2.8	1.8	0.8	3.15	3.6	78.8	76.1	19910	19130

*Circular solid conductors (Class 1).
Conductors including 16sqmm circular stranded (Class 2).
25sqmm and above shaped stranded conductors(Class 2)
All the cables are insulated with either PVC Type 5 Heat Resisting 85℃ compound and sheathed with PVC
Type 9/ST2 compound Or PVC Type A/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
Drum size given above are for cables with extruded bedding.
Cables up to 400sqmm conform to BS6346. 500sqmm cable conforms to IEC 60502-1.

600 / 1000 V – Four core with reduced neutral copper conductor pvc insulated steel wire armoured pvc sheathed cables(CU/PVC/PVC/SWA/PVC and CU/PVC/SWA/PVC)

Nominal area of conductor		Maximum conductor resistance at 20°c		Thickness of insulation		Thickness of bedding		Dia. Of armour wire	Thickness of outer sheath	Approx.overall diameter		Approx.cable weight
Phase	Neutral	Phase	Neutral	Phase	Neutral	Extruded	Lapped	Dia. Of armour wire	Thickness of outer sheath	Extruded bedding	Lapped bedding	Extruded bedding	Lapped bedding
mm²		Ω/km		mm		mm		mm	mm	mm		kg/km
10 *	6	1.83	3.08	1	1	1	–	1.25	1.8	22.7	–	1080	–
16*	10	1.15	1.83	1	1	1	–	1.6	1.8	25.9	–	1530	–
25	16	0.727	1.15	1.2	1	1	0.8	1.6	1.8	27.9	26.8	1930	1835
35	16	0.524	1.15	1.2	1	1	0.8	1.6	1.9	31.5	30.4	2380	2270
50	25	0.387	0.727	1.4	1.2	1	0.8	2	2	35.9	34.8	3250	3120
70	35	0.268	0.524	1.4	1.2	1.2	0.8	2	2.1	39.4	37.9	4150	3945
95	50	0.193	0.387	1.6	1.4	1.2	0.8	2	2.3	44.8	43.3	5360	5125
120	70	0.153	0.268	1.6	1.4	1.4	0.8	2.5	2.5	49.3	47.4	6890	6575
150	70	0.124	0.268	1.8	1.4	1.4	0.8	2.5	2.6	54	51.2	8110	7665
185	95	0.0991	0.193	2	1.6	1.4	0.8	2.5	2.7	58.7	56.5	9730	9305
240	120	0.0754	0.153	2.2	1.6	1.6	0.8	2.5	2.9	64.9	62.1	12030	11535
300	150	0.0601	0.124	2.4	1.8	1.6	0.8	2.5	3.1	70.2	67.9	14660	13990
300	185	0.0601	0.0991	2.4	2	1.6	0.8	2.5	3.2	70.4	68.1	14870	14350
400	185	0.047	0.0991	2.6	2	1.8	0.8	3.15	3.4	80.2	76.6	19090	18125
500	240	0.0366	0.0754	2.8	2.2	1.8	0.8	3.15	3.7	88.4	85.7	23300	22360

*Phase conductors upto 16sqmm circular stranded(Class 2).
Phase conductors 25sqmm and above shaped stranded (Class 2).
All neutral conductors circular stranded (class 2).
All the cables are insulated with either PVC Type 5 Heat Resisting 85℃ compound and sheathed with PVC
Type 9/ST2 compound Or PVC Type A/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
Drum size given above are for cables with extruded bedding.
*Cables conform to IEC 60502-1

600 / 1000 V – Four core copper conductor pvc insulated steel wire armoured pvc sheathed cables(CU/PVC/PVC/SWA/PVC and CU/PVC/SWA/PVC)

Nominal area of conductor	Maximum conductor resistance at 20°c	Thickness of insulation	Thickness of bedding		Dia. Of armour wire	Thickness of outer sheath	Approx.overall diameter		Approx.cable weight
Nominal area of conductor	Maximum conductor resistance at 20°c	Thickness of insulation	Extruded bedding	Lapped bedding	Dia. Of armour wire	Thickness of outer sheath	Extruded bedding	Lapped bedding	Extruded bedding	Lapped bedding
mm²	Ω/km	mm	mm		mm	mm	mm		kg/km
1.5*	12.1	0.7	0.8	–	0.9	1.4	14.1	–	385	–
1.5	12.1	0.7	0.8	–	0.9	1.4	14.5	–	400	–
2.5*	7.41	0.8	0.8	–	0.9	1.4	15.5	–	470	–
2.5	7.41	0.8	0.8		0.9	1.4	16	–	495	–
4	4.61	0.8	0.8	–	1.25	1.5	18.1	–	700	–
6	3.08	0.8	0.8	–	1.25	1.5	19.6	–	8300	–
10	1.83	1	0.8	–	1.25	1.6	22.4	–	1130	–
16	1.15	1	1	–	1.6	1.7	26.4	–	1650	–
25	0.727	1.2	1	0.8	1.6	1.8	27.9	26.8	2040	1890
35	0.524	1.2	1	0.8	1.6	1.9	31.5	30.4	2550	2400
50	0.387	1.4	1.2	0.8	2	2	36.3	34.8	3510	3300
70	0.268	1.4	1.2	0.8	2	2.1	39.4	37.9	4450	4220
95	0.193	1.6	1.2	0.8	2	2.2	44.6	43.1	5770	5510
120	0.153	1.6	1.4	0.8	2.5	2.4	49.1	47.2	7350	6970
150	0.124	1.8	1.4	0.8	2.5	2.5	53.5	51.6	8760	8390
185	0.0991	2	1.4	0.8	2.5	2.6	58.6	56.3	10530	10040
240	0.0754	2.2	1.6	0.8	2.5	2.8	64.2	61.9	13050	12520
300	0.0601	2.4	1.6	0.8	2.5	3	70	67.7	15880	15300
400	0.047	2.6	1.8	0.8	3.15	3.3	79.1	76.4	20710	20000
500	0.0366	2.8	1.8	0.8	3.15	3.9	88.8	86.1	25400	24720

600 / 1000 V – Five core copper conductor pvc insulated steel wire armoured pvc sheathed cables(CU/PVC/PVC/SWA/PVC and CU/PVC/SWA/PVC)

Nominal area of conductor	Maximum conductor resistance at 20°c	Thickness of insulation	Thickness of bedding		Dia. Of armour wire	Thickness of outer sheath	Approx.overall diameter		Approx.cable weight
Nominal area of conductor	Maximum conductor resistance at 20°c	Thickness of insulation	Extruded bedding	Lapped bedding	Dia. Of armour wire	Thickness of outer sheath	Extruded bedding	Lapped bedding	Extruded bedding
mm²	Ω/km	mm	mm		mm	mm	mm		kg/km
1.5	12.1	0.7	0.8	–	1.25	1.8	18	–	601
2.5	7.41	0.8	0.8		1.25	1.8	19.2	–	707
4	4.61	0.8	0.8	–	1.25	1.8	21.8	–	915
6	3.08	0.8	0.8	–	1.6	1.8	24	–	1197
10	1.83	1	0.8	–	1.6	1.8	26.5	–	1517
16	1.15	1	1	–	1.6	1.9	29.5	–	1948
25	0.727	1.2	1	0.8	1.6	2	33.4	29.4	2605
35	0.524	1.2	1	0.8	2	2.1	34.8	30.62	3283
50	0.387	1.4	1.2	0.8	2	2.2	39	34.62	4183
70	0.268	1.4	1.2	0.8	2	2.3	43.1	38.52	5394
95	0.193	1.6	1.2	0.8	2.5	2.6	50.1	44.92	7487
120	0.153	1.6	1.4	0.8	2.5	2.7	54.1	48.72	8935
150	0.124	1.8	1.4	0.8	2.5	2.9	59.1	53.32	10711
185	0.0991	2	1.4	0.8	2.5	3.1	64.9	58.72	12988
240	0.0754	2.2	1.6	0.8	2.5	3.3	72.2	65.62	16369
300	0.0601	2.4	1.6	0.8	3.15	3.6	80.7	73.52	20850
400	0.047	2.6	1.8	0.8	3.15	3.8	88.92	81.32	25630
500	0.0366	2.8	1.8	0.8	2.5	2.5	46.8	41.8	19916
