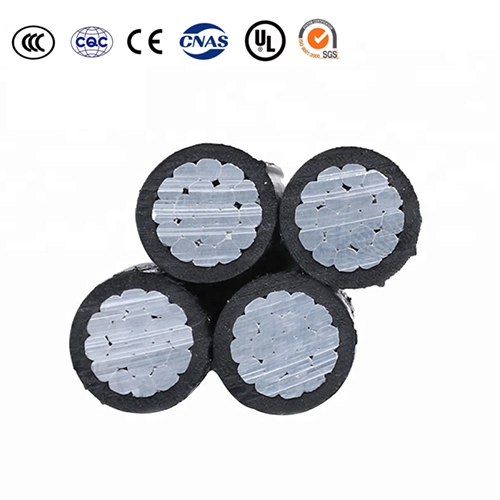

XLPE-Insulated-Cable-Aerial-Bundled-ABC-Cable1

Overhead Insulated Covered Line Wire (ICEA S-70-547)

AS/NZS 3560.1 0.6/1kV XLPE Insulated Cable Aerial Bundled ABC Cable

0.6/1kV XLPE (X-90) Insulated

Aerial Bundled Cables (service and mains cables)

Hard Drawn Conductors

Application

AS/NZS 3560.1 0.6/1kV Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight.

Conductor: The conductors shall be of aluminium 1350 wires and are compacted circular stranded (RM).
Insulation: XLPE.
Assembly: The cores shall be laid up with a left-hand lay.

Specifications

AS/NZS 3560.1 0.6/1kV XLPE Insulated Cable Aerial Bundled ABC Cable

Parameter

Aerial Bundled Cable AS/NZS 3560.1

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
2×16 RM	4.4	78	15	140
2×25 RM	7	105	17.6	210
2×35 RM	9.8	125	19.6	270
2×50 RM	11.4	150	22.8	370
2×95 RM	15.3	230	30.6	680
3×25 RM	8.8	97	19	310
3×35 RM	9.8	120	21.1	410
3×50 RM	11.4	140	24.6	550
4×16 RM	8.8	74	18.1	290
4×25 RM	14	97	21.2	410
4×35 RM	19.6	120	23.7	550
4×50 RM	28	140	27.5	740
4×70 RM	39.2	175	31.9	1000
4×95 RM	53.2	215	36.9	1370
4×120 RM	67.2	250	40.6	1690
4×150 RM	84	280	43.9	2020
