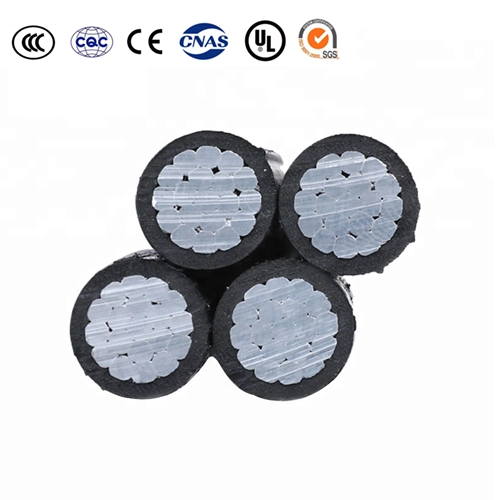

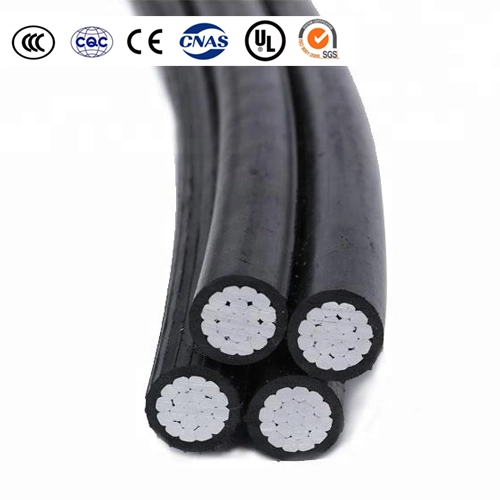

Aerial Insulated Cable (IEC 60502-1)

XLPE-Insulated-Cable-Aerial-Bundled-ABC-Cable2

Aerial Insulated Cable (IEC 60502-1)

CU/PVC, AAC/PVC, AAAC/PVC, CU/PE, AAC/PE, AAAC/PE
CU/XLPE, AAC/XLPE, AAAC/XLPE
AAC/PVC, AAC/PE, AAC/XLPE

Application

The IEC 60502-1 standard Aerial Insulated Cable LV ABC Cable Aerial Bundle Conductor is overhead power lines and room entrance wires with a rated AC pressure of 1kv and below. ABC Cable has less installation, maintenance, and operating costs, which can achieve greater economic loss and provide higher security and reliability.
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system.
LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.

Construction
Conductor: Conductors are stranded,circular compacted or uncompacted aluminum, copper , aluminum-alloy, ACSR etc.
Insulation: Thermoplastic polyethylene(PE),polyvinyl chloride (PVC) ,cross-linked polyethylene (XLPE),black color,weather and UV resistant.

Specifications

● GB/T 12527（Equivalent to IEC 60502-1）Aerial Insulated Cables for Rated Voltages up to and Including 1kV
● IEC 60228 Conductors of insulated cables

Parameter

Aerial Insulated Cable IEC 60502-1

Section Area	Phase Core				Neutral Core				Complete Cable
Section Area	Section Area	No. of Wires	Conductor Diameter	Insulation Thickness	Section Area	No. of Wire	Conductor Diameter	Insulation Thickness	Approx. Diameter	Approx. Weight
mm2	mm2	No.	mm	mm	mm2	No.	mm	mm	mm	kg/km
1×10	1×10	7	4.05	1.0	–	–	–	–	6.1	43
1×16	1×16	7	4.8	1.2	–	–	–	–	7.2	64
1×25	1×25	7	6	1.2	–	–	–	–	8.4	92
1×35	1×35	7	7	1.4	–	–	–	–	9.8	127
1×50	1×50	7	8.1	1.4	–	–	–	–	11.1	165
1×70	1×70	19	10	1.4	–	–	–	–	12.8	230
1×95	1×95	19	11.6	1.6	–	–	–	–	14.8	315
1×120	1×120	19	13	1.6	–	–	–	–	16.2	390
1×150	1×150	19	14.6	1.8	–	–	–	–	18.2	476
1×185	1×185	37	16.2	2	–	–	–	–	20.2	609
2×10	2×10	7	4	1	–	–	–	–	12.2	85
2×16	2×16	7	4.8	1.2	–	–	–	–	14.4	128
2×25	2×25	7	6	1.2	–	–	–	–	16.8	184
2×35	2×35	7	7	1.4	–	–	–	–	19.6	255
2×50	2×50	7	8.1	1.4	–	–	–	–	22.2	329
2×70	2×70	19	10	1.4	–	–	–	–	25.6	459
3×10	3×10	7	4	1	–	–	–	–	13.1	128
3×16	3×16	7	4.8	1.2	–	–	–	–	17.4	192
3×25	3×25	7	6	1.2	–	–	–	–	20.3	276
3×35	3×35	7	7	1.4	–	–	–	–	21.1	382
3×50	3×50	7	8.1	1.4	–	–	–	–	23.9	494
3×70	3×70	19	10	1.4	–	–	–	–	27.6	688
3×95	3×95	19	11.6	1.6	–	–	–	–	31.9	943
3×120	3×120	19	13	1.6	–	–	–	–	34.9	1170
4×10	4×10	7	4	1	–	–	–	–	14.6	171
4×16	4×16	7	4.8	1.2	–	–	–	–	17.4	256
4×25	4×25	7	6	1.2	–	–	–	–	20.3	368
4×35	4×35	7	7	1.4	–	–	–	–	23.7	509
4×50	4×50	7	8.1	1.4	–	–	–	–	26.8	659
4×70	4×70	19	10	1.4	–	–	–	–	30.9	917
4×95	4×95	19	11.6	1.6	–	–	–	–	35.8	1258
4×120	4×120	19	13	1.6	–	–	–	–	39.1	1559
1×16+16	1×16	7	4.8	1.2	1×16	7	5.1	–	12.3	108
1×25+25	1×25	7	6	1.2	1×25	7	6.3	–	14.7	158
1×35+35	1×35	7	7	1.4	1×35	7	7.5	–	17.3	221
1×50+50	1×50	7	8.4	1.4	1×50	7	9	–	20.1	300
2×16+16	2×16	7	4.8	1.2	1×16	7	5.1	–	15.5	172
2×25+25	2×25	7	6	1.2	1×25	7	6.3	–	18.1	250
2×35+35	2×35	7	7	1.4	1×35	7	7.5	–	21.1	348
2×50+50	2×50	7	8.3	1.4	1×50	7	9	–	22.4	464
3×16+16	3×16	7	4.8	1.2	1×16	7	5.1	–	17.4	235
3×25+25	3×25	7	6	1.2	1×25	7	6.3	–	20.3	342
3×35+35	3×35	7	7	1.4	1×35	7	7.5	–	23.7	475
3×50+50	3×50	7	8.1	1.4	1×50	7	9	–	26.8	629
3×70+70	3×70	19	10	1.4	1×70	19	10.5	–	30.9	869
3×95+95	3×95	19	11.6	1.6	1×95	19	12.5	–	35.7	1200
3×35+16	3×35	7	7	1.4	1×16	7	4.8	–	22.2	445
3×50+25	3×50	7	8.1	1.4	1×25	7	6	–	24.8	585
3×70+35	3×70	19	10	1.4	1×35	7	7	–	30.9	815
3×95+50	3×95	19	11.6	1.6	1×50	7	8.1	–	35.7	1108
4×95+35	4×95	19	11.6	1.6	1×35	7	7	–	39.9	1385
3×120+70	3×120	19	13	1.6	1×70	19	10	–	39.1	1399

TNB SPECIFICATION(IEC 60502) ABC Cable

NUMBER OF CORES X NOMINAL CROSS SECTION	OVERAL DIAMETER	WEIGHT	MAXIMUM CONDUCTOR RESISTANCE	MINIMUM BREAKING LOAD	CURRENT RATING
NO.×MM²	MM	KG/KM	Ω/KM	KN	A
1×16+1×25 RM	15.3	160	1.910	2.5	72
3×16+1×25 RM	19.0	290	1.200	4.0	107
3×25+1×25 RM	23.2	400	0.868	5.5	132
3×35+1×25 RM	25.6	500	0.641	8.0	165
3×50+1×35 RM	30.0	680	0.443	10.7	205
3×70+1×50 RM	34.9	920	0.320	13.7	240
3×95+1×70 RM	40.6	1270	0.253	18.6	290
3×120+1×70 RM	44.1	1510	0.206	23.2	334
3×150+1×95 RM	49.2	1870	0.164	28.7	389
3×185+1×120 RM	54.9	2340	0.125	37.2	467
3×25+1×25+1×16 RM	23.2	470	1.910	2.5	72
3×35+1×25+1×16 RM	25.6	560	1.200	4.0	107
3×50+1×35+1×16 RM	30.0	740	0.868	5.5	132
3×70+1×50+1×16 RM	34.9	980	0.641	8.0	165
3×95+1×70+1×16 RM	40.6	1330	0.443	10.7	205
3×120+1×70+1×16 RM	44.1	1580	0.320	13.7	240
3×150+1×95+1×16 RM	49.2	1940	0.206	23.2	334
3×185+1×120+1×16 RM	54.9	2410	1.910	2.5	72

Aerial Bundled Cables to DES/LVC/ABC Specification & IEC 60502 (AL/XLPE)

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm²	kN	A	mm	kg/km
4×25 RM	3.5	84	21.5	420
4×35 RM	4.9	104	23.9	550
4×120+1×25 RM	16.8	246	43.8	1800
4×185+1×25 RM	25.9	332	50.7	2700
