Application

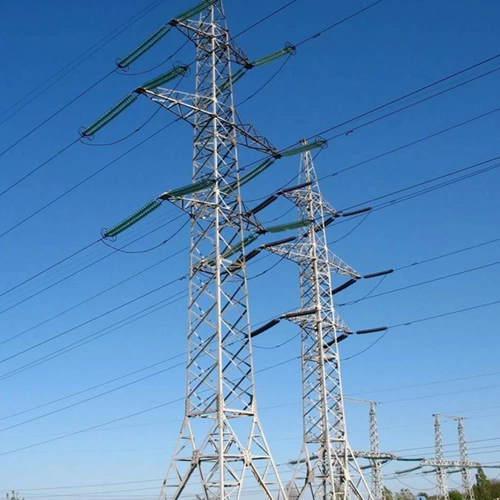

ACSR-Aluminum Conductor Steel Reinforced – Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

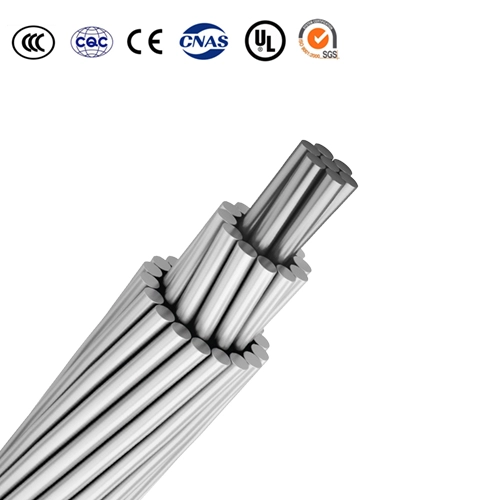

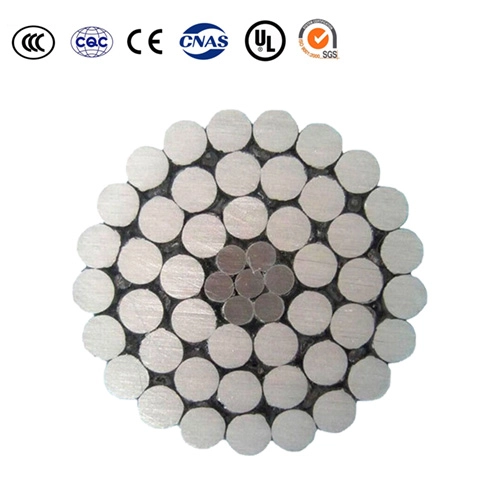

Aluminium Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

Specifications

• IEC 61089 Round wire concentric lay overhead electrical stranded conductors
• ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced
• BS EN 50182 Conductors for overhead lines — Round wire concentric lay stranded conductors
• BS 215-1 Aluminium Conductors and Aluminium Conductors, Steel-reinforced — For Overhead Power Transmission — Part 2: Aluminium Conductors, Steel-reinforced
• AS 3607 Conductors – Bare overhead – Aluminium and aluminium alloy-Steel reinforced
• GB/T 1179 Round wire concentric lay overhead electrical stranded conductors

Parameter

ACSR Conductor Cable ASTM B 232/B 232M CSA C49 for Yemen, Philippines, Myanmar, Peru, Chile, Ecuador, Colombia

Code Name Area Stranding and Wire Diameter Approx. Overall Diameter Unit Weight Nominal Breaking Load Nominal DC Resistance at 20℃
Nominal Alum. Steel Total Alum. Steel Alum. Steel Total
AWG or MCM mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km kN Ohm/km
TURKEY 6 13.30 2.21 15.50 6/1.68 1/1.68 5.04 37 17 54 5.29 2.1577
THRUSH 5 16.77 2.80 19.56 6/1.89 1/1.89 5.67 46 22 68 6.63 1.7111
SWAN 4 21.15 3.52 24.67 6/2.12 1/2.12 6.36 58 27 85 8.27 1.3565
SWANATE 4 21.15 5.37 26.51 7/1.96 1/2.61 6.53 58 42 100 10.50 1.3565
SPARROW 2 33.62 5.61 39.23 6/2.67 1/2.67 8.01 92 44 136 12.68 0.8532
SPARATE 2 33.62 8.55 42.17 7/2.47 1/3.30 8.24 92 67 159 16.19 0.8532
ROBIN 1 42.41 7.07 49.47 6/3.00 1/3.00 9.00 116 55 171 15.79 0.6765
RAVEN 1/0 53.51 8.92 62.43 6/3.37 1/3.37 10.11 147 69 216 19.48 0.5362
QUAIL 2/0 67.44 11.23 78.68 6/3.78 1/3.78 11.34 185 88 273 23.57 0.4254
PIGEON 3/0 85.02 14.17 99.19 6/4.25 1/4.25 12.75 233 110 343 29.45 0.3374
PENGUIN 4/0 107.22 17.87 125.09 6/4.77 1/4.77 14.31 294 139 433 37.14 0.2676
WAXWING 266.8 135.19 7.50 142.69 18/3.09 1/3.09 15.45 373 58 431 30.60 0.2133
PARTRIDGE 266.8 135.19 22.02 157.21 26/2.57 7/2.00 16.28 374 172 546 50.26 0.2092
OSTRICH 300 152.01 24.73 176.74 26/2.73 7/2.12 17.28 421 193 614 56.49 0.1860
MERLIN 336.4 170.45 9.47 179.92 18/3.47 1/3.47 17.35 470 74 544 38.61 0.1691
LINNET 336.4 170.45 27.72 198.17 26/2.89 7/2.25 18.31 472 217 689 62.72 0.1659
ORIOLE 336.4 170.45 39.78 210.23 30/2.69 7/2.69 18.83 473 311 784 76.95 0.1642
CHICKADEE 397.5 201.41 11.19 212.60 18/3.77 1/3.77 18.85 555 87 642 44.21 0.1431
BRANT 397.5 201.41 26.11 227.52 24/3.27 7/2.18 19.61 558 204 762 64.94 0.1411
IBIS 397.5 201.41 32.76 234.17 26/3.14 7/2.44 19.88 558 256 814 72.50 0.1404
LARK 397.5 201.41 46.99 248.40 30/2.92 7/2.92 20.44 560 367 927 90.29 0.1393
PELICAN 477 241.70 13.43 255.13 18/4.14 1/4.14 20.70 666 105 771 52.49 0.1193
FLICKER 477 241.70 31.34 273.04 24/3.58 7/2.39 21.49 670 245 915 76.51 0.1176
HAWK 477 241.70 39.33 281.02 26/3.44 7/2.67 21.79 670 308 978 86.74 0.1170
HEN 477 241.70 56.40 298.10 30/3.20 7/3.20 22.40 671 441 1112 105.86 0.1161
OSPREY 556.5 281.98 15.66 297.64 18/4.47 1/4.47 22.35 777 122 899 60.94 0.1022
PARAKEET 556.5 281.98 36.54 318.52 24/3.87 7/2.58 23.22 781 286 1067 88.07 0.1008
DOVE 556.5 281.98 45.93 327.91 26/3.72 7/2.89 23.55 781 359 1140 100.52 0.1003
EAGLE 556.5 281.98 65.80 347.78 30/3.46 7/3.46 24.21 783 515 1298 123.65 0.0995
PEACOCK 605 306.55 39.78 346.33 24/4.03 7/2.69 24.20 849 311 1160 96.08 0.0927
Code Name Area Stranding and

Wire Diameter

 Approx.

Overall Diameter

 Unit Weight Nominal Breaking Load Nominal DC

Resistance at 20℃
Nominal Alum. Steel Total Alum. Steel Alum. Steel Total
AWG or MCM mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km kN Ohm/km
SQUAB 605 306.55 49.89 356.44 26/3.87 7/3.01 24.51 850 390 1240 108.09 0.0922
WOOD DUCK 605 306.55 71.52 378.07 30/3.61 7/3.61 25.25 851 560 1411 128.55 0.0915
TEAL 605 306.55 69.89 376.44 30/3.61 19/2.16 25.24 851 548 1399 133.44 0.0916
KINGBIRD 636 322.26 17.91 340.17 18/4.78 1/4.78 23.88 889 139 1028 69.83 0.0895
SWIFT 636 322.26 8.95 331.21 36/3.38 1/3.38 23.62 888 70 958 61.38 0.0895
ROOK 636 322.26 41.76 364.02 24/4.14 7/2.76 24.84 893 326 1219 100.52 0.0882
GROSBEAK 636 322.26 52.45 374.71 26/3.97 7/3.09 25.15 893 409 1302 112.09 0.0877
SCOTER 636 322.26 75.19 397.45 30/3.70 7/3.70 25.88 895 589 1484 135.22 0.0871
EGRET 636 322.26 73.54 395.80 30/3.70 19/2.22 25.90 894 576 1470 140.11 0.0871
FLAMINGO 666.6 337.77 43.78 381.55 24/4.23 7/2.82 25.40 936 342 1278 105.42 0.0841
GANNET 666.6 337.77 54.98 392.74 26/4.07 7/3.16 25.76 936 429 1365 117.43 0.0837
STILT 715.5 362.54 46.99 409.53 24/4.39 7/2.92 26.31 1005 367 1372 113.42 0.0784
STARLING 715.5 362.54 59.02 421.57 26/4.21 7/3.28 26.68 1005 461 1466 126.32 0.0780
REDWING 715.5 362.54 82.55 445.10 30/3.92 19/2.35 27.43 1006 647 1653 153.90 0.0774
COOT 795 402.83 11.19 414.02 36/3.77 1/3.77 26.41 1110 88 1198 74.73 0.0716
CUCKOO 795 402.83 52.19 455.02 24/4.62 7/3.08 27.74 1116 408 1524 124.10 0.0705
DRAKE 795 402.83 65.60 468.43 26/4.44 7/3.45 28.11 1116 512 1628 140.11 0.0702
TERN 795 402.83 27.84 430.67 45/3.38 7/2.25 27.03 1116 217 1333 98.30 0.0712
CONDOR 795 402.83 52.19 455.02 54/3.08 7/3.08 27.72 1116 408 1524 125.43 0.0705
MALLARD 795 402.83 91.90 494.72 30/4.14 19/2.48 28.96 1119 719 1838 170.80 0.0697
RUDDY 900 456.03 31.54 487.57 45/3.59 7/2.40 28.73 1263 247 1510 108.53 0.0629
CANARY 900 456.03 59.12 515.15 54/3.28 7/3.28 29.52 1263 461 1724 141.89 0.0623
CATBIRD 954 483.39 13.43 496.82 36/4.14 1/4.14 28.95 1333 105 1438 88.07 0.0596
RAIL 954 483.39 33.44 516.83 45/3.70 7/2.47 29.61 1339 262 1601 115.20 0.0593
CARDINAL 954 483.39 62.65 546.04 54/3.38 7/3.38 30.42 1339 490 1829 150.34 0.0588
TANAGER 1033.5 523.67 14.54 538.22 36/4.30 1/4.30 30.12 1443 113 1556 95.19 0.0551
ORTOLAN 1033.5 523.67 36.18 559.86 45/3.85 7/2.57 30.81 1451 283 1734 123.21 0.0548
CURLEW 1033.5 523.67 67.84 591.52 54/3.51 7/3.51 31.68 1451 530 1981 162.80 0.0543
BLUEJAY 1113 563.96 39.03 602.99 45/4.00 7/2.66 31.98 1563 305 1868 132.55 0.0508
FINCH 1113 563.96 71.54 635.49 54/3.65 19/2.19 32.85 1570 560 2130 173.92 0.0507
Code Name Area Stranding and Wire Diameter Approx. Overall Diameter Unit Weight Nominal Breaking Load Nominal DC Resistance at 20℃
Nominal Alum. Steel Total Alum. Steel Alum. Steel Total
AWG or MCM mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km kN Ohm/km
BUNTING 1192.5 604.24 41.76 646.00 45/4.14 7/2.76 33.12 1674 327 2001 142.34 0.0475
GRACKLE 1192.5 604.24 76.60 680.84 54/3.77 19/2.27 33.97 1682 600 2282 186.37 0.0473
SKYLARK 1272 644.52 17.91 662.43 36/4.78 1/4.78 33.42 1777 140 1917 117.43 0.0447
BITTERN 1272 644.52 44.57 689.09 45/4.27 7/2.85 34.17 1785 349 2134 151.68 0.0445
PHEASANT 1272 644.52 81.66 726.19 54/3.90 19/2.34 35.10 1795 638 2433 193.93 0.0443
DIPPER 1351.5 684.81 47.32 732.12 45/4.40 7/2.93 35.16 1898 368 2266 161.02 0.0419
MARTIN 1351.5 684.81 86.70 771.51 54/4.02 19/2.41 36.17 1906 679 2585 205.94 0.0417
BOBOLINK 1431 725.09 50.14 775.23 45/4.53 7/3.02 36.24 2009 393 2402 170.36 0.0395
PLOVER 1431 725.09 91.90 816.98 54/4.14 19/2.48 37.24 2019 719 2738 218.40 0.0394
NUTHATCH 1510.5 765.37 52.88 818.25 45/4.65 7/3.10 37.20 2120 414 2534 178.36 0.0375
PARROT 1510.5 765.37 96.85 862.22 54/4.25 19/2.55 38.25 2131 759 2890 229.96 0.0373
LAPWING 1590 805.65 55.69 861.34 45/4.77 7/3.18 38.16 2232 435 2667 187.71 0.0356
FALCON 1590 805.65 102.14 907.79 54/4.36 19/2.62 39.26 2243 799 3042 242.42 0.0355
CHUKAR 1780 901.93 73.54 975.47 84/3.70 19/2.22 40.70 2511 575 3086 226.85 0.0319
BLUEBIRD 2156 1092.45 88.91 1181.36 84/4.07 19/2.44 44.76 3036 697 3733 268.21 0.0263
KIWI 2167 1098.02 47.48 1145.50 72/4.41 7/2.94 44.07 3057 370 3427 221.51 0.0263
THRASHER 2312 1171.49 63.79 1235.28 76/4.43 19/2.07 45.77 3264 500 3764 252.20 0.0246
HIGH STRENGTH STRANDING
GROUSE 80 40.54 14.13 54.67 8/2.54 1/4.24 9.32 112 110 222 23.13 0.7112
PETREL 101.8 51.58 30.09 81.67 12/2.34 7/2.34 11.71 143 235 378 46.26 0.5163
MINORCA 110.8 56.14 32.76 88.90 12/2.44 7/2.44 12.22 156 256 412 50.26 0.4743
LEGHORN 134.6 68.20 39.78 107.98 12/2.69 7/2.69 13.46 189 311 500 60.49 0.3905
GUINEA 159 80.57 46.99 127.56 12/2.92 7/2.92 14.63 223 367 590 71.17 0.3306
DOTTEREL 176.9 89.64 52.27 141.91 12/3.08 7/3.08 15.42 248 409 657 76.95 0.2971
DORKING 190.8 96.68 56.40 153.08 12/3.20 7/3.20 16.03 268 441 709 83.18 0.2755
BRAHMA 203.2 102.96 91.90 194.86 16/2.86 19/2.48 18.14 285 722 1007 126.32 0.2481
COCHIN 211.3 107.07 62.46 169.53 12/3.37 7/3.37 16.84 297 488 785 92.07 0.2487

ACSR Conductor Cable BS 215-2 BS EN 50182 for Nigeria, Yemen, UAE, Qatar, Bahrain, Kuwait, Uganda, Tanzania, Zambia, Rwanda, Zimbabwe, Ghana, Mozambique, Kenya, Ethiopia, Malawi, South Africa, Lesotho, Botswana, Sri Lanka

Code Name Area Stranding Approx. Overall Diameter Weight Nominal Breaking Load D.C. Resistance at 20℃ Standard Length
Nominal Alum. Alum. Steel Total Alum. Steel Alum. Steel Total
mm2 mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km kN ohm/km m±5%
Mole 10 10.62 1.77 12.39 6/1.50 1/1.50 4.50 29 14 43 4.14 2.076 3000
Squirrel 20 20.94 3.49 24.43 6/2.11 1/2.11 6.33 58 27 85 7.88 1.368 3000
Gopher 25 26.25 4.37 30.62 6/2.36 1/2.36 7.08 72 34 106 9.61 1.093 2500
Weasel 30 31.61 5.27 36.88 6/2.59 1/2.59 7.77 87 41 128 11.45 0.9077 2000
Fox 35 36.66 6.11 42.77 6/2.79 1/2.79 8.37 101 48 149 13.20 0.7822 2000
Ferret 40 42.41 7.07 49.48 6/3.00 1/3.00 9.00 117 55 172 15.20 0.6766 2500
Rabbit 50 52.88 8.82 61.70 6/3.35 1/3.35 10.05 145 69 214 18.35 0.5426 2000
Mink 60 63.18 10.53 73.71 6/3.66 1/3.66 10.98 173 82 255 21.80 0.4545 3000
Skunk 60 63.27 36.93 100.30 12/2.59 7/2.59 12.95 175 290 465 53.00 0.4567 2500
Beaver 70 74.82 12.47 87.29 6/3.99 1/3.99 11.97 205 97 302 25.70 0.3825 2500
Horse 70 73.37 42.80 116.17 12/2.79 7/2.79 13.95 203 335 538 61.20 0.3936 2000
Racoon 75 79.20 13.20 92.40 6/4.10 1/4.10 12.30 217 103 320 27.20 0.3622 2500
Otter 80 83.88 13.98 97.86 6/4.22 1/4.22 12.66 230 109 339 28.80 0.3419 2500
Cat 90 95.40 15.90 111.30 6/4.50 1/4.50 13.50 262 124 386 32.70 0.3007 2000
Hare 100 105.0 17.50 122.50 6/4.72 1/4.72 14.16 288 137 425 36.00 0.2733 2000
Dog 100 105.0 13.50 118.5 6/4.72 7/1.57 14.15 288 106 394 32.70 0.2733 2000
Hyena 100 105.8 20.44 126.2 7/4.39 7/1.93 14.57 290 160 450 40.90 0.2712 2000
Leopard 125 131.3 16.80 148.1 6/5.28 7/1.75 15.81 360 132 492 40.70 0.2184 2000
Coyote 125 132.1 20.10 152.2 26/2.54 7/1.91 15.89 365 157 522 46.40 0.2187 2000
Cougar 125 130.3 7.25 137.5 18/3.05 1/3.05 15.25 362 57 419 29.80 0.2189 2000
Tiger 125 131.1 30.60 161.7 30/2.36 7/2.36 16.52 362 240 602 58.00 0.2202 2500
Wolf 150 158.0 36.90 194.9 30/2.59 7/2.59 18.13 437 289 726 69.20 0.1828 2000
Dingo 150 158.7 8.80 167.5 18/3.35 1/3.35 16.75 437 69 506 35.70 0.1815 3000
Lynx 175 183.4 42.80 226.2 30/2.79 7/2.79 19.53 507 335 842 79.80 0.1576 2000
Caracal 175 184.2 10.30 194.5 18/3.61 1/3.61 18.05 507 80 587 41.10 0.1563 2500
Panther 200 212.0 49.50 261.5 30/3.00 7/3.00 21.00 586 388 974 92.25 0.1363 2500
Lion 225 238.5 55.60 294.2 30/3.18 7/3.18 22.26 659 436 1095 109.60 0.1212 2000
Bear 250 264.0 61.60 325.6 30/3.35 7/3.35 23.45 730 483 1213 111.10 0.1093 2000
Goat 300 324.3 75.70 400.0 30/3.71 7/3.71 25.97 896 593 1489 135.70 0.08910 3000
Sheep 350 374.1 87.30 461.4 30/3.99 7/3.99 27.93 1034 684 1718 155.90 0.07704 2500
Antelope 350 373.1 48.40 421.5 54/2.97 7/2.97 26.73 1032 379 1411 118.20 0.07727 2500
Bison 350 381.8 49.50 431.3 54/3.00 7/3.00 27.00 1056 388 1444 120.90 0.07573 3000
Jaguar 200 210.6 11.70 222.3 18/3.86 1/3.86 19.30 580 91 671 46.55 0.13670 2000
Deer 400 429.3 100.20 529.5 30/4.27 7/4.27 29.89 1186 785 1971 178.50 0.06726 2500
Zebra 400 428.9 55.60 484.5 54/3.18 7/3.18 28.62 1186 435 1621 131.90 0.06740 2000
Elk 450 477.0 111.30 588.3 30/4.50 7/4.50 31.50 1318 872 2190 198.20 0.06056 2000
Camel 450 475.2 61.60 536.8 54/3.35 7/3.35 30.15 1314 483 1797 145.70 0.06073 2500
Moose 500 528.7 68.50 597.2 54/3.53 7/3.53 31.77 1462 537 1999 161.10 0.05470 2000

ACSR Conductor Cable DIN 48204 for Iraq, Rwanda, Afghanistan, Peru, Paraguay

Area Stranding and wire diameter Overall Diameter Linear mass Nominal breaking load Maximum resistance at 20 ℃
Nominal Actual
Al/St Al St Total Al St Al St Total
mm2 mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km daN ohm/km
16/2.5 15.3 2.5 17.8 6/1.80 1/1.80 5.4 42 20 62 595 1.8780
25/4.0 23.8 4.0 27.8 6/2.25 1/2.25 6.8 65 32 97 920 1.2002
36/6.0 34.3 5.7 40.0 6/2.70 1/2.70 8.1 94 46 140 1265 0.8352
44/32.0 44.0 31.7 75.7 14/2.00 7/2.40 11.2 122 250 372 4500 0.6573
50/8.0 48.3 8.0 56.3 6/3.20 1/3.20 9.6 132 64 196 1710 0.5946
50/30 51.2 29.8 81.0 12/2.33 7/2.33 11.7 141 237 378 4380 0.5643
70/12 69.9 11.4 81.3 26/1.85 7/1.44 11.7 193 91 284 2680 0.4130
95/15 94.4 15.3 109.7 26/2.15 7/1.67 13.6 260 123 383 3575 0.3058
95/55 96.5 56.3 152.8 12/3.20 7/3.20 16.0 266 446 712 7935 0.2992
105/75 105.7 75.5 181.5 14/3.10 9/2.25 17.5 292 599 891 10845 0.2735
120/20 121.06 19.8 141.4 26/2.44 7/1.90 15.5 336 158 494 4565 0.2374
120/70 122.0 71.3 193.3 12/3.6 7/3.60 18.0 337 564 901 10000 0.2364
125/30 127.9 29.8 157.7 30/2.33 7/2.33 16.3 353 238 591 5760 0.2259
150/25 148.9 24.2 173.1 26/2.70 7/2.10 17.1 411 194 605 5525 0.1939
170/40 171.8 40.1 211.9 30/2.70 7/2.70 18.9 475 319 794 7675 0.1682
185/30 183.8 29.8 213.6 26/3.00 7/2.33 19.0 507 239 746 6620 0.1571
210/35 209.1 34.1 243.2 26/3.20 7/2.49 20.3 577 273 850 7490 0.1380
210/50 212.1 49.5 261.6 30/3.00 7/3.00 21.0 587 394 981 9390 0.1362
230/30 230.9 29.8 260.7 24/3.50 7/2.33 21.0 638 239 877 7310 0.1249
240/40 243.0 39.5 282.5 26/3.45 7/2.68 21.9 671 316 987 8640 0.1188
265/35 263.7 34.1 297.8 24/3.74 7/2.49 22.4 728 274 1002 8305 0.1094
300/50 304.3 49.5 353.7 26/3.86 7/3.00 24.5 840 396 1236 10700 0.09487
305/40 304.6 39.5 344.1 54/2.68 7/2.68 24.1 843 317 1160 9940 0.0949
340/30 339.3 29.8 369.1 48/3.00 7/2.33 25.0 938 242 1180 9290 0.08509
380/50 382.0 49.5 431.5 54/3.00 7/3.00 27.0 1056 397 1453 12310 0.08509
385/35 386.0 34.1 420.1 48/3.20 7/2.49 26.7 1067 277 1344 10480 0.07573
435/55 434.03 59.3 490.6 54/3.20 7/3.20 28.8 1203 450 1653 13645 0.07478
450/40 448.7 39.5 488.2 48/3.45 7/2.68 28.7 1241 320 1561 12075 0.06656
490/65 490.3 63.6 553.9 54/3.40 7/3.40 30.6 1356 510 1866 15310 0.06434
495/35 494.1 34.1 528.2 45/3.74 7/2.49 29.9 1363 283 1646 12180 0.05846
510/45 510.2 45.3 555.5 48/3.68 7/2.87 30.7 1413 365 1778 13665 0.05655
550/70 550.0 71.3 621.3 54/3.60 7/3.60 32.4 1520 572 2092 17060 0.05259
560/50 561.7 49.5 611.2 48/3.86 7/3.00 32.2 1553 401 1954 14895 0.0514
570/40 565.5 39.5 610.3 45/4.00 7/2.68 32.2 1563 325 1888 13900 0.05108
650/45 698.8 45.3 653.49 45/4.30 7/2.87 34.4 1791 372 2163 15552 0.0442
680/85 678.8 86.0 764.8 54/4.00 18/2.40 36.0 1866 702 2570 21040 0.0426
1045/45 1045.58 45.3 1090.9 72/4.30 7/2.87 43.0 2879 370 3249 21787 0.0277

[/su_table][/su_spoiler]

ACSR Conductor Cable IEC 61089 for Afghanistan, Myanmar

ACSR / A1/S1A

Code Number

 Steel Ratio Areas No.of
Wires		 Wire Diameter Diameter Linear Mass Rated
Strength		 D.C.
Resistance
Al Steel Total Al Steel Al Steel Core Cond.
% mm2 mm2 mm2 mm mm mm mm kg/km kN Ω/km
16 17 16 2.67 18.7 6 1 1 .84 1.84 1.84 5.53 64.6 6.08 1.7934
25 17 25 4.17 29.2 6 1 2.30 2.30 2.30 6.91 100.9 9.13 1.1478
40 17 40 6.67 46.7 6 1 2.91 2.91 2.91 8.74 161.5 14.40 0.7174
63 17 63 10.5 73.5 6 1 3.66 3.66 3.66 11.0 254.4 21.63 0.4555
100 17 100 16.7 117 6 1 4.61 4.61 4.61 13.8 403.8 34.33 0.2869
125 6 125 6.94 132 18 1 2.97 2.97 2.97 14.9 397.9 29.17 0.2304
125 16 125 20.4 145 26 7 2.47 1.92 5.77 15.7 503.9 45.69 0.2310
160 6 160 8.89 169 18 1 3.36 3.36 3.36 16.8 509.3 36.18 0.1800
160 16 160 26.1 186 26 7 2.80 2.18 6.53 17.7 644.9 57.69 0.1805
200 6 200 11.1 211 18 1 3.76 3.76 3.76 18.8 636.7 44.22 0.1440
200 16 200 32.6 233 26 7 3.13 2.43 7.30 19.8 806.2 70.13 0.1444
250 10 250 24.6 275 22 7 3.80 2.11 6.34 21.6 880.6 68.72 0.1154
250 16 250 40.7 291 26 7 3.50 2.72 8.16 22.2 1007.7 87.67 0.1155
315 7 315 21.8 337 45 7 2.99 1.99 5.97 23.9 1039.6 79.03 0.0917
315 16 315 51.3 366 26 7 3.93 3.05 9.16 24.9 1269.7 106.83 0.0917
400 7 400 27.7 428 45 7 3.36 2.24 6.73 26.9 1320.1 98.36 0.0722
400 13 400 51.9 452 54 7 3.07 3.07 9.21 27.6 1510.3 123.04 0.0723
450 7 450 31.1 481 45 7 3.57 2.38 7.14 28.5 1485.2 107.47 0.0642
450 13 450 58.3 508 54 7 3.26 3.26 9.77 29.3 1699.1 138.42 0.0643
500 7 500 34.6 535 45 7 3.76 2.51 7.52 30.1 1650.2 119.41 0.0578
500 13 500 64.8 565 54 7 3.43 3.43 10.3 30.9 1887.9 153.80 0.0578
560 7 560 38.7 599 45 7 3.98 2.65 7.96 31.8 1848.2 133.74 0.0516
560 13 560 70.9 631 54 19 3.63 2.18 10.9 32.7 2103.4 172.59 0.0516
630 7 630 43.6 674 45 7 4.22 2.81 8.44 33.8 2079.2 150.45 0.0459
630 13 630 79.8 710 54 19 3.85 2.31 11.6 34.7 2366.3 191.77 0.0459
710 7 710 49.1 759 45 7 4.48 2.99 8.96 35.9 2343.2 169.56 0.0407
710 13 710 89.9 800 54 19 4.09 2.45 12.3 36.8 2666.8 216.12 0.0407
800 4 800 34.6 835 72 7 3.76 2.51 7.52 37.6 2480.2 167.41 0.0361
800 8 800 66.7 867 84 7 3.48 3.48 10.4 38.3 2732.7 205.33 0.0362
800 13 800 101 901 54 19 4.34 2.61 13.0 39.1 3004.9 243.52 0.0362
900 4 900 38.9 939 72 7 3.99 2.66 7.98 39.9 2790.2 188.33 0.0321
900 8 900 75.0 975 84 7 3.69 3.69 11.1 40.6 3074.2 226.50 0.0322
1000 4 1000 43.2 1043 72 7 4.21 2.80 8.41 42.1 3100.3 209.26 0.0289
1120 4 1120 47.3 1167 72 19 4.45 1.78 8.90 44.5 3464.9 234.53 0.0258
ACSR / A1/S1A

Code Number

 Steel Ratio Areas No.of
Wires		 Wire Diameter Diameter Linear Mass Rated
Strength		 D.C.
Resistance
Al Steel Total Al Steel Al Steel Core Cond.
% mm2 mm2 mm2 mm mm mm mm kg/km kN Ω/km
1120 8 1120 91.2 1211 84 19 4.12 2.47 12.4 45.3 3811.5 283.17 0.0258
1250 8 1250 102 1352 84 19 4.35 2.61 13.1 47.9 4253.9 316.04 0.0232
1250 4 1250 52.8 1303 72 19 4.70 1.88 9.40 47.0 3867.1 261.75 0.0231
ACSR / A1/S2A

Code Number

 Steel Ratio Areas No.of
Wires		 Wire Diameter Diameter Linear Mass Rated
Strength		 D.C.
Resistance
Al Steel Total Al Steel Al Steel Core Cond.
% mm2 mm2 mm2 mm mm mm mm kg/km kN Ω/km
16 17 16 2.67 18.7 6 1 1.84 1.84 1.84 5.53 64.6 6.45 1.7934
25 17 25 4.17 29.2 6 1 2.30 2.30 2.30 6.91 100.9 9.71 1.1478
40 17 40 6.67 46.7 6 1 2.91 2.91 2.91 8.74 161.5 15.33 0.7174
63 17 63 10.5 73.5 6 1 3.66 3.66 3.66 11.0 254.4 22.37 0.4555
100 17 100 16.7 117 6 1 4.61 4.61 4.61 13.8 403.8 35.50 0.2869
125 6 125 6.94 132 18 1 2.97 2.97 2.97 14.9 397.9 30.14 0.2304
125 16 125 20.4 145 26 7 2.47 1.92 5.77 15.7 503.9 48.54 0.2310
160 6 160 8.89 169 18 1 3.36 3.36 3.36 16.8 509.3 37.42 0.1800
160 16 160 26.1 186 26 7 2.80 2.18 6.53 17.7 644.9 61.34 0.1805
200 6 200 11.1 211 18 1 3.76 3.76 3.76 18.8 636.7 45.00 0.1440
200 16 200 32.6 233 26 7 3.13 2.43 7.30 19.8 806.2 74.69 0.1444
250 10 250 24.6 275 22 7 3.80 2.11 6.34 21.6 880.6 72.16 0.1154
250 16 250 40.7 291 26 7 3.50 2.72 8.16 22.2 1007.7 93.37 0.1155
315 7 315 21.8 337 45 7 2.99 1.99 5.97 23.9 1039.6 82.08 0.0917
315 16 315 51.3 366 26 7 3.93 3.05 9.16 24.9 1269.7 114.02 0.0917
400 7 400 27.7 428 45 7 3.36 2.24 6.73 26.9 1320.1 102.23 0.0722
400 13 400 51.9 452 54 7 3.07 3.07 9.21 27.6 1510.3 130.30 0.0723
450 7 450 31.1 481 45 7 3.57 2.38 7.14 28.5 1485.2 111.82 0.0642
450 13 450 58.3 508 54 7 3.26 3.26 9.77 29.3 1699.1 146.58 0.0643
500 7 500 34.6 535 45 7 3.76 2.51 7.52 30.1 1650.2 124.25 0.0578
500 13 500 64.8 565 54 7 3.43 3.43 10.3 30.9 1887.9 162.87 0.0578
560 7 560 38.7 599 45 7 3.98 2.65 7.96 31.8 1848.2 139.16 0.0516
560 13 560 70.9 631 54 19 3.63 2.18 10.9 32.7 2103.4 182.52 0.0516
ACSR / A1/S2A

Code Number

 Steel Ratio Areas No.of
Wires		 Wire Diameter Diameter Linear Mass Rated
Strength		 D.C.
Resistance
Al Steel Total Al Steel Al Steel Core Cond.
% mm2 mm2 mm2 mm mm mm mm kg/km kN Ω/km
630 7 630 43.6 674 45 7 4.22 2.81 8.44 33.8 2079.2 156.55 0.0459
630 13 630 79.8 710 54 19 3.85 2.31 11.6 34.7 2366.3 202.94 0.0459
710 7 710 49.1 759 45 7 4.48 2.99 8.96 35.9 2343.2 176.43 0.0407
710 13 710 89.9 800 54 19 4.09 2.45 12.3 36.8 2666.8 228.71 0.0407
800 4 800 34.6 835 72 7 3.76 2.51 7.52 37.6 2480.2 172.25 0.0361
800 8 800 66.7 867 84 7 3.48 3.48 10.4 38.3 2732.7 214.67 0.0362
800 13 800 101 901 54 19 4.34 2.61 13.0 39.1 3004.9 257.71 0.0362
900 4 900 38.9 939 72 7 3.99 2.66 7.98 39.9 2790.2 193.78 0.0321
900 8 900 75.0 975 84 7 3.69 3.69 11.1 40.6 3074.2 231.75 0.0322
1000 4 1000 43.2 1043 72 7 4.21 2.80 8.41 42.1 3100.3 215.31 0.0289
1120 4 1120 47.3 1167 72 19 4.45 1.78 8.90 44.5 3464.9 241.15 0.0258
1120 8 1120 91.2 1211 84 19 4.12 2.47 12.4 45.3 3811.5 295.94 0.0258
1250 4 1250 52.8 1303 72 19 4.70 1.88 9.40 47.0 3867.1 269.14 0.0231
1250 8 1250 102 1352 84 19 4.35 2.61 13.1 47.9 4253.9 330.29 0.0232
ACSR / A1/S3A

Code Number

 Steel Ratio Areas No.of
Wires		 Wire Diameter Diameter Linear Mass Rated
Strength		 D.C.
Resistance
Al Steel Total Al Steel Al Steel Core Cond.
% mm2 mm2 mm2 mm mm mm mm kg/km kN Ω/km
16 17 16 2.67 18.7 6 1 1.84 1.84 1.84 5.53 64.6 6.83 1.7934
25 17 25 4.17 29.2 6 1 2.30 2.30 2.30 6.91 100.9 10.25 1.1478
40 17 40 6.67 46.7 6 1 2.91 2.91 2.91 8.74 161.5 16.20 0.7174
63 17 63 10.5 73.5 6 1 3.66 3.66 3.66 11.0 254.4 24.15 0.4555
100 17 100 16.7 117 6 1 4.61 4.61 4.61 13.8 403.8 38.33 0.2869
125 6 125 6.94 132 18 1 2.97 2.97 2.97 14.9 397.9 31.04 0.2304
125 16 125 20.4 145 26 7 2.47 1.92 5.77 15.7 503.9 51.39 0.2310
160 6 160 8.89 169 18 1 3.36 3.36 3.36 16.8 509.3 38.67 0.1800
160 16 160 26.1 186 26 7 2.80 2.18 6.53 17.7 644.9 64.99 0.1805
200 6 200 11.l 211 18 1 3.76 3.76 3.76 18.8 636.7 46.89 0.1440
200 16 200 32.6 233 26 7 3.13 2.43 7.30 19.8 806.2 78.93 0.1444
250 10 250 24.6 275 22 7 3.80 2.11 6.34 21.6 880.6 75.60 0.1154
ACSR / A1/S3A

Code Number

 Steel Ratio Areas No.of
Wires		 Wire Diameter Diameter Linear Mass Rated
Strength		 D.C.
Resistance
Al Steel Total Al Steel Al Steel Core Cond.
% mm2 mm2 mm2 mm mm mm mm kg/km kN Ω/km
250 16 250 40.7 291 26 7 3.50 2.72 8.16 22.2 1007.7 98.66 0.1155
315 7 315 21.8 337 45 7 2.99 1.99 5.97 23.9 1039.6 85.13 0.0917
315 16 315 51.3 366 26 7 3.93 3.05 9.16 24.9 1269.7 121.20 0.0917
400 7 400 27.7 428 45 7 3.36 2.24 6.73 26.9 1320.1 106.10 0.0722
400 13 400 51.9 452 54 7 3.07 3.07 9.21 27.6 1510.3 137.56 0.0723
450 7 450 31.1 481 45 7 3.57 2.38 7.14 28.5 1485.2 115.87 0.0642
450 13 450 58.3 508 54 7 3.26 3.26 9.77 29.3 1699.1 154.75 0.0643
500 7 500 34.6 535 45 7 3.76 2.51 7.52 30.1 1650.2 128.74 0.0578
500 13 500 64.8 565 54 7 3.43 3.43 10.3 30.9 1887.9 171.94 0.0578
560 7 560 38.7 599 45 7 3.98 2.65 7.96 31.8 1848.2 144.19 0.0516
560 13 560 70.9 631 54 19 3.63 2.18 10.9 32.7 2103.4 192.45 0.0516
630 7 630 43.6 674 45 7 4.22 2.81 8.44 33.8 2079.2 162.21 0.0459
630 13 630 79.8 710 54 19 3.85 2.31 11.6 34.7 2366.3 213.32 0.0459
710 7 710 49.1 759 45 7 4.48 2.99 8.96 35.9 2343.2 182.81 0.0407
710 13 710 89.9 800 54 19 4.09 2.45 12.3 36.8 2666.8 240.41 0.0407
800 4 800 34.6 835 72 7 3.76 2.51 7.52 37.6 2480.2 176.74 0.0361
800 8 800 66.7 867 84 7 3.48 3.48 10.4 38.3 2732.7 224.00 0.0362
800 13 800 101 901 54 19 4.34 2.61 13.0 39.1 3004.9 270.88 0.0362
900 4 900 38.9 939 72 7 3.99 2.66 7.98 39.9 2790.2 198.83 0.0321
900 8 900 75.0 975 84 7 3.69 3.69 11.1 40.6 3074.2 244.50 0.0322
1000 4 1000 43.2 1043 72 7 4.21 2.80 8.41 42.1 3100.3 220.93 0.0289
1120 4 1120 47.3 1167 72 19 4.48 1.78 8.90 44.5 3464.9 247.77 0.0258
1120 8 1120 91.2 1211 84 19 4.12 2.47 12.4 45.3 3811.5 307.79 0.0258
1250 4 1250 52.8 1303 72 19 4.70 1.88 9.40 47.0 3867.1 276.53 0.0231
1250 8 1250 102 1352 84 19 4.35 2.61 13.1 47.9 4253.9 343.52 0.0232

ACSR Conductor Cable AS/NZS 3607 for Papua New Guinea

ACSR/GZ

Product code

 Strand/wire Cross sectional area Nominal
O.D.
mm		 Approximate
mass
kg/km		 Calculated
minimum    breaking load
kN		 Calculated
final modulus of elasticity
GPa		 Coefficient
of linear
expansion
/°C x 10-6
Alum
No/mm		 Steel
No/mm		 Alum
mm2		 Steel
mm2		 Total
mm2
QUINCE 3/1.75 4/1.75 7.2 9.6 16.8 5.3 96 12.7 136 13.9
RAISIN 3/2.50 4/2.50 14.7 19.6 34.3 7.5 193 24.4 136 13.9
SUPER SULTANA 3/3.00 4/3.00 21.2 28.3 49.5 9 280 35 136 13.9
SULTANA 4/3.00 3/3.00 28.3 21.2 49.5 9 242 28.3 119 15.2
WALNUT 4/3.75 3/3.75 44.2 33.1 77.3 11.3 379 43.9 119 15.2
ALMOND 6/2.50 1/2.50 29.2 4.9 34.4 7.5 119 10.5 83 19.3
APRICOT 6/2.75 1/2.75 35.6 5.9 41.5 8.3 144 12.6 83 19.3
APPLE 6/3.00 1/3.00 42.4 7.1 49.5 9 171 14.9 83 19.3
BANANA 6/3.75 1/3.75 66.3 11 77.3 11.3 268 22.8 83 19.3
CHERRY 6/4.75 7/1.60 106 14.1 120 14.3 404 33.2 80 19.9
GRAPE 30/2.50 7/2.50 147 34.4 182 17.5 677 63.5 88 18.4
LEMON 30/3.00 7/3.00 212 49.5 262 21 973 90.4 88 18.4
LYCHEE 30/3.25 7/3.25 249 58.1 307 22.8 1140 105 88 18.4
LIME 30/3.50 7/3.50 289 67.3 356 24.5 1320 122 88 18.4
MANGO 54/3.00 7/3.00 382 49.5 431 27 1440 119 78 19.9
ORANGE 54/3.25 7/3.25 448 58.1 506 29.3 1690 137 78 19.9
OLIVE 54/3.50 7/3.50 519 67.3 587 31.5 1960 159 78 19.9
PAW PAW 54/3.75 19/2.25 596 75.5 672 33.8 2240 178 77 20
PEACH 54/4.75 19/2.85 957 121 1078 42.8 3600 284 77 20
ACSR/AC

Product code

 Strand/wire Cross sectional area Nominal
O.D.
mm		 Approximate
mass
kg/km		 Calculated
minimum    breaking load
kN		 Calculated
final modulus of elasticity
GPa		 Coefficient
of linear
expansion
/°C x 10-6
Alum
No/mm		 Steel
No/mm		 Alum
mm2		 Steel
mm2		 Total
mm2
SKATING 3/1.75 4/1.75 7.2 9.6 16.8 5.3 83 12.3 119 15.3
SOCCER 3/2.50 4/2.50 14.7 19.6 34.3 7.5 171 24.9 119 15.3
SWIMMING 4/3.00 3/3.00 28.3 21.2 49.5 9 218 28.9 106 16.5
TENNIS 4/3.75 3/3.75 44.2 33.1 77.3 11.3 340 42.6 106 16.5
ANGLING 6/2.50 1/2.50 29.5 4.9 34.4 7.5 113 10.6 79 20.1
ARCHERY 6/3.00 1/3.00 42.4 7.1 49.5 9 163 15.1 79 20.1
BASEBALL 6/3.75 1/3.75 66.3 11 77.3 11.3 254 22.3 79 20.1
BOWLS 6/4.75 7/1.60 106 14.1 120 14.3 385 32.7 76 20.6
CRICKET 30/2.50 7/2.50 147 34.4 182 17.5 636 64.4 82 19.4
DARTS 30/3.00 7/3.00 212 49.5 262 21 913 91.6 82 19.4
DICE 30/3.25 7/3.25 249 58.1 307 22.8 1070 106 82 19.4
DIVING 30/3.50 7/3.50 289 67.3 356 24.5 1240 122 82 19.4
GOLF 54/3.00 7/3.00 382 49.5 431 27 1380 120 75 20.6
GYMNASTICS 54/3.25 7/3.25 448 58.1 506 29.3 1620 139 75 20.6
HURDLES 54/3.50 7/3.50 519 67.3 587 31.5 1880 159 75 20.6
LACROSSE 54/3.75 19/2.25 596 75.5 672 33.8 2150 180 74 20.7
RUGBY 54/4.75 19/2.85 957 121 1078 42.8 3450 288 74 20.7

ACSR Conductor Cable Type AC GOST 839-80 Type Ackp Asx GOST 839-80 for Russia, Ukraine, Azerbaijan, Georgia, Armenia, Uzbekistan, Kazakhstan

Type AC Nominal Corss-section Number of Wires Wire Diameter Calculated Cross-section Overall Diameter D.C. Resistance at 20 Min. Breaking Load Conductor Weight Grease Weight
mm2 mm mm2 mm Ω/km kg/km kg/km
10 7 1,35 10,0 4,05 2,8631 1950 27,4 –
16 7 1,70 15,9 5,10 1,8007 3021 43,0 0,5
25 7 2,13 24,9 6,40 1,1498 4500 68,0 0,5
35 7 2,50 34,3 7,50 0,8347 5913 94,0 0,5
40 7 2,70 40,0 8,09 0,7157 6800 109,4 –
50 7 3,00 49,5 9,00 0,5784 8198 135,0 0,5
63 7 3,39 63,0 10,16 0,4544 10390 172,3 –
70 7 3,55 69,3 10,70 0,4131 11288 189,0 1,0
95 7 4,10 92,4 12,30 0,3114 14784 252,0 1,0
100 19 2,59 100,0 12,94 0,2877 17000 274,9 –
120 19 2,80 117,0 14,00 0,2459 19890 321,0 16
125 19 2,89 125,0 14,47 0,2301 21250 343,6 –
150 19 3,15 148,0 15,80 0,1944 24420 406,0 20
160 19 3,27 160,0 16,37 0,1798 26400 439,8 –
185 19 3,50 182,8 17,50 0,1574 29832 502,0 25
200 19 3,66 200,0 18,30 0,1438 32000 549,7 –
240 19 4,00 238,7 20,00 0,1205 38192 655,0 33
250 19 4,09 250,0 20,47 0,1150 40000 687,1 –
300 37 3,15 288,3 22,10 0,1000 47569 794,0 54
315 37 3,29 315,0 23,05 0,0915 51970 867,5 –
350 37 3,45 345,8 24,20 0,0833 57057 952,0 65
400 37 3,66 389,2 25,60 0,0740 63420 1072,0 73
450 37 3,90 449,1 27,30 0,0642 71856 1206,0 84
500 37 4,15 500,4 29,10 0,0576 80000 1378,0 94
550 61 3,37 544,0 30,30 0,0529 89760 1500,0 117
560 37 4,39 560,0 30,73 0,0531 89600 1542,2 –
600 61 3,50 586,8 31,50 0,0491 95632 1618,0 126
630 61 3,63 630,0 32,64 0,0458 100800 1738,4 –
650 61 3,66 641,7 32,90 0,0450 104575 1771,0 138
700 61 3,80 691,7 34,20 0,0417 112725 1902,0 149
710 61 3,85 710,0 34,65 0,0406 113600 1959,2 –
750 61 3,95 747,4 35,60 0,0386 119584 2062,0 161
Type Ackp Asx Aluminum Section/Steel Core Section Number of Aluminum Wires Aluminum Wire Diameter Number of Steel Wires Steel Wire Diameter Calculated Cross-section Overall Diameter DC Resistance at 20 Min. Breaking Load Conductor Weight Grease Weight
mm2 mm mm mm2 mm Ω/km kg/km kg/km
(10/1,8) 6 1,50 1 1,50 10,6/1,77 4,5 2,7064 4089 42,7 1,0
(16/2,7) 6 1,85 1 1,85 16/2,69 5,6 1,7818 6220 64,9 1,0
(25/4,2) 6 2,30 1 2,30 24,9/4,15 6,9 1,1521 9296 100,3 1,5
(35/6,2) 6 2,80 1 2,80 36,9/6,15 8,4 0,7774 13524 148,0 2,5
40/6,7 6 2,91 1 2,91 40/6,7 8,74 0,7172 14400 161,3
(50/8,0) 6 3,20 1 3,20 48,2/8,04 9,6 0,5951 17112 195,0 3,0
63/10,5 6 3,66 1 3,66 63/10,5 10,97 0,4553 21630 254,0
(70/11) 6 3,80 1 3,80 68/11,3 11,4 0,4218 24130 276,0 4,5
(70/72) 18 2,20 19 2,20 68,4/72,2 15,4 0,4194 96826 755,0 38,0
(95/16) 6 4,50 1 4,50 95,4/15,9 13,5 0,3007 33369 385,0 6,0
(95/141) 24 2,20 37 2,20 91,2/141 19,8 0,3146 180775 1357,0 69,0
100/16,7 6 4,61 1 4,61 100/16,7 13,82 0,2868 34333 403,2
(120/19) 26 2,40 7 1,85 118/18,8 15,2 0,2440 41521 471,0 11,0
(120/27) 30 2,20 7 2,20 114/26,6 15,4 0,2531 49465 528,0 14,0
125/6,9 18 2,97 1 2,97 125/6,9 14,67 0,2304 29167 397,9
125/20,4 26 2,47 7 1,92 125/20,4 15,67 0,2308 45694 503,5
(150/19) 24 2,80 7 1,85 148/18,8 16,8 0,2046 46307 554,0 12
(150/24) 26 2,70 7 2,10 149/24,2 17,1 0,2039 52279 599 14
(150/34) 30 2,50 7 2,50 147/34,3 17,5 0,2061 62643 675 18
160/8,9 18 3,36 1 3,36 160/8,9 16,82 0,1800 36178 509,4
160/26,1 26 2,80 7 2,18 160/26,1 17,73 0,1803 57689 644,5
(185/24) 24 3,15 7 2,10 187/24,2 18,9 0,1540 58075 705 14
(185/29) 26 2,98 7 2,30 181/29 18,8 0,1591 62055 728 16
(185/43) 30 2,80 7 2,80 185/43,1 19,6 0,1559 77767 846 23
(185/128) 54 2,10 37 2,10 187/128 23,1 0,1543 183816 1525 63
200/11,1 18 3,76 1 3,76 200/11,1 18,81 0,1440 44222 636,7
200/32,6 26 3,13 7 2,43 200/32,6 19,82 0,1442 70134 805,6
(205/27) 24 3,30 7 2,20 205/26,6 19,8 0,1407 63740 774 15
(240/32) 24 3,60 7 2,40 244/31,7 21,6 0,1182 75050 921 17
(240/39) 26 3,40 7 2,65 236/38,6 21,6 0,1222 80895 952 22
(240/56) 30 3,20 7 3,20 241/56,3 22,4 0,1197 98253 1106 30
(300/39) 24 4,00 7 2,65 301/38,6 24,0 0,0958 90574 1132 22
(300/48) 26 3,80 7 2,95 295/47,8 24,1 0,0978 100623 1186 27
(300/66) 30 3,50 19 2,10 288,5/65,8 24,5 0,1000 117520 1313 37
(300/67) 30 3,50 7 3,50 288,5/67,3 24,5 0,1000 126270 1323 37
(300/204) 54 2,65 37 2,65 298/204 29,2 0,0968 284579 2428 102
315/21,8 45 2,99 7 1,99 315/21,8 23,83 0,0917 79030 1039,2
315/51,3 26 3,93 7 3,05 315/51,3 24,87 0,0916 106834 1268,9
(330/30) 48 2,98 7 2,30 335/29,1 24,8 0,0861 88848 1152 16
(330/43) 54 2,80 7 2,80 332/43,1 25,2 0,0869 103784 1255 23
400/27,7 45 3,36 7 2,24 400/27,7 26,91 0,0722 98356 1319,7
400/51,9 54 3,07 7 3,07 400/51,9 27,64 0,0722 123037 1509,7
(400/18) 42 3,40 7 1,85 381/18,8 26,0 0,0758 85600 1199 12
(400/22) 76 2,57 7 2,00 394/22 26,6 0,0733 95115 1261 12
(400/51) 54 3,05 7 3,05 394/51,1 27,5 0,0733 120481 1490 28
(400/64) 26 4,37 7 3,40 390/63,5 27,7 0,0741 129183 1572 35
(400/93) 30 4,15 19 2,50 406/93,2 29,1 0,0711 173715 1851 53
450/31,1 45 3,57 7 2,38 450/31,1 28,55 0,0646 107467 1484,6
450/58,3 54 3,26 7 3,26 450/58,3 29,32 0,0642 138417 1698,4
(450/56) 54 3,20 7 3,20 434/56,3 28,8 0,0666 131370 1640 30
500/34,6 45 3,76 7 2,51 500/34,6 30,09 0,0577 119407 1649,6
500/64,8 54 3,43 7 3,43 500/64,8 30,90 0,0578 153796 1887,1
(500/26) 42 3,90 7 2,20 502/26,6 30,00 0,0575 112548 1592,0 15
(500/27) 76 2,84 7 2,20 481/26,6 29,40 0,0600 112188 1537,0 15
(500/64) 54 3,40 7 3,40 490/63,5 30,60 0,0588 148257 1852,0 33
(500/204) 90 2,65 37 2,65 496/204 34,50 0,0580 319609 2979,0 105
(500/336) 54 3,40 61 2,65 490/336 37,50 0,0588 466649 4005,0 168
(550/71) 54 3,60 7 3,60 549/71,2 32,40 0,0526 166164 2076,0 38
560/38,7 45 3,98 7 2,65 560/38,7 31,84 0,0515 133736 1847,5
560/70,9 54 3,63 19 2,18 560/70,9 32,70 0,0516 172592 2102,2
(600/72) 54 3,70 19 2,20 580/72,2 33,20 0,0498 183835 2170,0 39
630/43,6 45 4,22 7 2,81 630/43,6 33,79 0,0458 150453 2078,5
630/79,8 54 3,85 19 2,31 630/79,8 34,69 0,0459 191772 2365,0
(650/79) 96 2,90 19 2,30 634/78,9 34,70 0,0456 200451 2372,0 42
(700/86) 96 3,02 19 2,40 687/85,9 36,20 0,0420 217775 2575,0 46
710/49,1 45 4,48 7 2,99 710/49,1 35,86 0,0406 169559 2342,4
710/89,9 54 4,09 19 2,45 710/89,9 36,82 0,0407 216124 2665,3
(750/93) 96 3,15 19 2,50 748/93,2 37,70 0,0386 234450 2800,0 49
800/34,6 72 3,76 7 2,51 800/34,6 37,61 0,0361 167407 2479,6
800/66,7 84 3,48 7 3,48 800/66,7 38,30 0,0361 205433 2732,3
800/101,3 54 4,34 19 2,61 800/101,3 39,09 0,0361 243520 3003,2
(800/105) 96 3,30 19 2,65 821/105 39,70 0,0352 260073 3092,0 57
900/38,9 72 3,99 7 2,66 900/38,9 39,89 0,0321 188333 2789,5
900/75 84 3,69 7 3,69 900/75 40,63 0,0321 226500 3073,9
1000/43,2 72 4,21 7 2,80 1000/43,2 42,05 0,0289 209259 3099,4
(1000/56) 76 4,10 7 3,20 1003,2/56,3 42,40 0,0288 224047 3210,0 30
1120/47,3 72 4,45 19 1,78 1120/47,3 44,50 0,0258 23428 3463,9
1120/91,2 84 4,12 19 2,47 1120/91,2 45,32 0,0253 283168 3810,7
1250/52,8 72 4,70 19 1,88 1250/52,8 47,02 0,0231 261750 3865,9
1250/101,8 84 4,35 19 2,61 1250/101,8 47,88

ACSR Conductor Cable NF C 34120

CODE SECTION STRANDING OVERALL DIAMETER TENSILE S. STEEL HBAR. RATED STRENGTH ELECTRICAL RESISTANCE 20ºC. CONDUCTOR WEIGHT GREASE WEIGHT
mm2 No. x mm mm kN ohms/km kg/km g/m
Al Steel Total Al Steel Core Total Al Steel Total Outside layer greased Outside layer ungreased
CANNA 37.7 28.27 9.42 37.69 9 x 2.00 3 x 2.00 – 8.3 117.6 1.625 1.02 80 155 75 6 2
CANNA 59.7 37.7 21.99 59.69 12 x 2.00 7 x 2.00 6 10 117.6 3.27 0.766 103 276 173 7 3
CANNA 75.5 47.71 27.83 75.54 12 x 2.25 7 x 2.25 6.75 11.25 117.6 4.115 0.605 128 349 220 10 4
CANNA 116.2 94.25 21.99 116.24 30 x 2.00 7 x 2.00 6 14 117.6 4.315 0.306 258 432 174 13 7
CROCUS 116.12 94.25 21.99 116.24 30 x 2.00 7 x 2.00 6 14 156.8 4.93 0.306 258 432 174 13 7
CANNA 147.1 119.28 27.83 147.11 30 x 2.25 7 x 2.25 6.75 15.75 117.6 5.4 0.243 327 547 220 18 10
CROCUS 147.1 119.28 27.83 147.11 30 x 2.25 7 x 2.25 6.75 15.75 156.8 6.18 0.243 327 547 220 18 10
CANNA 181.6 147.26 34.36 181.62 30 x 2.50 7 x 2.50 7.5 17.5 117.6 6.49 0.197 403 675 272 22 12
CROCUS 181.6 147.26 34.36 181.62 30 x 2.50 7 x 2.50 7.5 17.5 156.8 7.42 0.197 403 675 272 22 12
CANNA 228 184.72 43.1 227.82 30 x 2.80 7 x 2.80 8.4 19.6 117.6 8.05 0.157 506 848 342 26 15
CROCUS 228 184.72 43.1 227.82 30 x 2.80 7 x 2.80 8.4 19.6 156.8 9.21 0.157 506 848 342 26 15
CANNA 288 233.8 54.55 288.35 30 x 3.15 7 x 3.15 9.45 22.05 117.6 9.85 0.124 642 1074 432 33 18
CROCUS 288 233.8 54.55 288.35 30 x 3.15 7 x 3.15 9.45 22.05 156.8 11.38 0.124 642 1074 432 33 18
CROCUS 297 221.67 75.54 297.21 36 x 2.80 19 x 2.25 11.25 22.45 156.8 17.72 0.1305 594 624 1218 35 20
CROCUS 412 325.72 85.95 411.67 32 x 3.60 19 x 2.40 12 26.4 156.8 17.33 0.0898 676 917 1593 50 25
CROCUS 612 507.83 104.7 611.76 66 x 3.13 19 x 2.65 13.25 32.2 156.8 23.15 0.0566 824 1417 2241 70 40
CROCUS 865 717.33 148.06 865.39 66 x 3.72 19 x 3.15 15.75 38.1 156.8 31.9 0.0405 1164 2010 3174 100 55
CROCUS 1185 956.666 227.82 1184.48 54 x 2.8 37  x 2.80 19.7 44.7 156.8 48.05 0.0303 1796 2682 4478 140 100

ACSR Conductor Cable JIS C 3110

Nominal Sectional Area Sectional Area Stranding Overall Diameter Weight Breakign Load Electrical Resistance @20o
AL Steel Total AL Steel
mm^2 mm^2 mm^2 mm^2 No.×mm No.×mm mm Kg/Km KN Ω/Km
25 24.9 4.2 29.1 6/2.30 1/2.30 6.9 101 8.89 1.15
32 31.9 5.3 37.2 6/2.60 1/2.60 7.8 129 11.17 0.899
58 57.7 9.6 67.3 6/3.50 1/3.50 10.5 233 19.40 0.497
95 95.4 15.9 111.3 6/4.50 1/4.50 13.5 385 31.16 0.301
120 124.7 29.1 153.8 30/2.3 7/2.3 16.1 574 54.29 0.233
160 159.3 37.2 196.5 30/2.6 7/2.6 18.2 733 68.40 0.182
200 198.2 46.2 244.4 30/2.9 7/2.9 20.3 912 84.67 0.147
240 241.2 59.3 300.5 30/3.2 7/3.2 22.4 1110 100.06 0.120
330 326.8 52.8 379.6 26/4.0 7/3.1 25.3 1320 107.31 0.0888
410 413.4 67.3 480.7 26/4.5 7/3.5 28.5 1673 136.32 0.0702
520 519.5 67.3 586.8 54/3.5 7/3.5 31.2 1969 152.88 0.0559
610 612.4 79.4 691.8 54/3.8 7/3.8 34.2 2320 179.83 0.0474
810 814.5 56.3 870.8 45/3.8 7/3.2 38.4 2700 181.10 0.0356

[/su_accordion]

PDF Download

PDF Download

Why Choose Us

chanpin-why

Contact Us Immediately

Contact Us

  • 24-hour online service
  • Own factory processing
+86-17838385538

Product Category

hot-sale product

GTACSR & GZTACSR Conductor

HTLS GAP Conductor for Sale
GTACSR/AW & GZTACSR/AW

Read More
Inquiry
TACSR-Thermal-Resistant Aluminum Alloy Conductor Steel Reinforced

Thermal-resistant Aluminum Alloy Conductors Steel Reinforced used in the

35KV 110KV 220KV 330KV 500KV 750KV 1000KV substation project

High Temperature Thermal Resistant Alloy Conductor

Read More
Inquiry
ACSR/AW--Aluminum Conductor Aluminum Clad Steel Reinforced

ACSR/AS or ACSR/AW Conductor
Bare Overhead Transmission Cable
Primary and Secondary Distribution Cable



Read More
Inquiry
ACAR-Aluminum Conductor Alloy Reinforced

Aluminum Conductor, Aluminum Alloy Reinforced, Bare

Bare Overhead Transmission Cable

Primary and Secondary Distribution Cable

Read More
Inquiry
SHUOBANG

Our reputation is based on providing the sophisticated products and thoughtful services to ourcustomers, which makes us unique among cable manufacturers.

Follow Us：

Facebook Linkedin Youtube

products

links

Inquiry

WhatsApp

Email

Inquiry

© Copyright 2023 by Henan Shuobang Cable Co., Ltd. All Rights Reserved.

home

profile

our range

contact us

call us

Contact Us Immediately
