Application

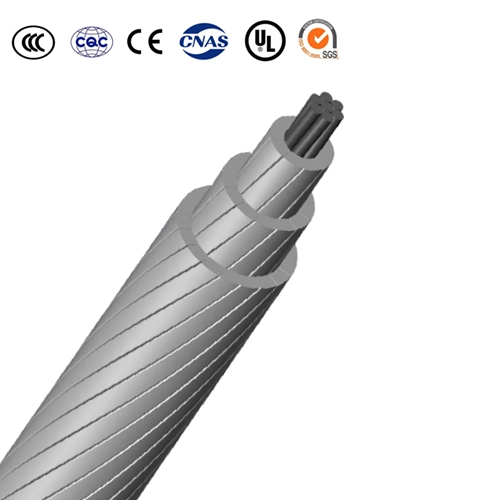

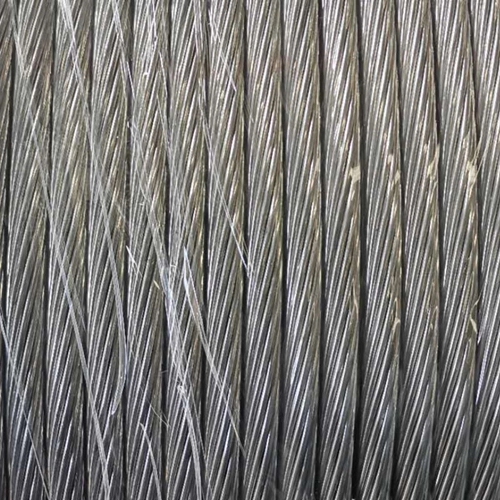

AACSR/AW-Aluminum Alloy Conductor Aluminum Clad Steel Reinforced – Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. AACSR offers optimal strength for line design. Stranded conductor can achieve the required strength while increasing the current capacity.

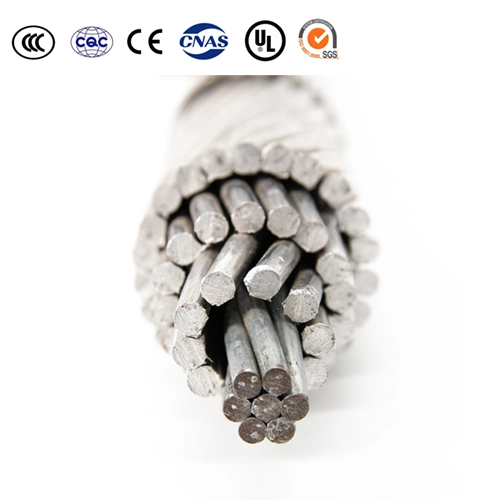

Aluminum alloy wires(1120 or 6201), concentrically stranded over a aluminum clad steel wire.

Specifications

● IEC 61089 Round wire concentric lay overhead electrical stranded conductors
● AS 3607 Conductors – Bare overhead – Aluminium and aluminium alloy-Steel reinforced
● GB/T 1179 Round wire concentric lay overhead electrical stranded conductors

Parameter

Aluminum Alloy Conductor Aluminum Clad Steel Reinforced AACSR/AC/1120 AS 3607

Code	Stranding and Wire Diameter		Nominal Overall Diameter	Cross-sectional Area	Approx. Mass	Break. Load	Equiv. Aluminium Area	D.C. Resistance per km at 20℃
	Aluminium Alloy 1120	Steel	Nominal Overall Diameter	Cross-sectional Area	Approx. Mass	Break. Load	Equiv. Aluminium Area	D.C. Resistance per km at 20℃
	mm	mm	mm	mm²	kg/km	kN	mm²	Ω
Archery 1120	6/3.00	1/3.00	9.0	49.48	163	18.4	42.7	0.662
Baseball 1120	6/3.75	1/3.75	11.3	77.31	254	27.6	66.7	0.424
Bowls 1120	6/4.75	7/1.60	14.3	120.4	385	40.0	106	0.267
Boxing 1120	18/3.50	1/3.50	17.5	182.8	540	51.5	167	0.169
Cricket 1120	30/2.50	7/2.50	17.5	181.6	636	75.2	151	0.188
Darts 1120	30/3.00	7/3.00	21.0	261.5	913	108	217	0.130
Dice 1120	30/3.25	7/3.25	22.8	306.9	1070	127	254	0.111
Diving 1120	30/3.50	7/3.50	24.5	356.0	1240	143	295	0.0961
Golf 1120	54/3.00	7/3.00	27.0	431.2	1380	150	377	0.0750
Gymnastics 1120	54/3.25	7/3.25	29.3	506.0	1620	176	442	0.0639
Hurdles 1120	54/3.50	7/3.50	31.5	586.9	1880	197	513	0.0552

Aluminum Alloy Conductor Aluminum Clad Steel Reinforced AACSR/AC/6201A AS 3607

Code	Stranding and wire Diameter		Nominal overall Diameter	Cross-sectional Area	Approx. Mass	Break. Load	Equiv. Aluminium Area	D.C. Resistance per km at 20℃
	Aluminium Alloy 6201	Steel	Nominal overall Diameter	Cross-sectional Area	Approx. Mass	Break. Load	Equiv. Aluminium Area	D.C. Resistance per km at 20℃
	mm	mm	mm	mm²	kg/km	kN	mm²	Ω
Archery 6201	6/3.00	1/3.00	9.0	49.48	163	20.3	38.4	0.737
Baseball 6201	6/3.75	1/3.75	11.3	77.31	254	31.1	60.0	0.472
Bowls 6201	6/4.75	7/1.60	14.3	120.4	385	46.8	95.0	0.298
Boxing 6201	18/3.50	1/3.50	17.5	182.8	540	60.8	149	0.189
Darts 6201	30/3.00	7/3.00	21.0	261.5	913	118	195	0.145
Diving 6201	30/3.50	7/3.50	24.5	356.0	1240	158	266	0.106

PDF Download

Why Choose Us

Contact Us Immediately

Contact Us

Product Category

hot-sale product

• These can operate upto 150°C with specified strength loss,
• Can carry 50 % to 80 % more current as that of ACSR of the same size.
• For large-crossing sections with reduced wind load of the tower

Used for overhead power transmission lines

Core Wire (INVAR) : Aluminum-clad INVAR Wire/High Tensile Strength Aluminum-clad INVAR Wire

Conductor (STAL) : Super Thermal Resistant Aluminum Alloy Wire used for continuous allowable temperature up to 210°C
