AAAC-All Aluminum Alloy Conductor (1120)

AAAC-All Aluminum Alloy Conductor (1120)

Bare Overhead Conductor
AAAC Bare Aluminum Conductor
AAAC Aerial Conductors
Overhead Line Conductors
Manufacturer & Supplier from China

Application

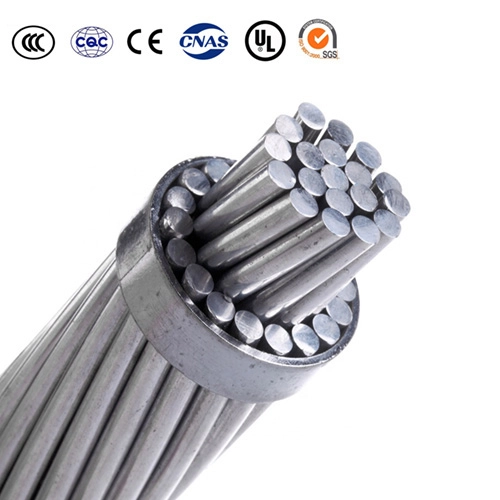

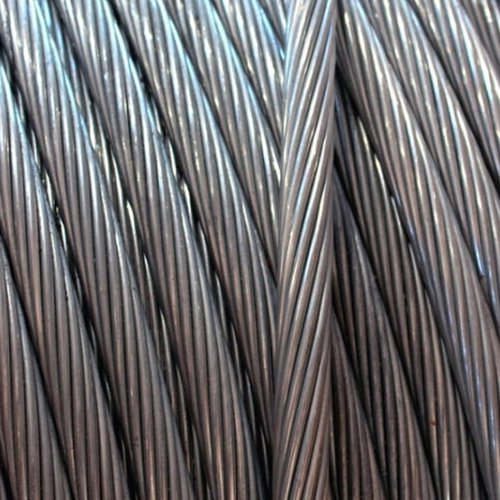

AAAC- The full name: All aluminium alloy conductor. Concentric lay stranded Aluminium Alloy Conductors (AAAC) are made out of high strength Aluminium-Magnesium-Silicon Alloy. AAAC contains a small percentage (about 0.6%) of silicon and magnesium elements. It provides several benefits for overhead lines. AAAC Cable is used as a bare overhead conductor for power transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristics and the strength-to-weight ratio of AAAC is better than both AAC / ACSR.

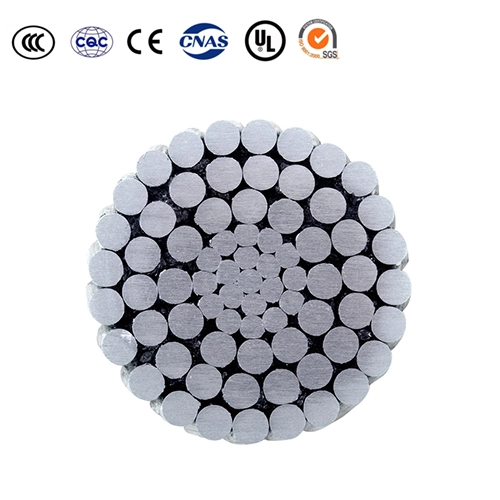

7 and 19 strand construction is suitable for bare overhead reticulation of medium spans, normally at low and medium voltages. 37 and 61 strand construction is suitable for transmission and subtransmission lines where homogeneous construction can reduce line losses and improve corrosion resistance in conductors with similar strength to ACSR types.

Specifications

• IEC 61089 Round Wire Concentric Lay Overhead Electrical Stranded Conductors
• ASTM B 399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors.
• BS EN 50182 Conductors for Overhead Lines-Round Wire Concentric Lay stranded Conductors
• AS 1531 Conductors – Bare Overhead – Aluminum and Aluminum Alloy
• GB/T 1179 Round Wire Concentric Lay Overhead Electrical Stranded Conductors

Parameter

AAAC 1120 AS 1531

Code Name	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20℃
Code Name	No./mm	mm	kg/km	kN	Ω/km
CHLORINE	7/2.50	7.50	94	8.18	0.8637
CHROMIUM	7/2.75	8.25	113	9.91	0.7138
FLUORINE	7/3.00	9.00	135	11.80	0.5998
HELIUM	7/3.75	11.25	211	17.60	0.3839
HYDROGEN	7/4.50	13.50	304	24.30	0.2666
IODINE	7/4.75	14.25	339	27.10	0.2393
–	19/3.19	15.95	417	36.06	0.1964
KRYPTON	19/3.25	16.25	433	37.40	0.1892
–	19/3.45	17.25	488	42.18	0.1679
LUTETIUM	19/3.50	17.50	502	41.70	0.1631
–	19/3.69	18.45	558	46.32	0.1468
NEON	19/3.75	18.80	577	47.80	0.1421
–	19/3.91	19.55	627	52.01	0.1307
–	19/4.12	20.60	696	57.75	0.1177
NITROGEN	37/3.00	21.00	720	62.20	0.1143
–	19/4.32	21.60	765	63.50	0.1071
NOBELIUM	37/3.25	22.80	845	72.80	0.0973
–	19/4.70	23.50	906	72.02	0.0905
–	37/3.37	23.59	909	78.40	0.0906
–	37/3.40	23.80	925	79.78	0.0890
OXYGEN	19/4.75	23.80	925	73.60	0.0886
–	37/3.42	23.94	936	80.72	0.0879
–	37/3.44	24.08	947	81.67	0.0869
–	61/2.72	24.48	978	79.75	0.0845
–	37/3.55	24.85	1009	83.50	0.0816
–	37/3.62	25.34	1049	86.80	0.0785
PHOSPHORUS	37/3.75	26.30	1125	93.10	0.0731
–	37/3.79	26.53	1150	95.17	0.0716
–	61/2.95	26.55	1151	93.81	0.0718
–	37/3.794	26.56	1152	95.37	0.0715
–	37/3.85	26.95	1186	98.20	0.0694
–	37/3.96	27.72	1255	103.90	0.0656
–	61/3.16	28.44	1320	107.64	0.0626
SELENIUM	61/3.25	29.30	1400	114.00	0.0592
–	61/3.26	29.34	1405	114.50	0.0588
–	61/3.30	29.70	1440	117.40	0.0574
–	37/4.28	29.96	1466	121.37	0.0561
–	37/4.38	30.66	1535	127.11	0.0536
–	61/3.49	31.41	1610	131.30	0.0513
–	37/4.49	31.43	1613	133.57	0.0510
SILICON	61/3.50	31.50	1620	127.00	0.0510
–	61/3.56	32.04	1676	131.15	0.0493
–	61/3.64	32.76	1752	137.00	0.0472
–	61/3.71	33.39	1820	142.40	0.0454
SULFUR	61/3.75	33.80	1860	145.50	0.0445
–	61/3.79	34.11	1899	148.64	0.0435
–	61/3.85	34.65	1960	153.40	0.0422
–	61/3.92	35.28	2032	159.00	0.0407
–	61/3.99	35.91	2104	164.74	0.0393
–	61/4.05	36.45	2169	169.70	0.0381
–	61/4.12	37.08	2244	175.70	0.0368
–	61/4.18	37.62	2310	180.80	0.0358
–	61/4.24	38.16	2377	186.04	0.0348
–	61/4.30	38.70	2445	191.34	0.0338
–	61/4.35	39.15	2502	195.80	0.0330
–	61/4.36	39.24	2513	196.71	0.0329
–	61/4.43	39.87	2595	203.10	0.0319
–	61/4.49	40.41	2666	208.62	0.0310
–	61/4.54	40.86	2725	204.40	0.0303
–	61/4.60	41.40	2798	209.84	0.0295

AAAC 6201 AS 1531

Code name	Construction No./Wire diameter	Sectional area	Calculated Equialent Aluminium area	Approx Overall diameter	Approx weight	Calculated Breaking load	Calculated DC resistance At 20℃
Code name	No./mm	mm²	mm²	mm	Kg/Km	KN	Ohm/Km
Diamond	7/2.50	34.4	29.3	7.5	94.3	9.64	0.967
Dolomite	7/2.75	41.6	35.4	8.3	113	11.6	0.799
Emerald	7/3.00	49.5	42.2	9.0	135	13.9	0.671
Garnet	7/3.75	77.3	65.8	11.3	211	21.7	0.430
Jade	7/4.50	111	94.8	13.5	304	31.2	0.298
Jasper	7/4.75	124	106	14.3	339	34.8	0.268
Opal	19/3.25	158	134	16.3	433	44.2	0.212
Patronite	19/3.50	183	155	17.5	503	51.3	0.183
Pearl	19/3.75	210	178	18.8	576	58.8	0.159
Ruby	37/3.00	262	221	21.0	721	73.5	0.128
Ruthenium	37/3.25	307	260	22.8	845	86.1	0.109
Rutile	19/4.75	337	285	23.8	924	94.4	0.0991
Sapphire	37/3.75	409	345	26.3	1120	115	0.0819
Spinel	61/3.25	506	427	29.3	1400	135	0.0662
Tantalum	61/3.50	587	495	31.5	1620	156	0.0572
Topaz	61/3.75	674	568	33.8	1860	179	0.0495

PDF Download

Why Choose Us

Contact Us Immediately

Contact Us

Product Category

hot-sale product

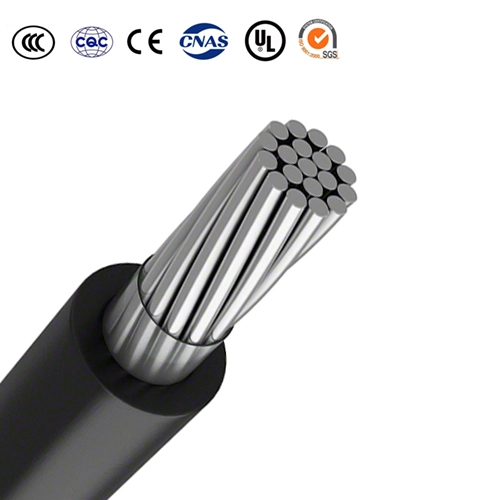

CONDUCTOR: Single Conductor compressed or concentric HD aluminum, aluminum alloy, or ACSR

COVERING: Black, Linear Low-Density Polyethylene (LLDPE)

black extruded Cross-linked Polyethylene (XLPE)

Black Polyethylene (PE)

Medium-Density Polyethylene (MDPE)

High-Density Cross-linked Polyethylene (HDXLPE)

Used for overhead power transmission lines

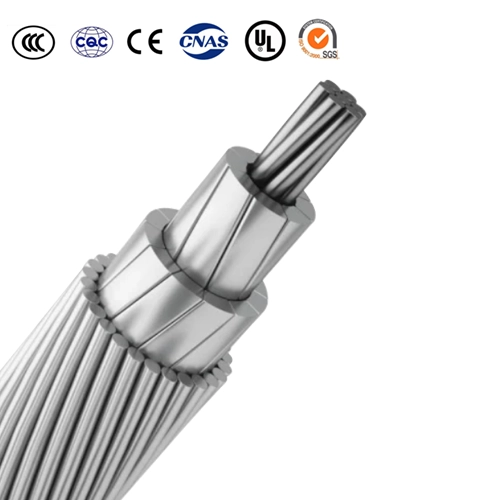

Core Wire (INVAR) : Aluminum-clad INVAR Wire/High Tensile Strength Aluminum-clad INVAR Wire

Conductor (STAL) : Super Thermal Resistant Aluminum Alloy Wire used for continuous allowable temperature up to 210°C

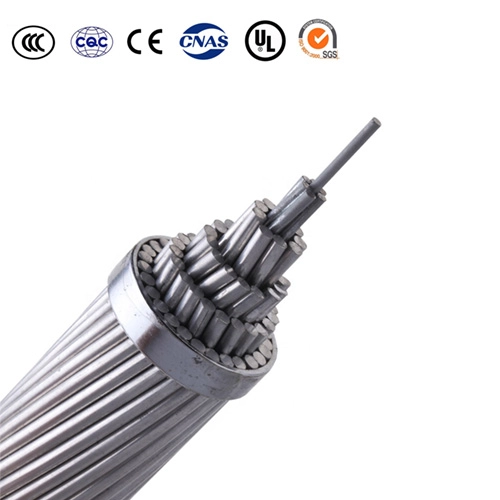

ACSR/AS or ACSR/AW Conductor
