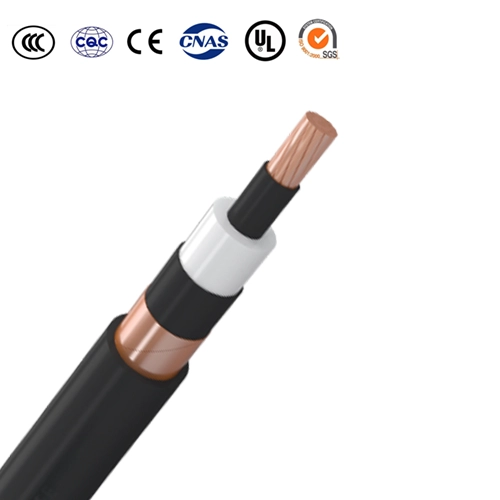

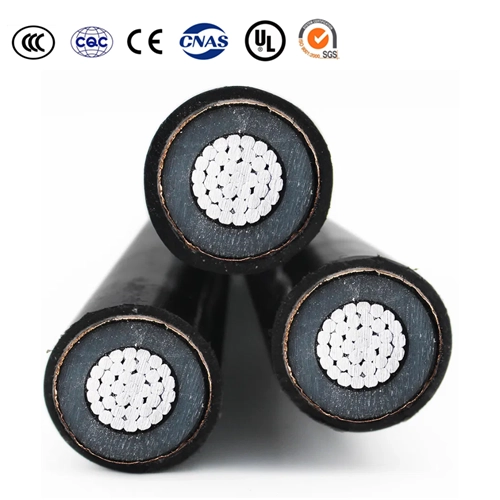

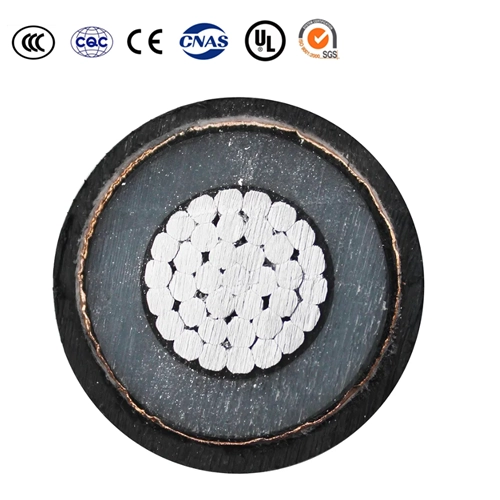

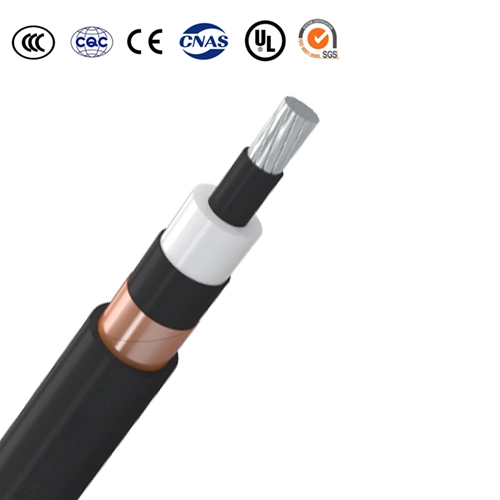

Medium Voltage Power Cables ICEA S-93-639

Conductor: Copper or aluminum, circular compressed or compacted stranded conductors
Conductor screen: Non-metallic,semi-conducting compound
Insulation: 100% and 133% and 173% insulation level, cross-linked polyethylene XLPE or tree retardant cross-linked polyethylene insulation(TRXLPE)
Insulation screen: Non-metallic,semi-conducting compound
Metallic screen: Copper tape
Outer sheath: Sunlight resistant, Polyvinyl chloride PVC or Polyethylene (PE) or Polyolefin (PO)

Application

5-46kV Shielded Power Cable Medium Voltage Power Cables ICEA S-93-639 are used in primary distribution network systems in residential, commercial and industrial areas. They can be used in conduit pipes, underground ducts or directly buried.

Chaircteritics
● Maximum conductor temperature in normal operation: 90˚C.
● Emergency Overload Temperature: Shall not exceed 130˚C.
● Short Circuit Temperature ( 5 seconds maximum duration ): Shall not exceed 250˚C.
● Product manufacturing options:
● Blocking elements against the penetration of water in the metallic part for humid and wet environments.

Specifications

● ASTM B 8 Standard Specification for Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft
● ASTM B 231 Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
● ASTM B 496 Compact Round Concentric-Lay-Stranded Copper Conductors.
● ASTM B 400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors.
● ANSI/NEMA WC 74/ICEA S-93-639 5-46kV Shielded Power Cable for Use in the Transmission and Distribution of Electric Energy
● UL1072 Medium Voltage Power Cable

Parameter

15 kV Power Cable CU(AL)/XLPE/CTS/PVC

Conductor			100% Insulation Level				133% Insulation Level
Size	Area	Nominal Diameter	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
AWG/kcmil	mm²	mm	mm	mm	mm	kg/km	mm	mm	mm	kg/km
Copper Conductor
2	33.6	6.81	4.45	1.65	23.5	821	5.59	2.03	27.0	983
1	42.4	7.59	4.45	1.65	24.3	926	5.59	2.03	27.7	1093
1/0	53.5	8.53	4.45	2.03	26.2	1108	5.59	2.03	28.7	1229
2/0	67.4	9.55	4.45	2.03	27.2	1270	5.59	2.03	29.7	1394
3/0	85	10.7	4.45	2.03	28.3	1470	5.59	2.03	30.8	1598
4/0	107	12.1	4.45	2.03	29.7	1719	5.59	2.03	32.2	1853
250	127	13.2	4.45	2.03	30.8	1935	5.59	2.03	33.3	2073
350	177	15.6	4.45	2.03	33.2	2479	5.59	2.03	35.7	2626
500	253	18.7	4.45	2.03	36.3	3278	5.59	2.03	38.8	3437
750	380	23.1	4.45	2.03	40.7	4583	5.59	2.03	43.2	4758
1000	507	26.9	4.45	2.03	44.9	5881	5.59	2.79	49.2	6266
1250	633	31.8	5.59	2.79	54.1	7631	5.59	2.79	54.1	7631
Aluminum Conductor
2	33.6	6.81	4.45	1.65	23.5	607	5.59	2.03	27.0	770
1	42.4	7.59	4.45	1.65	24.3	657	5.59	2.03	27.7	824
1/0	53.5	8.53	4.45	2.03	26.2	769	5.59	2.03	28.7	889
2/0	67.4	9.55	4.45	2.03	27.2	843	5.59	2.03	29.7	967
3/0	85	10.7	4.45	2.03	28.3	930	5.59	2.03	30.8	1058
4/0	107	12.1	4.45	2.03	29.7	1039	5.59	2.03	32.2	1173
250	127	13.2	4.45	2.03	30.8	1129	5.59	2.03	33.3	1267
350	177	15.6	4.45	2.03	33.2	1351	5.59	2.03	35.7	1499
500	253	18.7	4.45	2.03	36.3	1666	5.59	2.03	38.8	1825
750	380	23.1	4.45	2.03	40.7	2167	5.59	2.03	43.2	2342
1000	507	26.9	4.45	2.03	44.9	2669	5.59	2.79	49.2	3054
1250	633	31.8	5.59	2.79	54.1	3612	5.59	2.79	54.1	3612

25 kV Power Cable CU(AL)/XLPE/CTS/PVC

Conductor			100% Insulation Level				133% Insulation Level
Size	Area	Nominal Diameter	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
AWG/kcmil	mm²	mm	mm	mm	mm	kg/km	mm	mm	mm	kg/km
Copper Conductor
1	42.4	7.59	6.60	2.03	29.7	1191	8.13	2.03	33.1	1372
1/0	53.5	8.53	6.60	2.03	30.7	1329	8.13	2.03	34.1	1516
2/0	67.4	9.55	6.60	2.03	31.7	1497	8.13	2.03	35.1	1689
3/0	85	10.7	6.60	2.03	32.8	1705	8.13	2.03	36.2	1902
4/0	107	12.1	6.60	2.03	34.2	1964	8.13	2.03	37.6	2168
250	127	13.2	6.60	2.03	35.3	2187	8.13	2.03	38.7	2397
350	177	15.6	6.60	2.03	37.7	2747	8.13	2.03	41.1	2968
500	253	18.7	6.60	2.03	40.8	3566	8.13	2.03	44.2	3803
750	380	23.1	6.60	2.03	45.2	4901	8.13	2.79	50.4	5358
1000	507	26.9	6.60	2.79	51.2	6428	8.13	2.79	54.6	6721
1250	633	31.8	6.60	2.79	56.1	7808	8.13	2.79	59.5	8125
Aluminum Conductor
1	42.4	7.59	6.60	2.03	29.7	921	8.13	2.03	33.1	1103
1/0	53.5	8.53	6.60	2.03	30.7	990	8.13	2.03	34.1	1176
2/0	67.4	9.55	6.60	2.03	31.7	1070	8.13	2.03	35.1	1262
3/0	85	10.7	6.60	2.03	32.8	1165	8.13	2.03	36.2	1362
4/0	107	12.1	6.60	2.03	34.2	1283	8.13	2.03	37.6	1487
250	127	13.2	6.60	2.03	35.3	1381	8.13	2.03	38.7	1591
350	177	15.6	6.60	2.03	37.7	1620	8.13	2.03	41.1	1841
500	253	18.7	6.60	2.03	40.8	1954	8.13	2.03	44.2	2191
750	380	23.1	6.60	2.03	45.2	2485	8.13	2.79	50.4	2942
1000	507	26.9	6.60	2.79	51.2	3216	8.13	2.79	54.6	3509
1250	633	31.8	6.60	2.79	56.1	3789	8.13	2.79	59.5	4106

35 kV Power Cable CU(AL)/XLPE/CTS/PVC

Conductor			100% Insulation Level				133% Insulation Level
Size	Area	Nominal Diameter	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
AWG/kcmil	mm²	mm	mm	mm	mm	kg/km	mm	mm	mm	kg/km
Copper Conductor
1/0	53.5	8.53	8.76	2.03	35.7	1610	10.67	2.03	39.2	1831
2/0	67.4	9.55	8.76	2.03	36.7	1786	10.67	2.03	40.2	2012
3/0	85	10.7	8.76	2.03	37.8	2002	10.67	2.03	41.4	2234
4/0	107	12.1	8.76	2.03	39.2	2271	10.67	2.03	42.8	2510
250	127	13.2	8.76	2.03	40.3	2503	10.67	2.03	43.9	2748
350	177	15.6	8.76	2.03	42.7	3080	10.67	2.03	46.3	3338
500	253	18.7	8.76	2.03	45.8	3922	10.67	2.79	51.2	4398
750	380	23.1	8.76	2.79	52.0	5495	10.67	2.79	55.6	5805
1000	507	26.9	8.76	2.79	56.2	6868	10.67	2.79	59.7	7200
1250	633	31.8	8.76	2.79	61.1	8283	10.67	2.79	64.6	8641
Aluminum Conductor
1/0	53.5	8.53	8.76	2.03	35.7	1270	10.67	2.03	39.2	1491
2/0	67.4	9.55	8.76	2.03	36.7	1359	10.67	2.03	40.2	1585
3/0	85	10.7	8.76	2.03	37.8	1462	10.67	2.03	41.4	1694
4/0	107	12.1	8.76	2.03	39.2	1591	10.67	2.03	42.8	1830
250	127	13.2	8.76	2.03	40.3	1697	10.67	2.03	43.9	1942
350	177	15.6	8.76	2.03	42.7	1953	10.67	2.03	46.3	2210
500	253	18.7	8.76	2.03	45.8	2310	10.67	2.79	51.2	2786
750	380	23.1	8.76	2.79	52.0	3079	10.67	2.79	55.6	3389
1000	507	26.9	8.76	2.79	56.2	3656	10.67	2.79	59.7	3988
1250	633	31.8	8.76	2.79	61.1	4264	10.67	2.79	64.6	4622

PDF Download

Why Choose Us

Contact Us Immediately

Contact Us

Product Category

hot-sale product

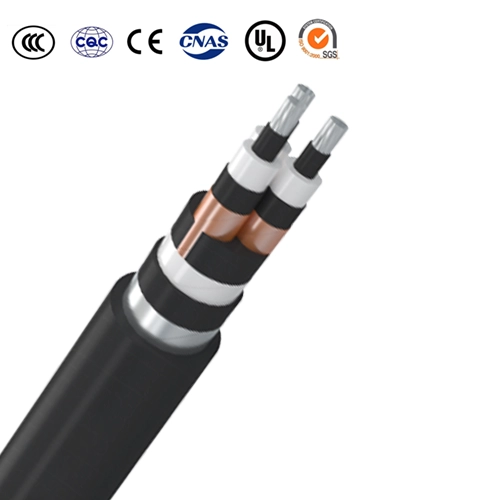

Conductor: Class 2 stranded copper or Class 1 solid /Class 2 stranded aluminium
