100% 133% Insulation Level Medium Voltage Power Cables ICEA S-94-649

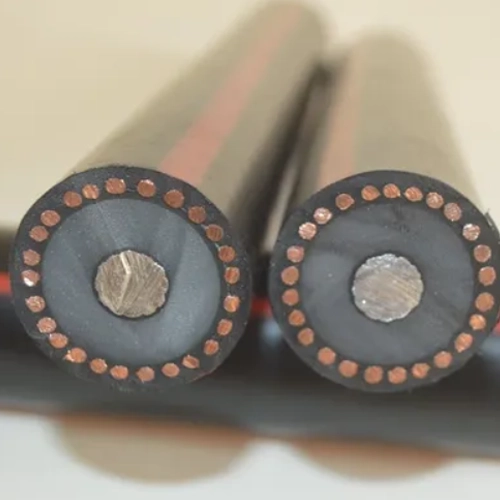

Medium Voltage Power Cables ICEA S-94-649-2

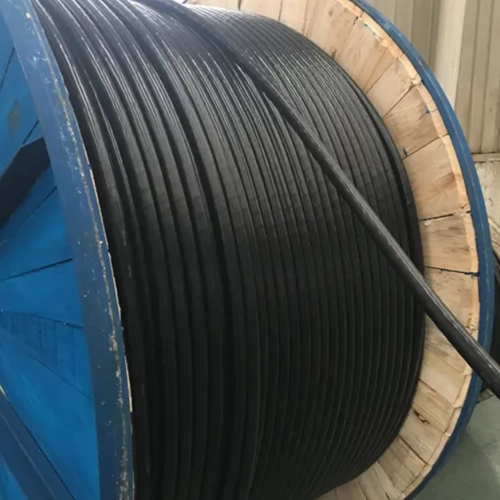

Medium Voltage Power Cables ICEA S-94-649-3

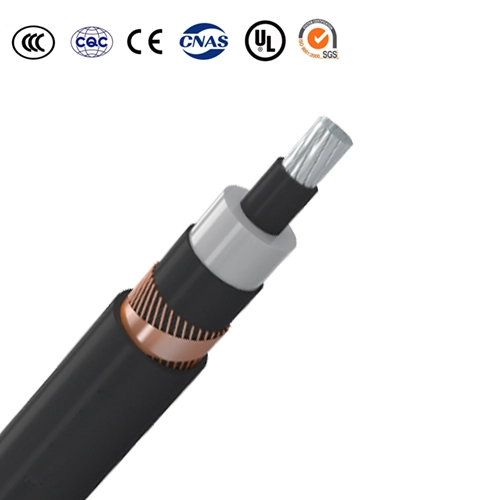

100% 133% Insulation Level Medium Voltage Power Cables ICEA S-94-649

Conductor: Copper or aluminum, circular compressed or compacted stranded conductors
Conductor screen: Non-metallic,semi-conducting compound
Insulation: 100% and 133% and 173% insulation level, cross-linked polyethylene XLPE or tree retardant cross-linked polyethylene insulation(TRXLPE)
Insulation screen:Non-metallic,semi-conducting compound
Metallic screen: Copper tape
Outer sheath: Sunlight resistant, Polyvinyl chloride PVC or Polyethylene (PE) or Polyolefin (PO)

Application

These 100% 133% Insulation Level Medium Voltage Power Cables ICEA S-94-649 cables are used in primary distribution network systems in residential, commercial and industrial areas. They can be used in conduit pipes, underground ducts or directly buried.

Chaircteritics
● Maximum conductor temperature in normal operation: 90˚C.
● Emergency Overload Temperature: Shall not exceed 130˚C.
● Short Circuit Temperature ( 5 seconds maximum duration ): Shall not exceed 250˚C.
● Product manufacturing options:
● Blocking elements against the penetration of water in the metallic part for humid and wet environments.

Specifications

● ASTM B 8 Standard Specification for Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft
● ASTM B 231 Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
● ASTM B 496 Compact Round Concentric-Lay-Stranded Copper Conductors.
● ASTM B 400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors.
● ANSI/ICEA S-94-649 Concentric Neutral Cables Rated 5 Through 46 kV

Parameter

15 kV Power Cable CU(AL)/XLPE/CWS/PVC Full Neutral

Conductor			Full Neutral		100% Insulation Level				133% Insulation Level
Size	Area	Nominal Diameter	No. of wires	Size	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
AWG/kcmil	mm²	mm		AWG	mm	mm	mm	kg/km	mm	mm	mm	kg/km
Copper Conductor
2	33.6	6.81	16	14	4.45	2.03	27.6	1143	5.59	2.03	30.1	1248
1	42.4	7.59	13	12	4.45	2.03	29.2	1345	5.59	2.03	31.8	1453
1/0	53.5	8.53	16	12	4.45	2.03	30.2	1567	5.59	2.03	32.7	1679
2/0	67.4	9.55	13	10	4.45	2.03	32.3	1883	5.59	2.03	34.8	1998
3/0	85	10.7	16	10	4.45	2.03	33.5	2229	5.59	2.03	36.0	2349
4/0	107	12.1	20	10	4.45	2.03	34.8	2668	5.59	2.03	37.3	2793
250	127	13.2	25	10	4.45	2.03	35.9	3128	5.59	2.03	38.4	3256
Aluminum Conductor
2	33.6	6.81	10	14	4.45	2.03	27.6	812	5.59	2.03	30.1	917
1	42.4	7.59	13	14	4.45	2.03	28.4	919	5.59	2.03	30.9	1027
1/0	53.5	8.53	16	14	4.45	2.03	29.3	1036	5.59	2.03	31.8	1148
2/0	67.4	9.55	13	12	4.45	2.03	31.2	1204	5.59	2.03	33.7	1319
3/0	85	10.7	16	12	4.45	2.03	32.3	1380	5.59	2.03	34.9	1500
4/0	107	12.1	13	10	4.45	2.03	34.8	1642	5.59	2.03	37.3	1767
250	127	13.2	16	10	4.45	2.03	35.9	1877	5.59	2.03	38.4	2006
350	177	15.6	16	9	4.45	2.03	39.0	2304	5.59	2.03	42.1	2482

25 kV Power Cable CU(AL)/XLPE/CWS/PVC Full Neutral

Conductor			Full Neutral		100% Insulation Level				133% Insulation Level
Size	Area	Nominal Diameter	No. of wires	Size	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
AWG/kcmil	mm²	mm		AWG	mm	mm	mm	kg/km	mm	mm	mm	kg/km
Copper Conductor
1	42.4	7.59	13	12	6.60	2.03	33.7	1544	–	–	–	–
1/0	53.5	8.53	16	12	6.60	2.03	34.7	1772	8.13	2.03	38.3	1958
2/0	67.4	9.55	13	10	6.60	2.03	36.8	2094	8.13	2.03	41.0	2325
3/0	85	10.7	16	10	6.60	2.03	38.0	2449	8.13	2.03	42.2	2687
4/0	107	12.1	20	10	6.60	2.03	39.3	2897	8.13	2.03	43.5	3144
250	127	13.2	25	10	6.60	2.03	41.0	3403	8.13	2.03	44.6	3617
Aluminum Conductor
1	42.4	7.59	13	14	6.60	2.03	32.9	1117
1/0	53.5	8.53	16	14	6.60	2.03	33.8	1241	8.13	2.03	37.4	1427
2/0	67.4	9.55	13	12	6.60	2.03	35.7	1416	8.13	2.03	39.9	1646
3/0	85	10.7	16	12	6.60	2.03	36.8	1599	8.13	2.03	41.0	1837
4/0	107	12.1	13	10	6.60	2.03	39.3	1870	8.13	2.03	43.5	2117
250	127	13.2	16	10	6.60	2.03	41.0	2152	8.13	2.03	44.6	2366
350	177	15.6	16	9	6.60	2.03	44.0	2598	8.13	2.79	49.4	3020

35 kV Power Cable CU(AL)/XLPE/CWS/PVC Full Neutral

Conductor			Full Neutral		100% Insulation Level				133% Insulation Level
Size	Area	Nominal Diameter	No. of wires	Size	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
AWG/kcmil	mm²	mm		AWG	mm	mm	mm	kg/km	mm	mm	mm	kg/km
Copper Conductor
1/0	53.5	8.53	16	12	8.76	2.03	40.3	2075	10.67	2.03	43.8	2286
2/0	67.4	9.55	13	10	8.76	2.03	42.4	2405	10.67	2.03	45.9	2623
3/0	85	10.7	16	10	8.76	2.03	43.6	2770	10.67	2.79	48.9	3187
4/0	107	12.1	20	10	8.76	2.03	44.9	3229	10.67	2.79	50.2	3658
250	127	13.2	25	10	8.76	2.03	46.0	3705	10.67	2.79	51.3	4144
Aluminum Conductor
1/0	53.5	8.53	16	14	8.76	2.03	39.4	1543	10.67	2.03	43.0	1755
2/0	67.4	9.55	13	12	8.76	2.03	41.3	1727	10.67	2.03	44.8	1944
3/0	85	10.7	16	12	8.76	2.03	42.4	1920	10.67	2.03	46.0	2143
4/0	107	12.1	13	10	8.76	2.03	44.9	2203	10.67	2.79	50.2	2631
250	127	13.2	16	10	8.76	2.03	46.0	2454	10.67	2.79	51.3	2893
350	177	15.6	16	9	8.76	2.79	50.8	3119	10.67	2.79	54.4	3381

15 kV Power Cable CU(AL)/XLPE/CWS/PVC One-third Neutral

Conductor			One-third Neutral		100% Insulation Level				133% Insulation Level
Size	Area	Nominal Diameter	No. of wires	Size	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
AWG/kcmil	mm²	mm		AWG	mm	mm	mm	kg/km	mm	mm	mm	kg/km
Copper Conductor
2	33.6	6.81	9	16	4.45	2.03	26.9	933	5.59	2.03	29.4	1038
1	42.4	7.59	11	16	4.45	2.03	27.7	1062	5.59	2.03	30.2	1170
1/0	53.5	8.53	14	16	4.45	2.03	28.7	1228	5.59	2.03	31.2	1340
2/0	67.4	9.55	18	16	4.45	2.03	29.7	1435	5.59	2.03	32.2	1550
3/0	85	10.7	22	16	4.45	2.03	30.9	1682	5.59	2.03	33.4	1802
4/0	107	12.1	18	14	4.45	2.03	32.9	2013	5.59	2.03	35.4	2138
250	127	13.2	21	14	4.45	2.03	34.0	2284	5.59	2.03	36.5	2413
350	177	15.6	18	12	4.45	2.03	37.3	2977	5.59	2.03	40.4	3155
500	253	18.7	26	12	4.45	2.03	40.9	4049	5.59	2.03	43.4	4202
750	380	23.1	25	10	4.45	2.79	48.1	5971	5.59	2.79	50.6	6149
1000	507	26.9	32	10	4.45	2.79	52.4	7624	5.59	2.79	55.7	7900
Aluminum Conductor
2	33.6	6.81	6	14	4.45	2.03	27.6	734	5.59	2.03	30.1	839
1	42.4	7.59	6	14	4.45	2.03	28.4	782	5.59	2.03	30.9	890
1/0	53.5	8.53	6	14	4.45	2.03	29.3	841	5.59	2.03	31.8	952
2/0	67.4	9.55	7	14	4.45	2.03	30.4	930	5.59	2.03	32.9	1045
3/0	85	10.7	9	14	4.45	2.03	31.5	1053	5.59	2.03	34.0	1172
4/0	107	12.1	11	14	4.45	2.03	32.9	1195	5.59	2.03	35.4	1320
250	127	13.2	13	14	4.45	2.03	34.0	1321	5.59	2.03	36.5	1450
350	177	15.6	18	14	4.45	2.03	36.4	1633	5.59	2.03	39.5	1810
500	253	18.7	16	12	4.45	2.03	40.9	2128	5.59	2.03	43.4	2280
750	380	23.1	24	12	4.45	2.79	47.1	3051	5.59	2.79	49.6	3230
1000	507	26.9	20	10	4.45	2.79	52.4	3819	5.59	2.79	55.7	4095

25 kV Power Cable CU(AL)/XLPE/CWS/PVC One-third Neutral

Conductor			One-third Neutral		100% Insulation Level				133% Insulation Level
Size	Area	Nominal Diameter	No. of wires	Size	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
AWG/kcmil	mm²	mm		AWG	mm	mm	mm	kg/km	mm	mm	mm	kg/km
Copper Conductor
1	42.4	7.59	11	16	6.60	2.03	31.9	1242	–	–	–	–
1/0	53.5	8.53	14	16	6.60	2.03	33.2	1433	8.13	2.03	36.8	1619
2/0	67.4	9.55	18	16	6.60	2.03	34.2	1646	8.13	2.03	38.4	1877
3/0	85	10.7	22	16	6.60	2.03	35.4	1902	8.13	2.03	39.6	2140
4/0	107	12.1	18	14	6.60	2.03	37.4	2241	8.13	2.03	41.6	2488
250	127	13.2	21	14	6.60	2.03	39.1	2559	8.13	2.03	42.7	2773
350	177	15.6	18	12	6.60	2.03	42.4	3271	8.13	2.79	47.8	3687
500	253	18.7	26	12	6.60	2.03	45.4	4326	8.13	2.79	50.8	4771
750	380	23.1	25	10	6.60	2.79	52.6	6295	8.13	2.79	57.0	6660
1000	507	26.9	32	10	6.60	2.79	57.7	8061	8.13	2.79	61.3	8371
Aluminum Conductor
1	42.4	7.59	6	14	6.60	2.03	32.9	980
1/0	53.5	8.53	6	14	6.60	2.03	33.8	1045	8.13	2.03	37.4	1231
2/0	67.4	9.55	7	14	6.60	2.03	34.8	1142	8.13	2.03	39.0	1372
3/0	85	10.7	9	14	6.60	2.03	36.0	1272	8.13	2.03	40.2	1509
4/0	107	12.1	11	14	6.60	2.03	37.4	1424	8.13	2.03	41.6	1671
250	127	13.2	13	14	6.60	2.03	39.1	1596	8.13	2.03	42.7	1811
350	177	15.6	18	14	6.60	2.03	41.5	1926	8.13	2.03	45.1	2154
500	253	18.7	16	12	6.60	2.03	45.4	2405	8.13	2.79	50.8	2849
750	380	23.1	24	12	6.60	2.79	51.6	3375	8.13	2.79	56.1	3741
1000	507	26.9	20	10	6.60	2.79	57.7	4256	8.13	2.79	61.3	4566

35 kV Power Cable CU(AL)/XLPE/CWS/PVC One-third Neutral

Conductor			One-third Neutral		100% Insulation Level				133% Insulation Level
Size	Area	Nominal Diameter	No. of wires	Size	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Insulation Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
AWG/kcmil	mm²	mm		AWG	mm	mm	mm	kg/km	mm	mm	mm	kg/km
Copper Conductor
1/0	53.5	8.53	14	16	8.76	2.03	38.7	1736	10.67	2.03	42.3	1947
2/0	67.4	9.55	18	16	8.76	2.03	39.8	1958	10.67	2.03	43.3	2175
3/0	85	10.7	22	16	8.76	2.03	41.0	2223	10.67	2.03	44.5	2447
4/0	107	12.1	18	14	8.76	2.03	43.0	2574	10.67	2.79	48.3	2995
250	127	13.2	21	14	8.76	2.03	44.1	2861	10.67	2.79	49.4	3292
350	177	15.6	18	12	8.76	2.79	49.2	3786	10.67	2.79	52.8	4049
500	253	18.7	26	12	8.76	2.79	52.2	4876	10.67	2.79	56.6	5239
750	380	23.1	25	10	8.76	2.79	58.4	6776	10.67	2.79	62.0	7082
1000	507	26.9	32	10	8.76	2.79	62.7	8496	10.67	2.79	66.2	8825
Aluminum Conductor
1/0	53.5	8.53	6	14	8.76	2.03	39.4	1348	10.67	2.03	43.0	1559
2/0	67.4	9.55	7	14	8.76	2.03	40.4	1453	10.67	2.03	44.0	1670
3/0	85	10.7	9	14	8.76	2.03	41.6	1592	10.67	2.03	45.1	1815
4/0	107	12.1	11	14	8.76	2.03	43.0	1756	10.67	2.79	48.3	2177
250	127	13.2	13	14	8.76	2.03	44.1	1899	10.67	2.79	49.4	2330
350	177	15.6	18	14	8.76	2.79	48.3	2437	10.67	2.79	51.8	2699
500	253	18.7	16	12	8.76	2.79	52.2	2954	10.67	2.79	56.6	3317
750	380	23.1	24	12	8.76	2.79	57.5	3857	10.67	2.79	61.0	4164
1000	507	26.9	20	10	8.76	2.79	62.7	4691	10.67	2.79	66.2	5020

PDF Download

Why Choose Us

Contact Us Immediately

Contact Us

Product Category

hot-sale product

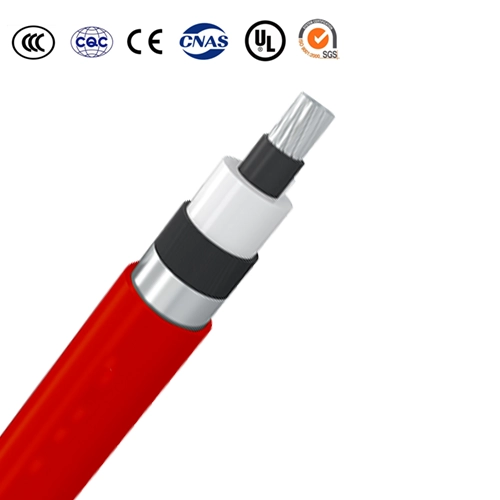

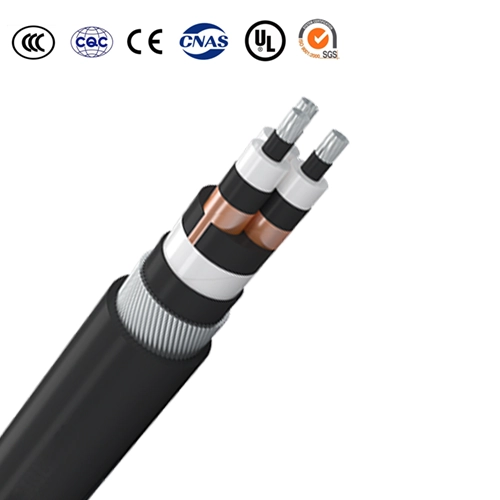

6/10KV 12/20KV 18/30KV
Conductor: Сu and Al stranded compacted, according to IEC 60228 class 2 or VDE 0295 class 2
Inner Layer: Semi-conductive material
Insulation: XLPE (Cross-Linked Polyethylene)
Outer Layer: Semi-conductive material and tape
Screen: Copper wires and copper tape
Outer Sheath: PVC (Polyvinyl Chloride) or PE
Sheath Colour: Red

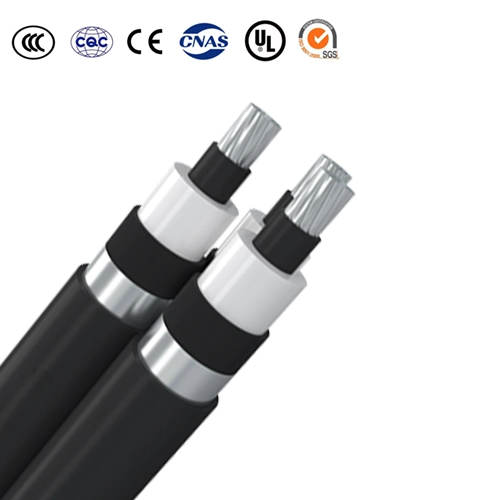

Conductor：Aluminum or copper, class 2,circular compacted conductors
Conductor screen: Non-metallic,semi-conducting compound
Insulation:Cross-linked polyethylene(XLPE)
Insulation screen:Non-metallic,semi-conducting compound,extruded strippable grooved elastomer
Longitudinal water tightness: Swelling powder
Metallic screen: Aluminium plastic tape (AL/PET)
Outer sheath: Polyethylene (PE)

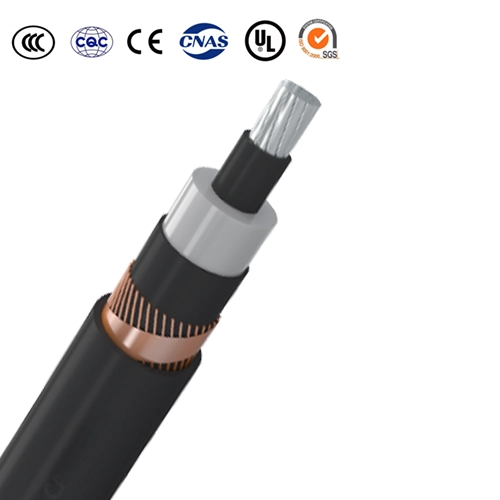

CU(AL)/XLPE/PO
