Airfield Lighting Cables are used to secure airport equipment such as aircraft taxiways, runway navigational aids, and obstruction lights, and can be directly buried or ducted.
About ensuring the safe operation and landing of airports, shuobang Airport Lighting Cables has developed a range of solutions that are resistant to problems such as water, UV rays, oil, and grease, and that ensure the continuous and stable operation of airport runways, taxiways, and airport building lighting systems. In addition, our airport cable solutions cover a full range of services, from cable design by application-specific requirements and national standards to on-site international logistics.
Description of Airfield Lighting Cable

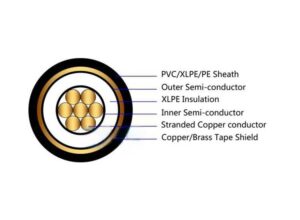

FAA L-824 Type C Sheathed 5kV Airfield Lighting Cable
Conductor: Stranded bare copper conductor, IEC 60228 class 2
Inner Semi-Conductor: Extruded semi-conducting compound
Insulation: XLPE
Outer Semi-Conductor: Extruded semi-conducting compound
Shield: Two copper tapes
Outer Sheath: PVC/HDPE
FAA L-824 Type C Sheathed 5kV Airport Lighting Cable is used to connect transformers and current regulators in series circuits for airport lighting systems and is suitable for stationary applications such as aircraft taxiways, runway navigational aids, and obstruction lights, and can be buried or ducted.

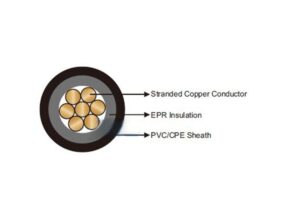

FAA L-824 Type B Unshielded 5kV Airport Lighting Cable
Conductor: Stranded bare or tinned copper conductor
Insulation: EPR
Outer Semi-Conductor: Extruded semi-conducting compound.
Out Sheath: HDPE/PVC
Voltage Uo/U (Um): 5kV
Operating Temperature: -40℃~+85℃
Minimum bending radius: 5×OD
Halogen-free: Yes
Oil Resistant: Yes
Standard: IEC 60502, IEC 332-3, IEC 60228, FAA AC 150/5345-7E
FAA L-824 Type B Unshielded 5kV Airport Lighting Cable is used to connect transformers and current regulators in series circuits for airport lighting systems and is suitable for stationary applications such as taxiways, runway aids, and obstruction lights, and can be buried or ducted.
Standards: FAA L-824 Type B, ICEA S-96-659/NEMA WC71

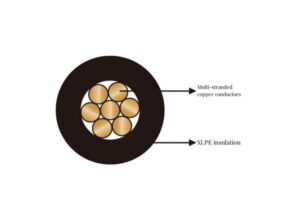

FAA L-824 Type C 600V Airfield Lighting Cable
Conductor: ASTM B multi-strand bare copper conductor.
Insulation: XLPE.
Sheath (for multi-core cables only): PVC.
Voltage Uo/U (Um): 60kV
Maximum conductor temperature: 90℃
Short circuit temperature: 250℃
Operating Temperature: -40℃~+90℃
Minimum bending radius: 5×OD
FAA L-824 Type C 600V airfield lighting cable is suitable for airport lighting and control circuits and is suitable for both conduit and direct burial laying.
Standards: FAA L-824 Type C, ICEA S-95-658/NEMA WC71

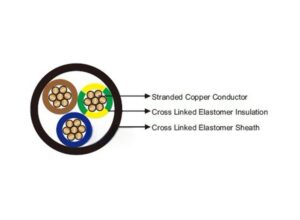

H07RN-F Airport Lighting Cable
Conductor: Stranded bare copper
Insulation: Special cross-linked elastomer / EPR
Sheah: Special cross-linked elastomer / EPR
Operating Voltage: U0 450/750V
Maximum Conductor Temperature: 85℃
Short Circuit Temperature: 200℃
Operation Temperature: -20℃ to + 85℃
Minimum Bending Radius: Static: 4×OD; Dynamic: 8×OD
H07RN-F airfield ground lighting cable for connection between transformers and airport lighting equipment.
Standards: NF C 32-102-4, HD 22-4

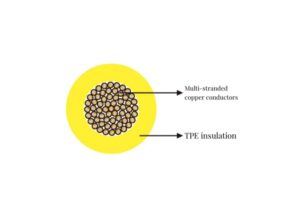

400Hz Single-Core Airport Cable
Conductor: VDE 0295/IEC 60228 standard Class 5 multi-strand copper conductor.
Insulation: TPE.
Voltage Uo/U (Um): 600V
Maximum Conductor Temperature: -40°C~+90°C
Short circuit temperature Static: 6×OD; Dynamic: 7×OD
Halogen-free: Yes
Abrasion resistant: Yes
400Hz single-core airport cables are suitable for 400Hz systems for aircraft power, computer systems, and radar stations and are suitable for laying underground, underwater, outdoors, indoors, and in cable ducts.
Standard: VDE
